F.3 QUICK ACCESS MENU
F.3.1 DESCRIPTION OF THE MENU
To perform usual operations very easily, a Quick Access Menu (Q.A.M.) can be remote controlled directly
from the Arm, at any moment on the screen of the computer and on the Wrist Display of a 7-axis arm
without any specific movement or going back to the computer.
F.3.2 ACTIVATION / NAVIGATION

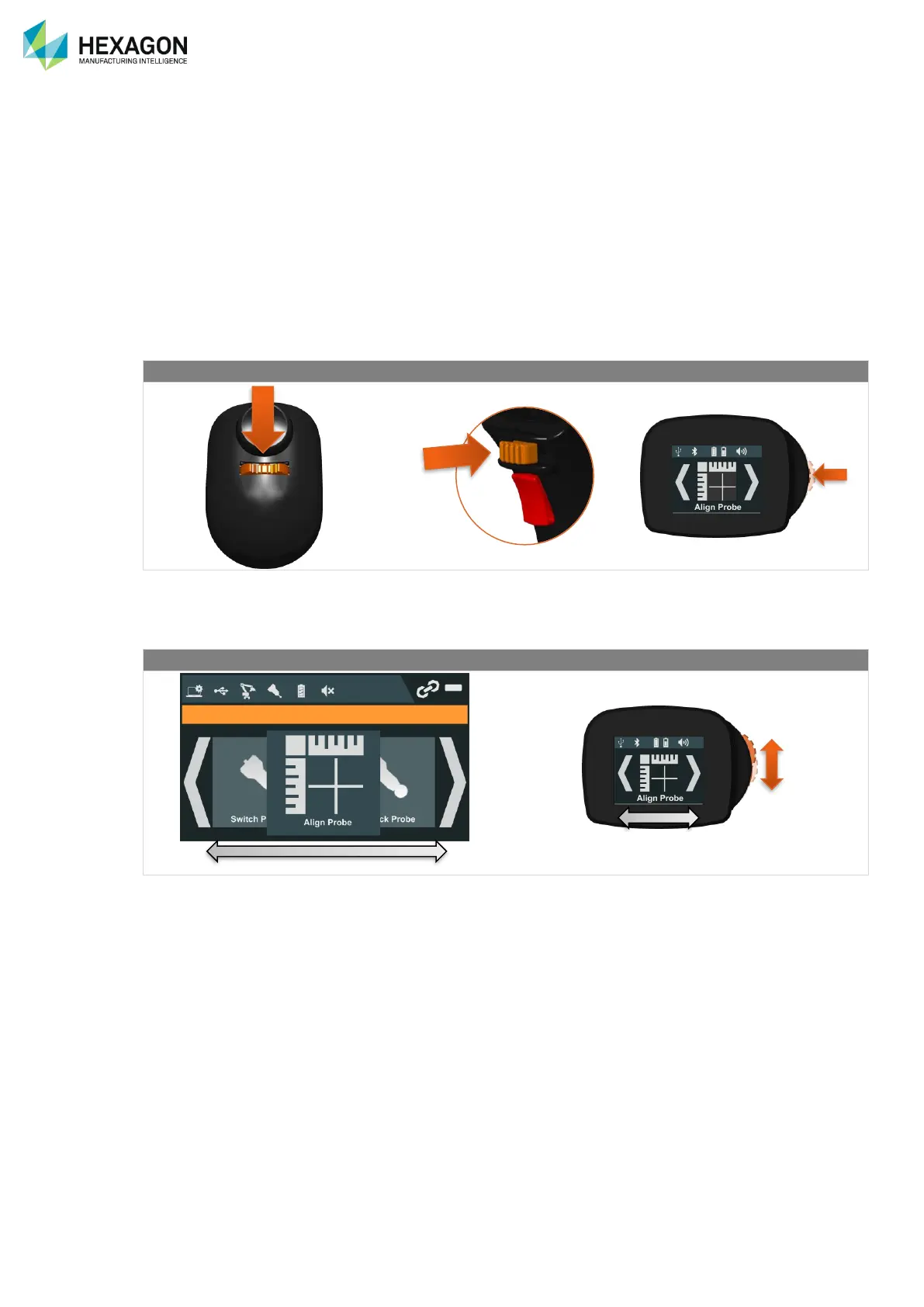

Press the 3-State Button (middle position) to activate the Quick Access Menu.
The menu appears then on the computer – and on the Wrist Display.
6-axis wrist
7-axis Pistol grip
7-axis Swivel
By moving left/right the 3-State button, select the wanted operation, and then press again the button to
validate the choice and run the action or choose next sub-menu.
Q.A.M. on RDS Agent
Q.A.M. on Wrist Display
F.3.3 AVAILABLE ACTIONS
The Quick Access Menu depends on the available features on the arm (Control Pack, mounted probe…).
