Verifications bars (87)

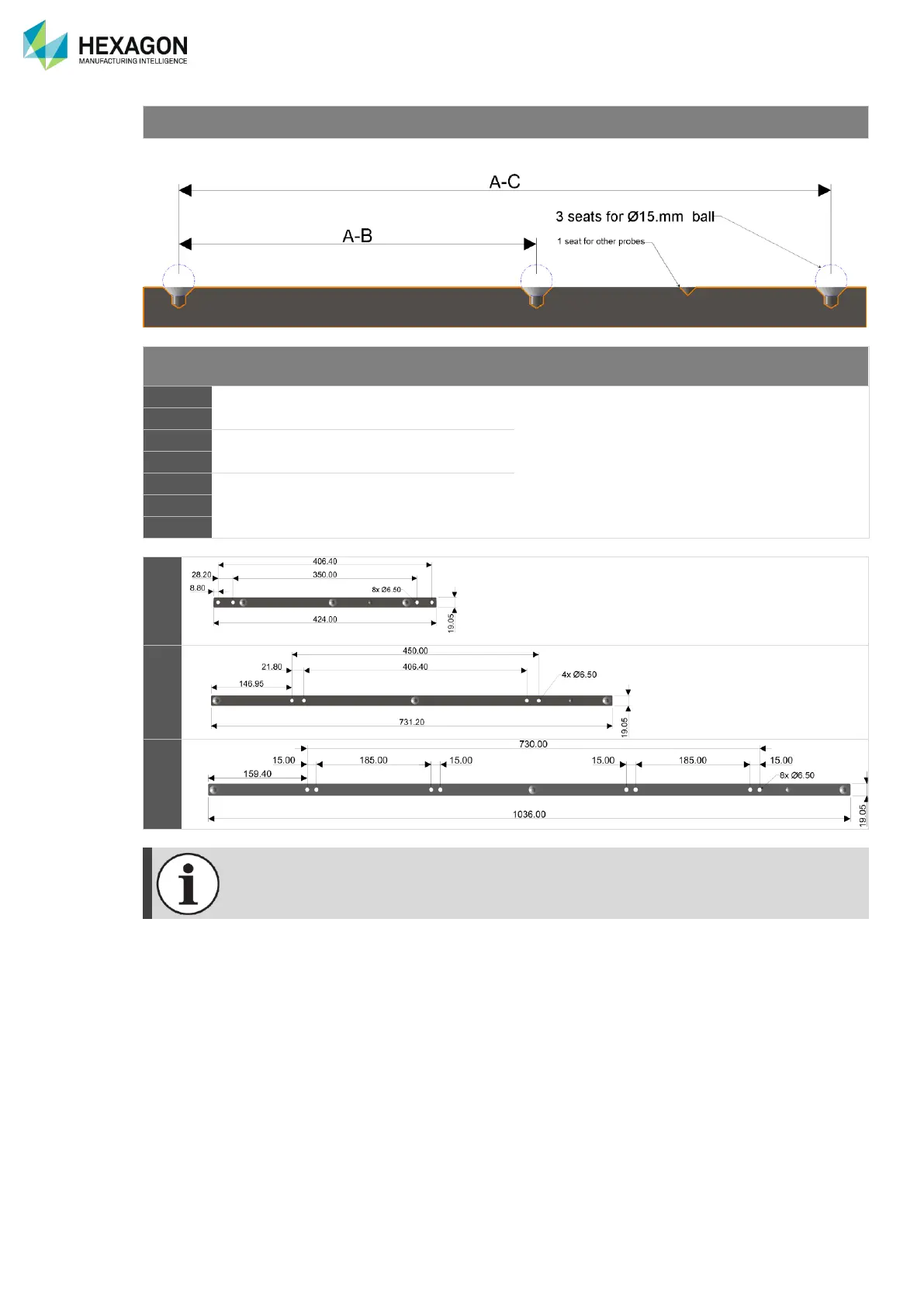

The standard steel verification bars, included in all the 87 cases, have different size according to the size
of the arm:
Arm
size
Bar size
(mm)
A-B
A-C
Exact lengths
1.2
310
(170)
(310)
See the exact values on the bar.
2.0
2.5
711
(362)
(711)
3.0
3.5
1016
(515)
(1016)
4.0
4.5
310
711
1016
Calibrated values at 20°. Bars in steel, with a Coefficient of Thermal Expansion of
13 µm.m
-1
.°C
-1
± 2µm
