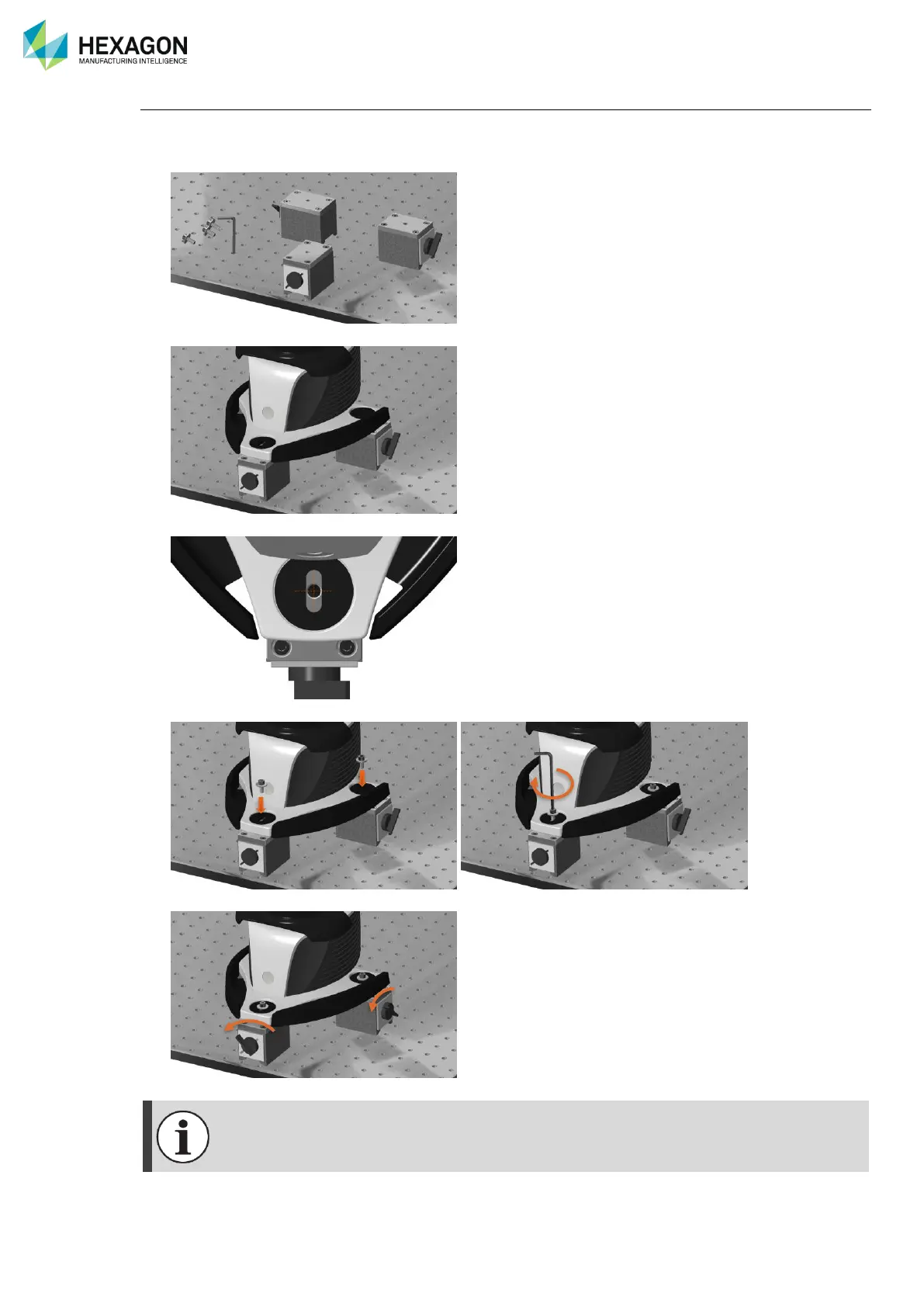

Use magnets (option)
A set of 3 accessory magnets can be fixed under the base plate, providing a good and easy way to install
the arm on a ferromagnetic surface.
1. Prepare the 3 magnets at a correct distance on a levelled and stable work surface.
2. Lay the arm on the magnets.
3. Adjust the 3 magnets so that the slot hole of the washer fits over the threaded hole of the magnet.
4. Introduce and tighten the 3 screws in the magnets
5. Turn the lock of the magnets to lock the position of the arm.
Always Remove the magnets before placing back the arm in its transport case.
