Hexagon Absolute Arm RS5 User Manual

Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │29
Adapter for HP-L-20.8 Scanning Pack (FP4) (Absolute SE)

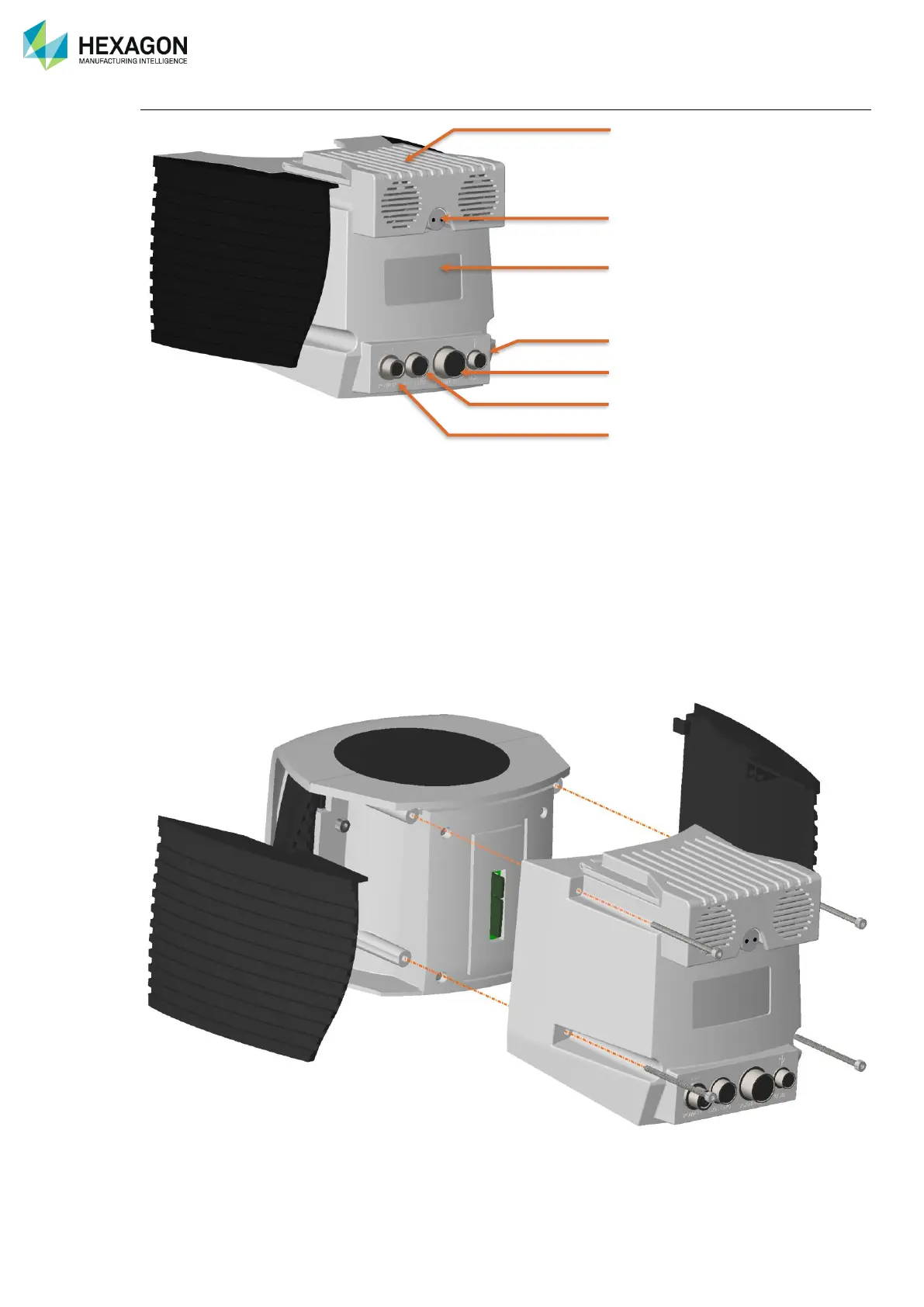

Fig. 19 : FP4 (HP-LC-200) description
a. Air coolers
b. Maintenance lock
c. Identification label
d. USB-to computer connector
e. Ethernet (scanner) connector
f. External accessory connector
g. Power connector
The FP4 (HP-LC-200) is designed to use the Absolute SE arm with HP-L-20.8 scanner (probing and
scanning). A specific adapter is necessary to mount the FP4 on the arm.
