Installation
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │78

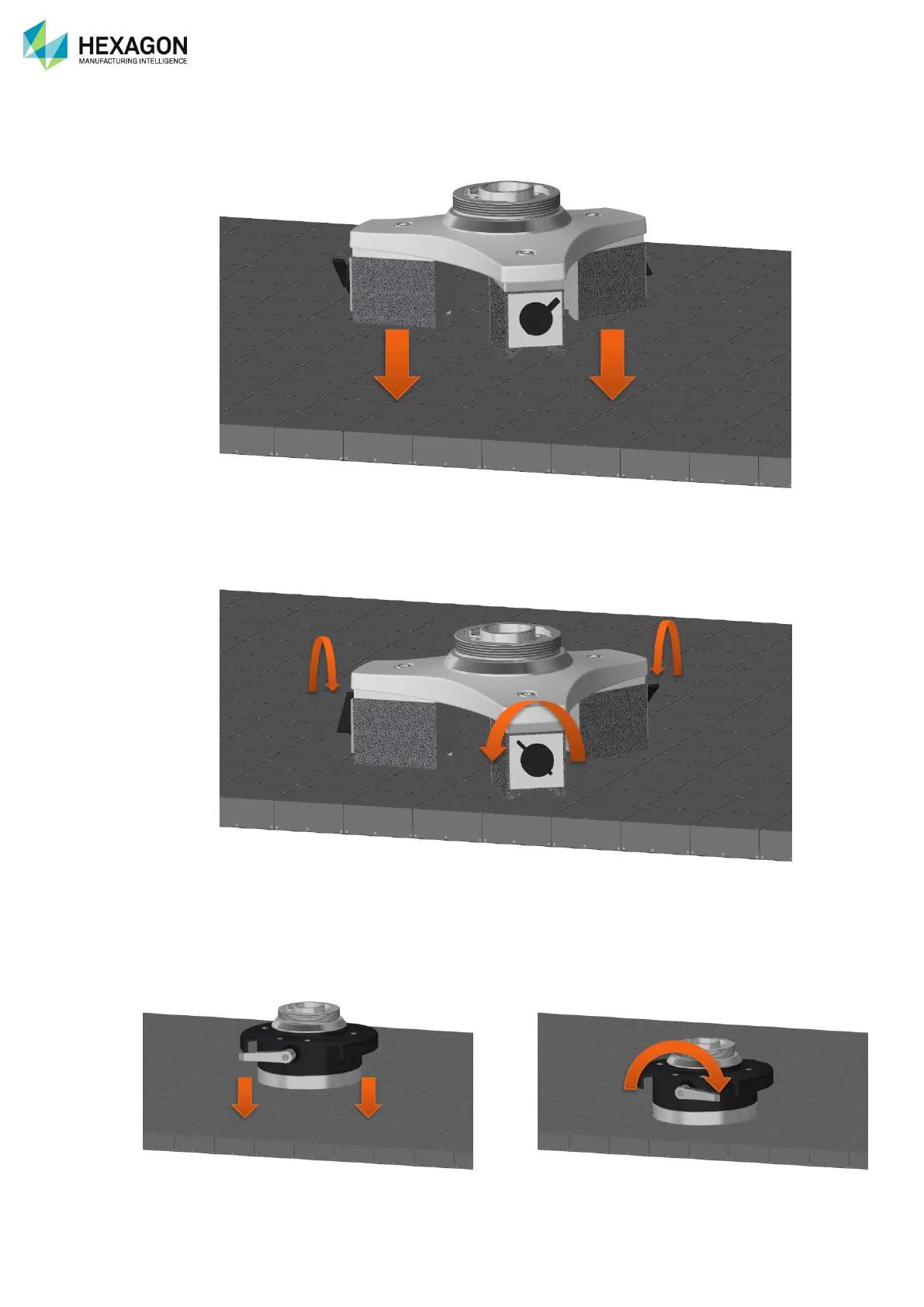

D.1.4 STANDARD MAGNETIC BASE (OPTION)
1. Place the base on a level and stable magnetic surface
Fig. 29 : Standard magnetic support installation
2. Lock the magnets
D.1.5 CIRCULAR MAGNETIC BASE (OPTION)
Fix the Mounting Ring on the circular base; place the complete base on a level and stable magnetic surface,
then lock the magnet by turning the key.
Fig. 30 : Circular magnetic base installation
