Absolute Arm presentation
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │11
6-axis wrist
The 6 axes wrist can receive all male contact or non-contact Tube probes as well as male laser scanners.

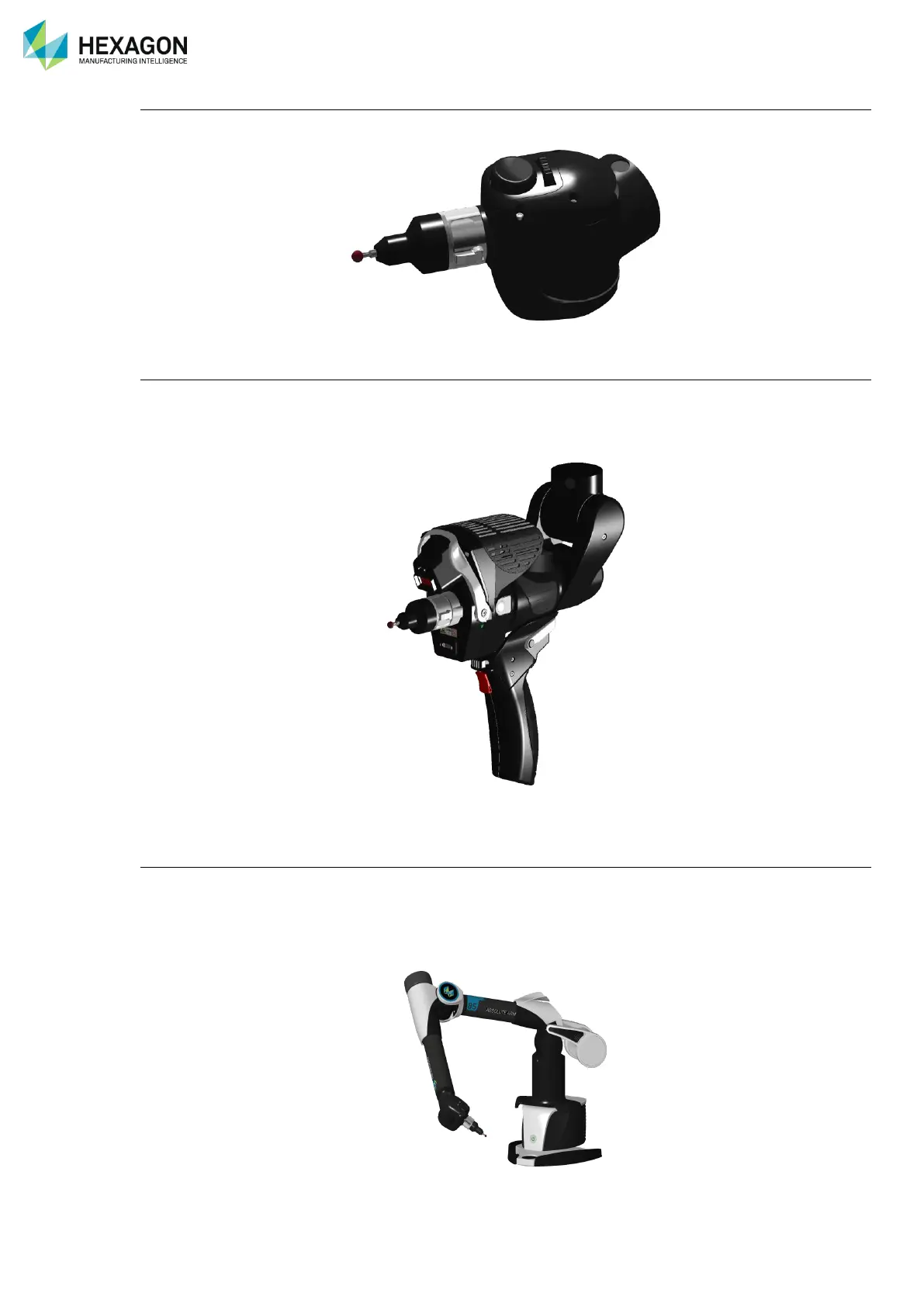

Fig. 1 : Arm wrist
7-axis wrist
The 7 axes wrist is a modular component, available either for its integrated scanner, either for any other
external scanner (“SE” configuration) such as the Hexagon
®
HP-L-20.8 laser scanner.
As well as the 6-axis wrist, the 7-axis wrists can receive all male contact or non-contact Tube probes.
Fig. 2: SI Wrist
Compact – 1.2 size
The smallest size arm (1200mm) is designed to be an easy-to-setup arm: simply put it down on the work
plane, no clamping or other kind of fixation is necessary.
On the 1.2, the gas pump counterbalance is replaced by a counterweight.
The Absolute Arm 1.2 is available only in 6 axes configuration (8312 and 8512).
