Hexagon Absolute Arm RS5 User Manual

Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │24
Absolute Arm Compact 1.2 (83 / 85 – 6axes only)

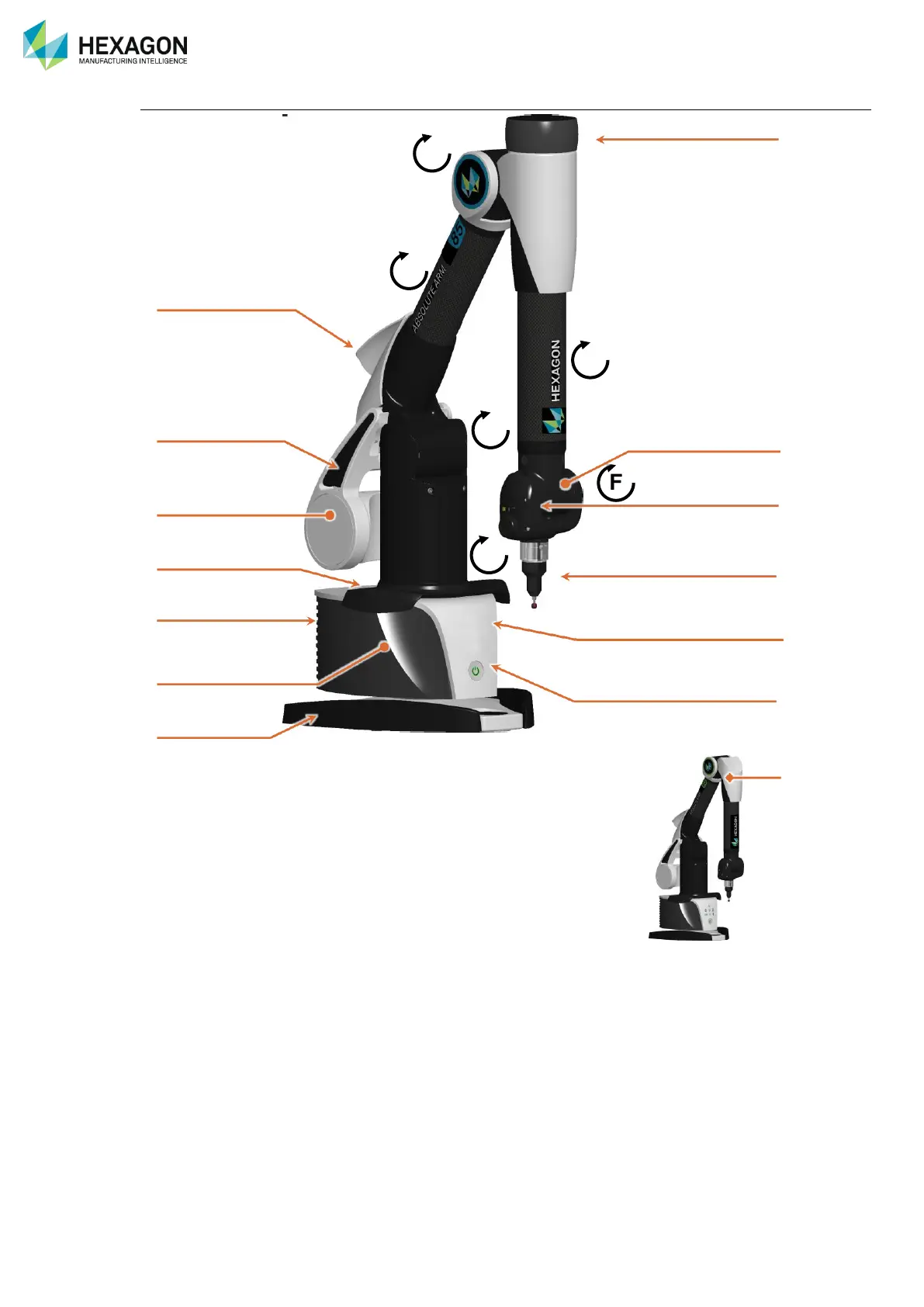

Fig. 15 : Absolute Arm Compact 8512 overview
a. Rest support
b. Counterweight unlock buttons
c. Counterweight
d. Handling skirt
e. Control Pack
f. Base of the arm
g. Base plate
h. Spin Knob (8512 only)
i. Arm wrist
j. Buttons
k. Contact probe
l. Status pictograms
m. On/Off button
A
B
C
D
E
F
a
c
f
e
g
l
h
j
i
d
k
m
b
h
Fig. 16 : Absolute Arm Compact
8312 overview
