Hexagon Absolute Arm RS5 User Manual

Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │129
F.4.4 PROBING TIPS AND TRICKS

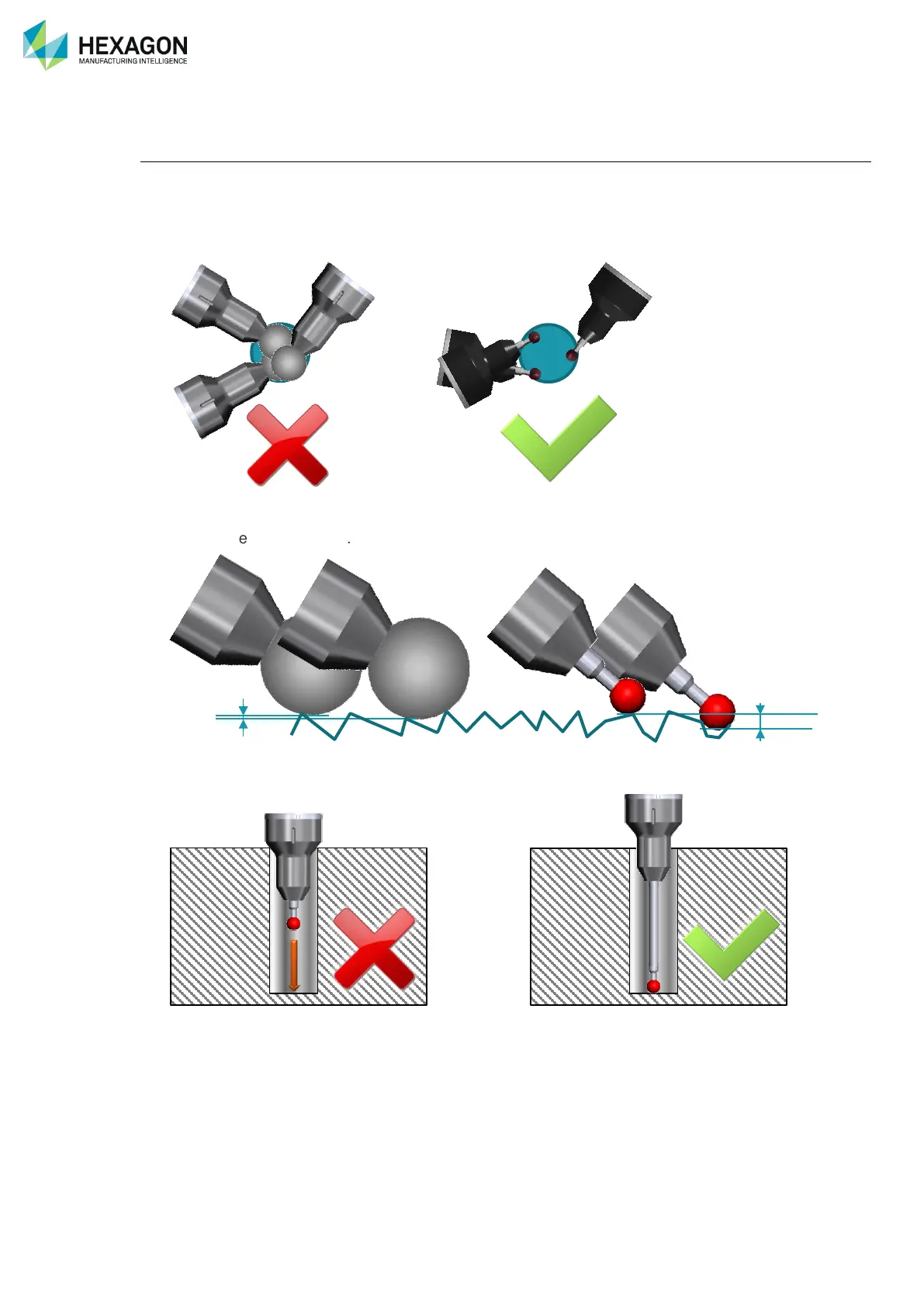

Which tip diameter to use
Any tip diameter can be used on an Absolute Arm. The choice of one probe or another one depends mainly
on the application of the probing:
• What size is the feature to probe? The tip diameter must be adapted to the feature to probe.
• How rough is the part surface? A large tip diameter will skip asperities, while a small one will integrate
them in the measurement.
• How deep is the part? M3 tip extension may be necessary to reach deep areas of a part.
