Connection
H00007091 - Absolute Arm User Manual Version 5.2.0 (2019-03-07) 109
E.6.2 HEXAGON
®
HP-L-8.9 SCANNER
The HP-L-8.9 is designed to be mounted on 6 axes Absolute Arms through its Male TKJ connector.
Hardware Setup:

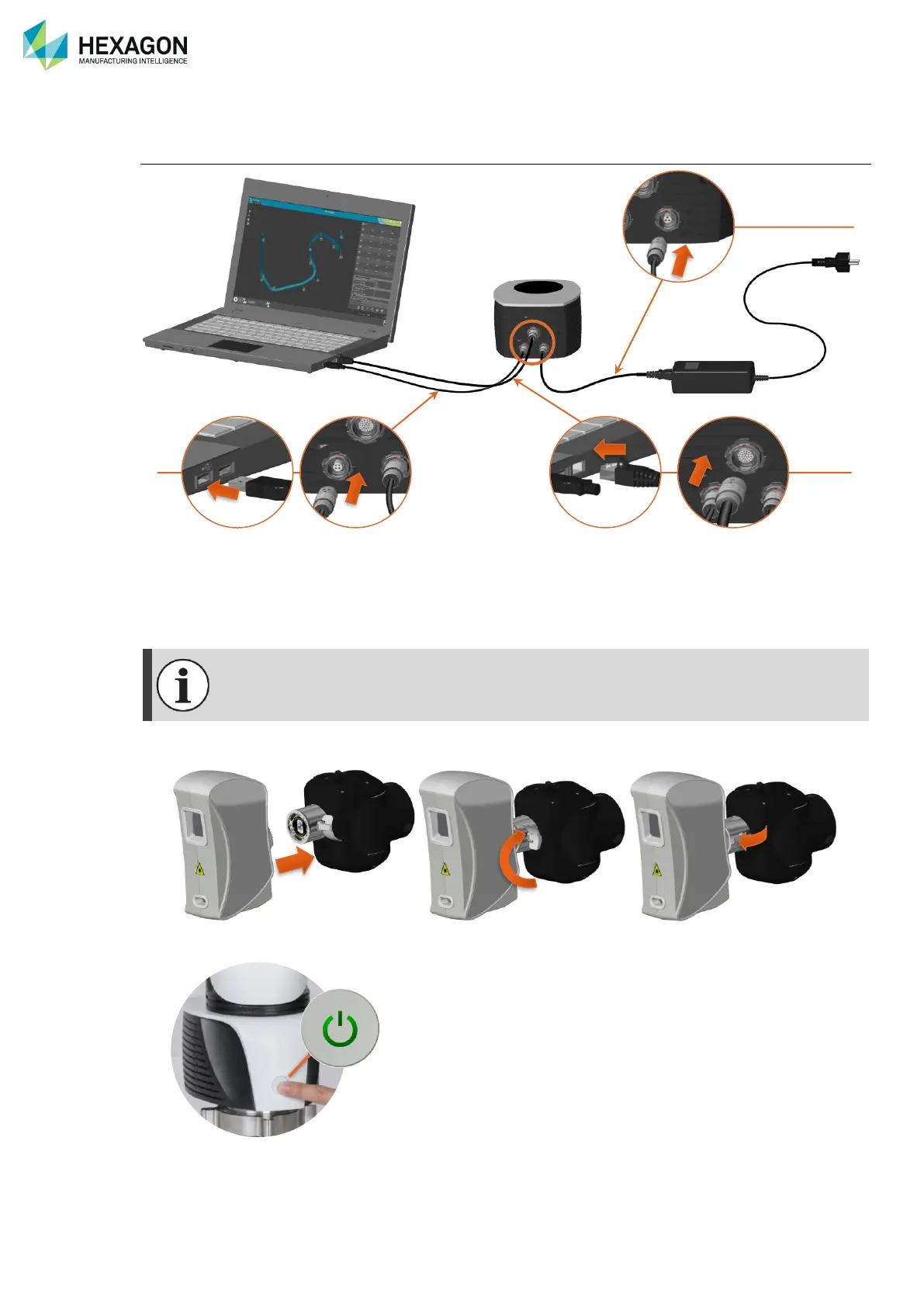

Fig. 38 : USB + Scanner connection
1. Ensure that at least a Scanning Pack (CP1 / CP2 or CP3) is mounted.
2. Connect the power supply to the arm. (Or use on battery for CP3)
3. Connect the USB cable from the arm to the computer
4. Connect the Scanner Ethernet cable from the arm to the computer
The dual-external cable, provided with the scanner is not used.
5. Mount the scanner on the TKJ connector and remove the protection foam from the sensor
6. Power on the arm by holding the power button for at least 1 second.
3
2
4
