Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │43

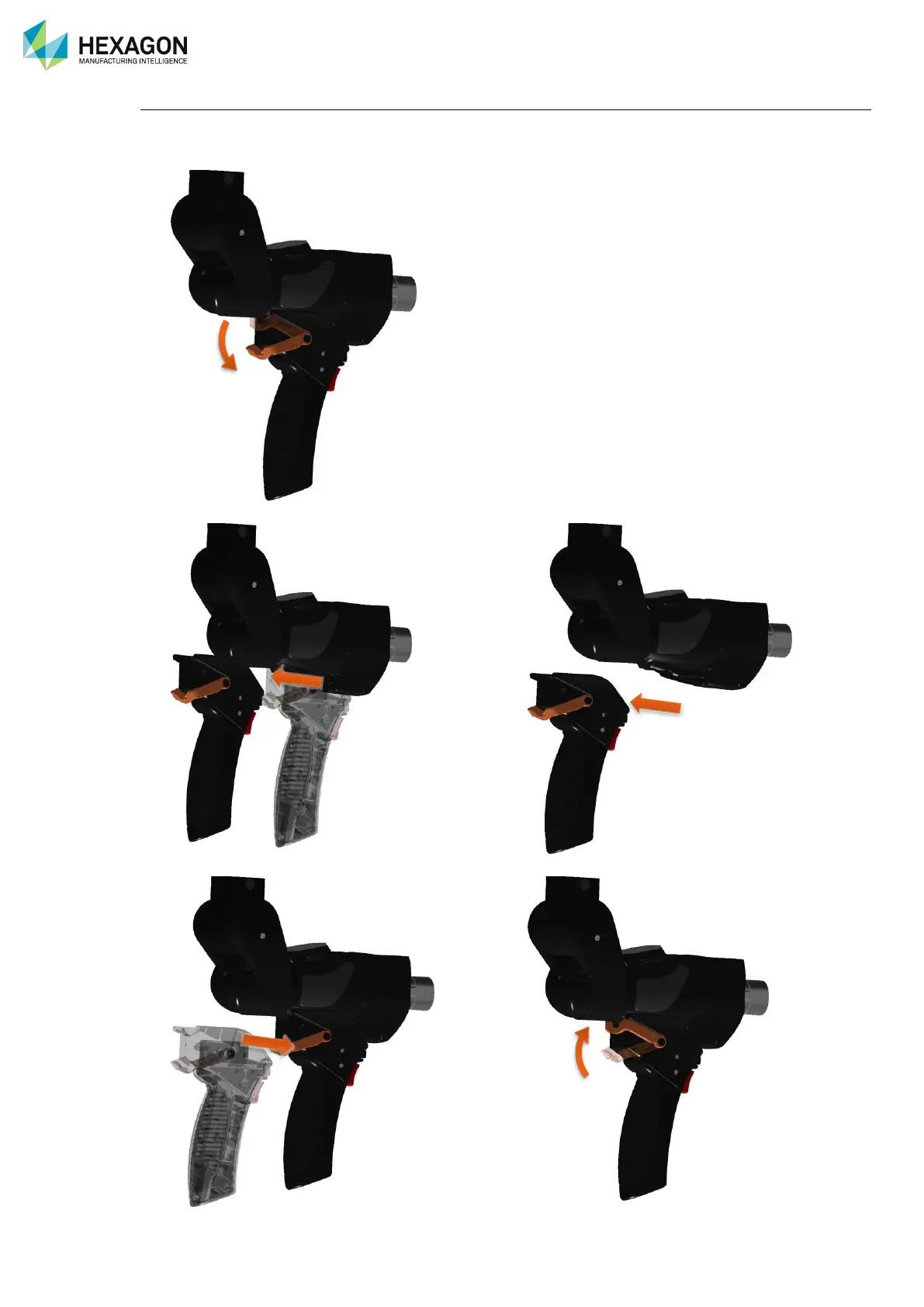

Remove/Mount the Pistol Grip (except SE configuration)
To access narrow locations, it can be useful to take off the complete Pistol Grip from the wrist, providing
then a smaller wrist.
1. Release the pistol by pulling down the Locking lever
2. Remove the pistol by sliding it back.
3. To mount back the pistol, simply slide it and lock it by pulling up the lever.
