Connection

H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │107

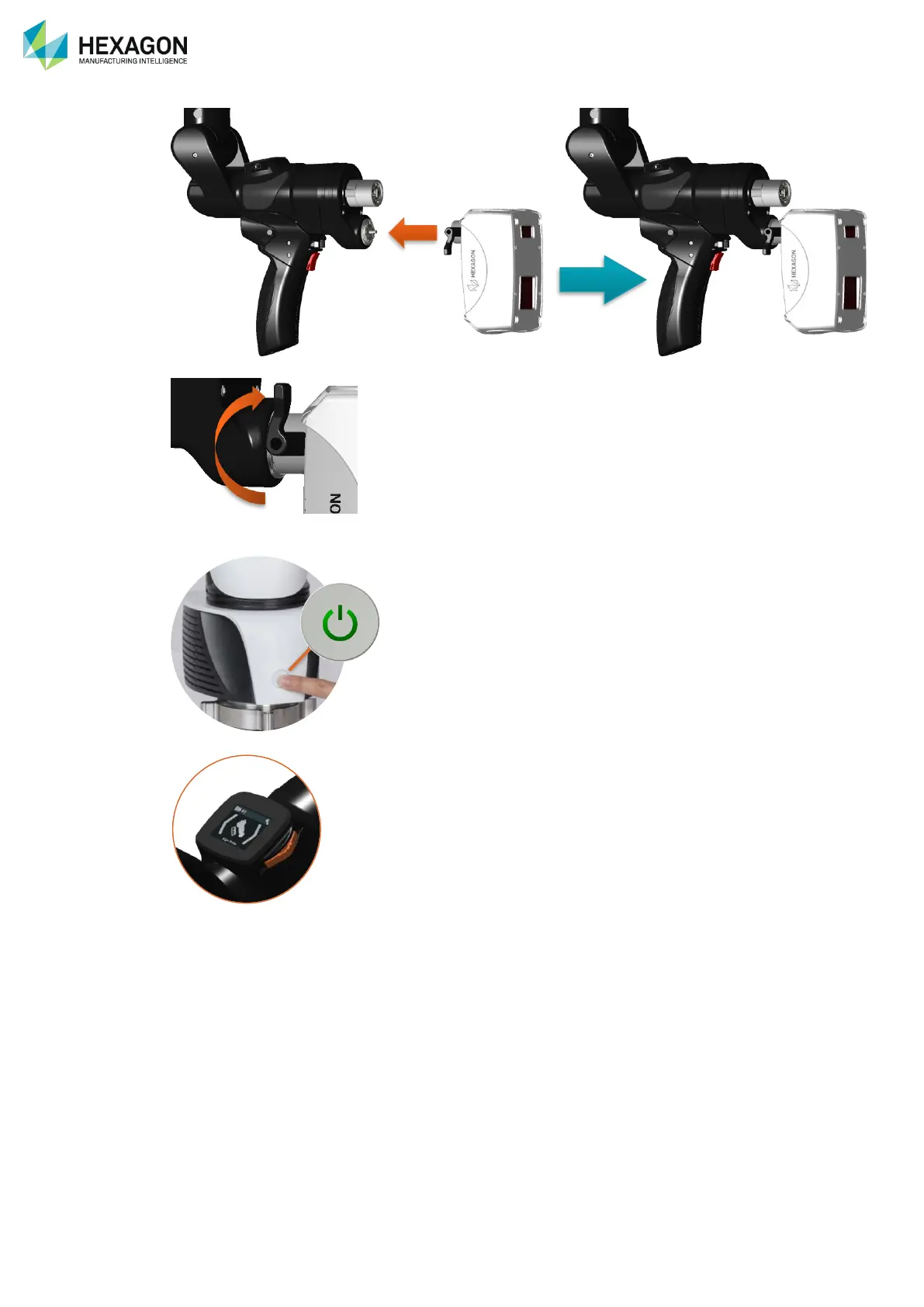

6. Approach and mount the scanner on the TKJ connector

7. Lock the scanner with the lever.

8. Power on the arm by holding the power button for at least 1 second.

9. Select the scanner location

Table of Contents3
