Measure with the arm
H00007091 - Absolute Arm
User Manual
│
Version 5.2.0 (
2019
-
03
-
07
)
│
136

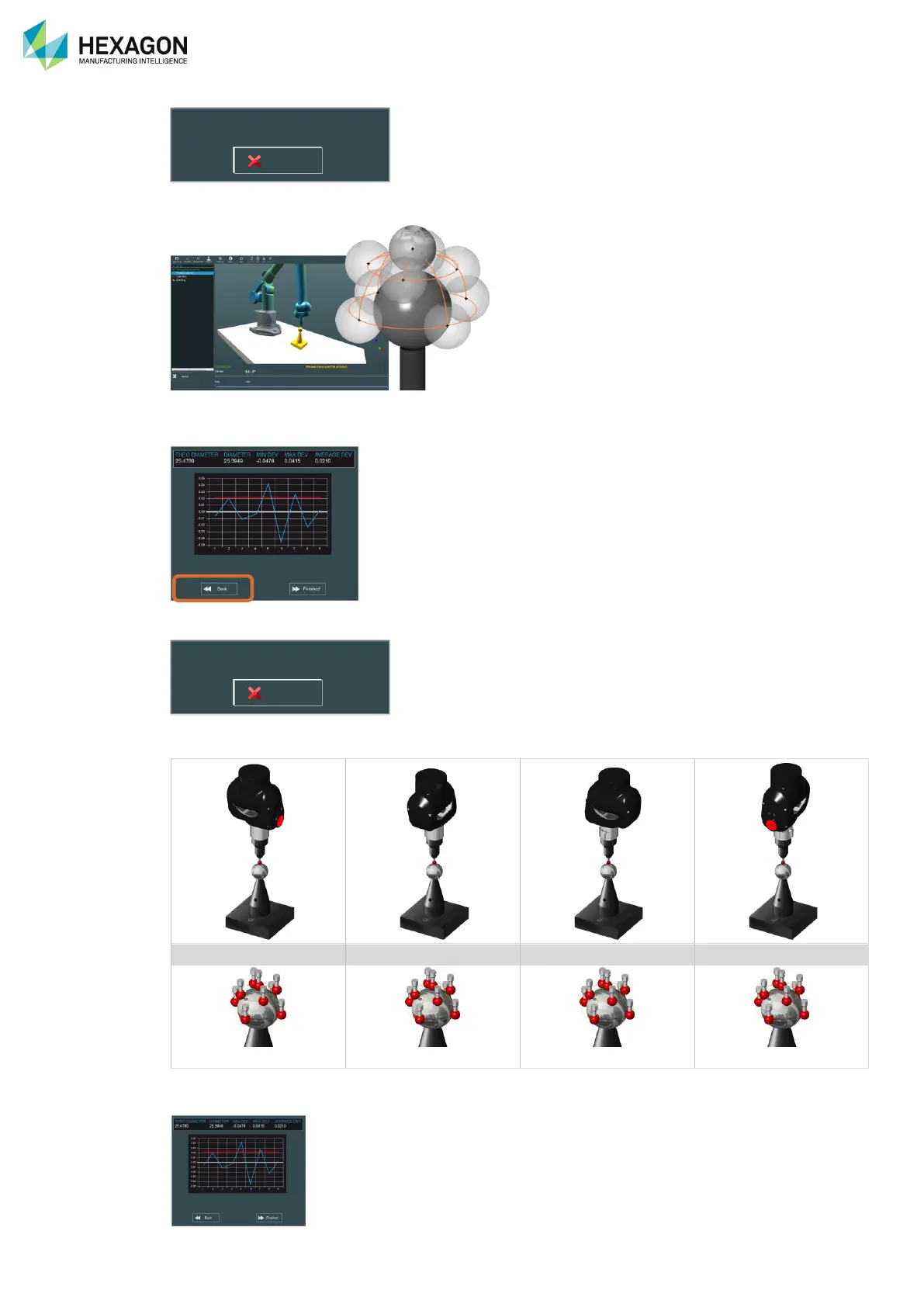

5.
Insert 15mm reference pro
be
6.
Take 9 points on sphere with
15mm probe
7.
Check reference sphere
results and “OK”
8.
Insert the probe to align
9.
Measure 4 x 9 points on t
he sphere with the 4 orientations of t
he probe
Buttons toward the arm
90° on E
90° on E
90° on E
9 points
9 points
9 points
9 points
10.
Validate the results of the measurement
to start calculation.
Please plug in the reference probe
Cancel
Please plug in the probe to align
Cancel
136
138
