Accessories
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │167

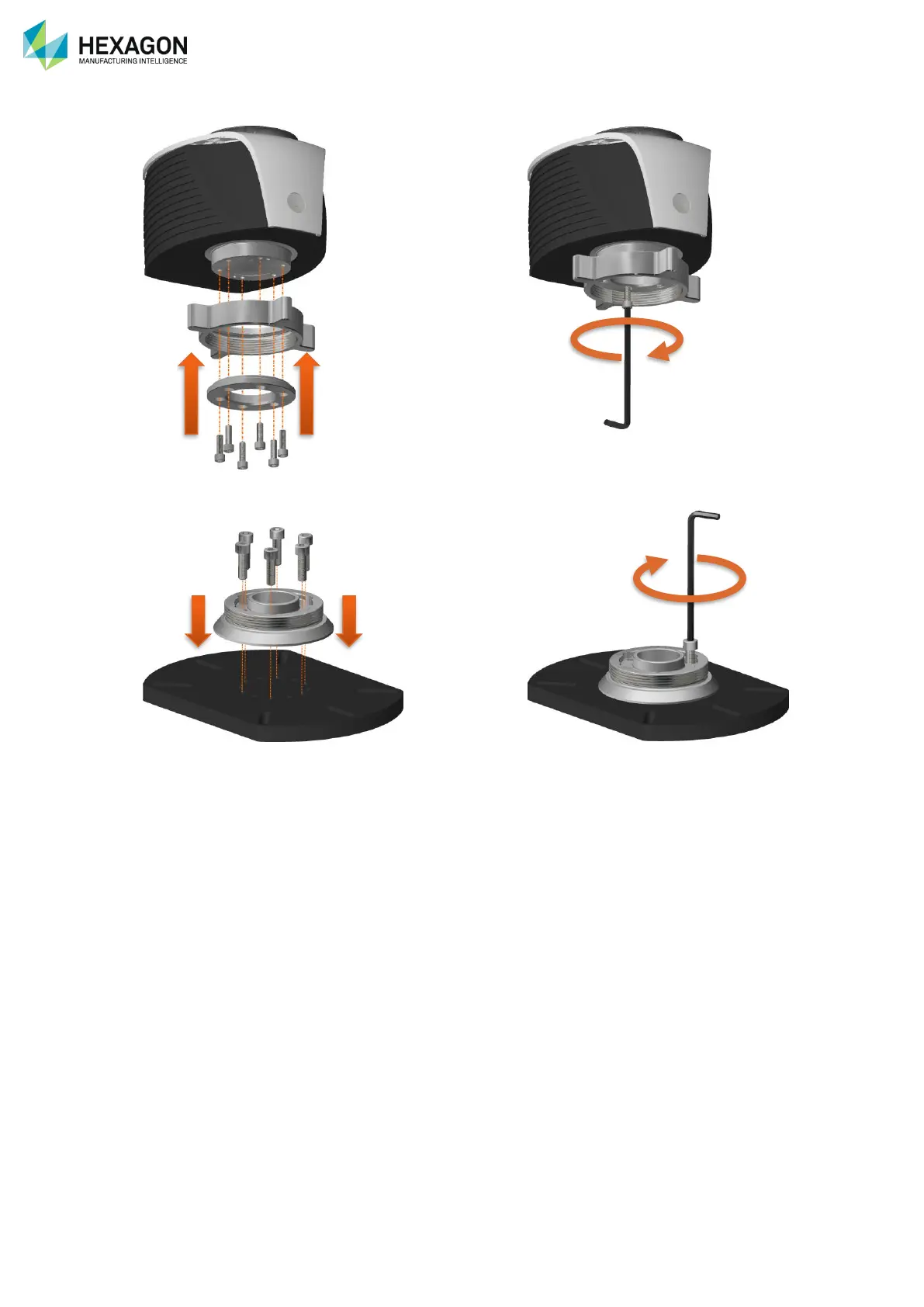

2. Install the Mounting nut on the arm: approach the nut and tighten the 6xM6-BTR screws at 12.5 Nm.
3. Install the Mounting ring on the support: place the ring on the support and tighten the 6 screws.
4. Fix the support and mount the arm on it: follow standard steps (chapter D.2.3) to install securely the
arm on the base.
