Maintenance & Troubleshoot

H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │176

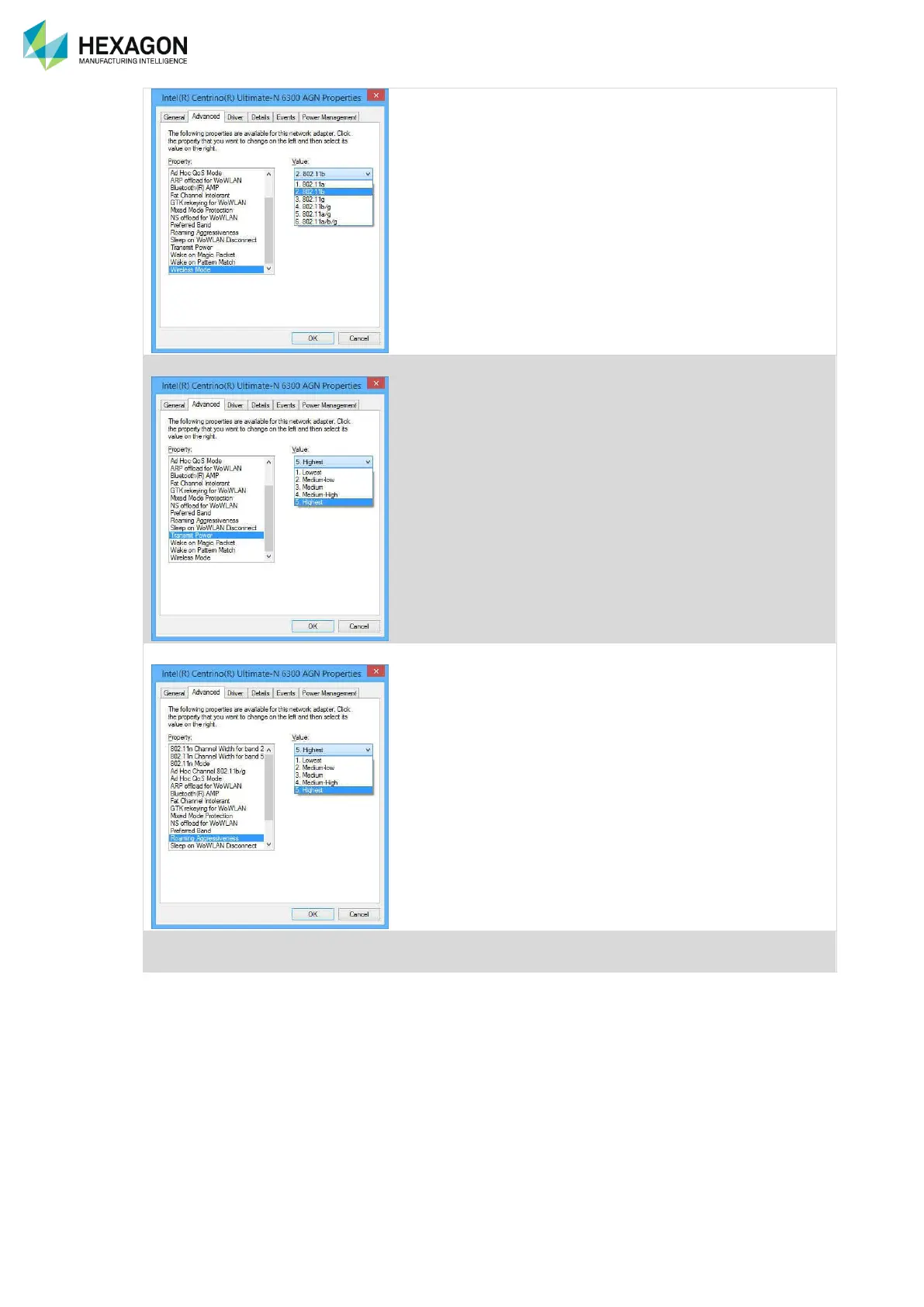

8. Advanced tab, “Transmit Power”, choose “5. Highest”

9. Advanced tab, “Roaming Aggressiveness”, choose “5. Highest”

10. Close all windows and restart the computer.
