HIKVISION DS-2CD6986F-H User Manual

User Manual of PanoVu Series Network Camera
18
Before you start:
Before setting the SNMP, use the SNMP software and manage to receive the camera information via
SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages
to the surveillance center.
Note:
The SNMP version you select should be the same as that of the SNMP software.
Steps:
1. Enter the SNMP settings interface:
Configuration > Network > Advanced Settings > SNMP

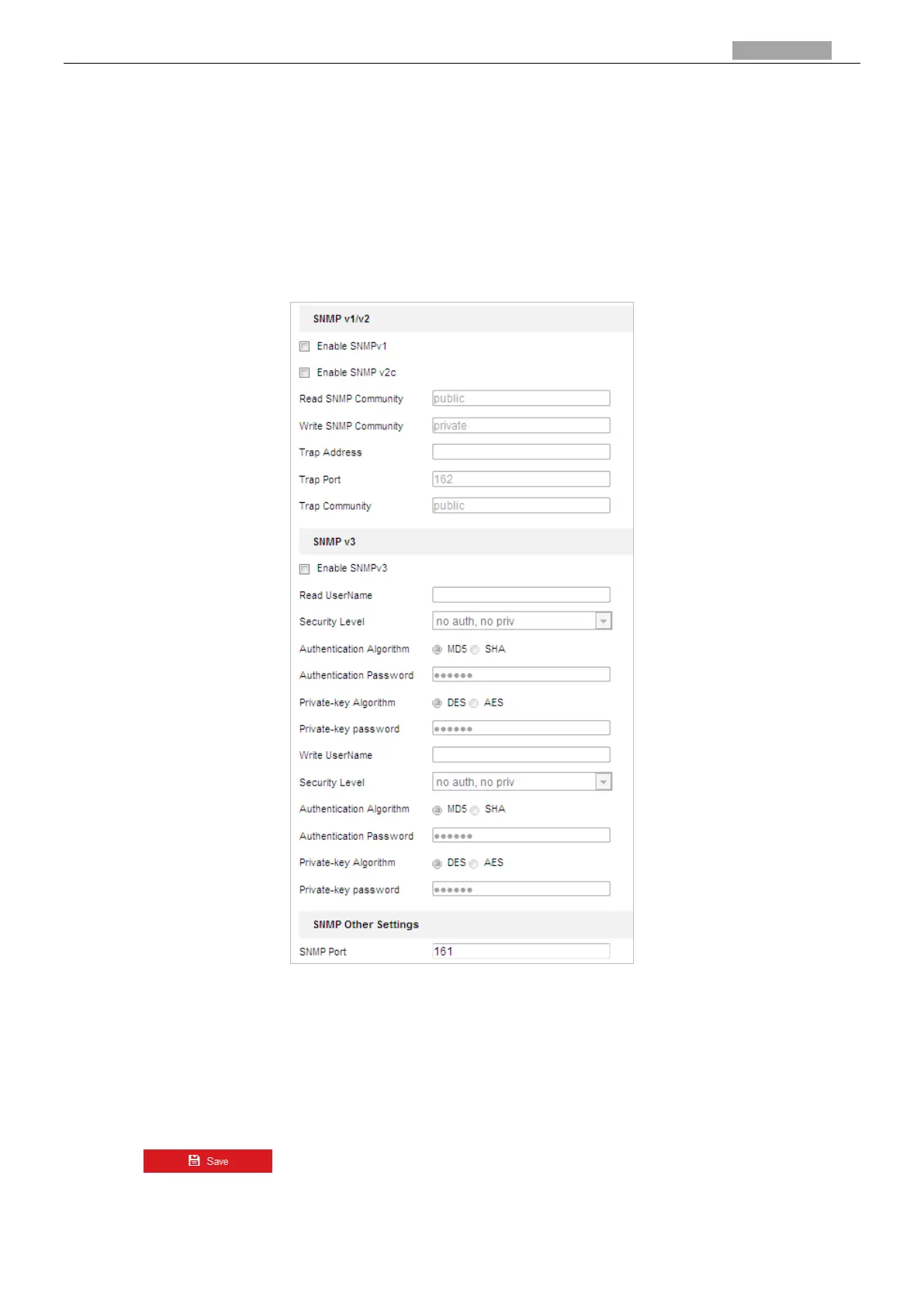

Figure 2-8 SNMP Settings
2. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to
enable the feature.
3. Configure the SNMP settings.
Note:
The configuration of the SNMP software should be the same as the settings you configure here.
4. Click to save and finish the settings.

HIKVISION DS-2CD6986F-H Specifications

General

Brand	HIKVISION
Model	DS-2CD6986F-H
Category	Security Camera
Language	English
