User Manual of PanoVu Series Network Camera

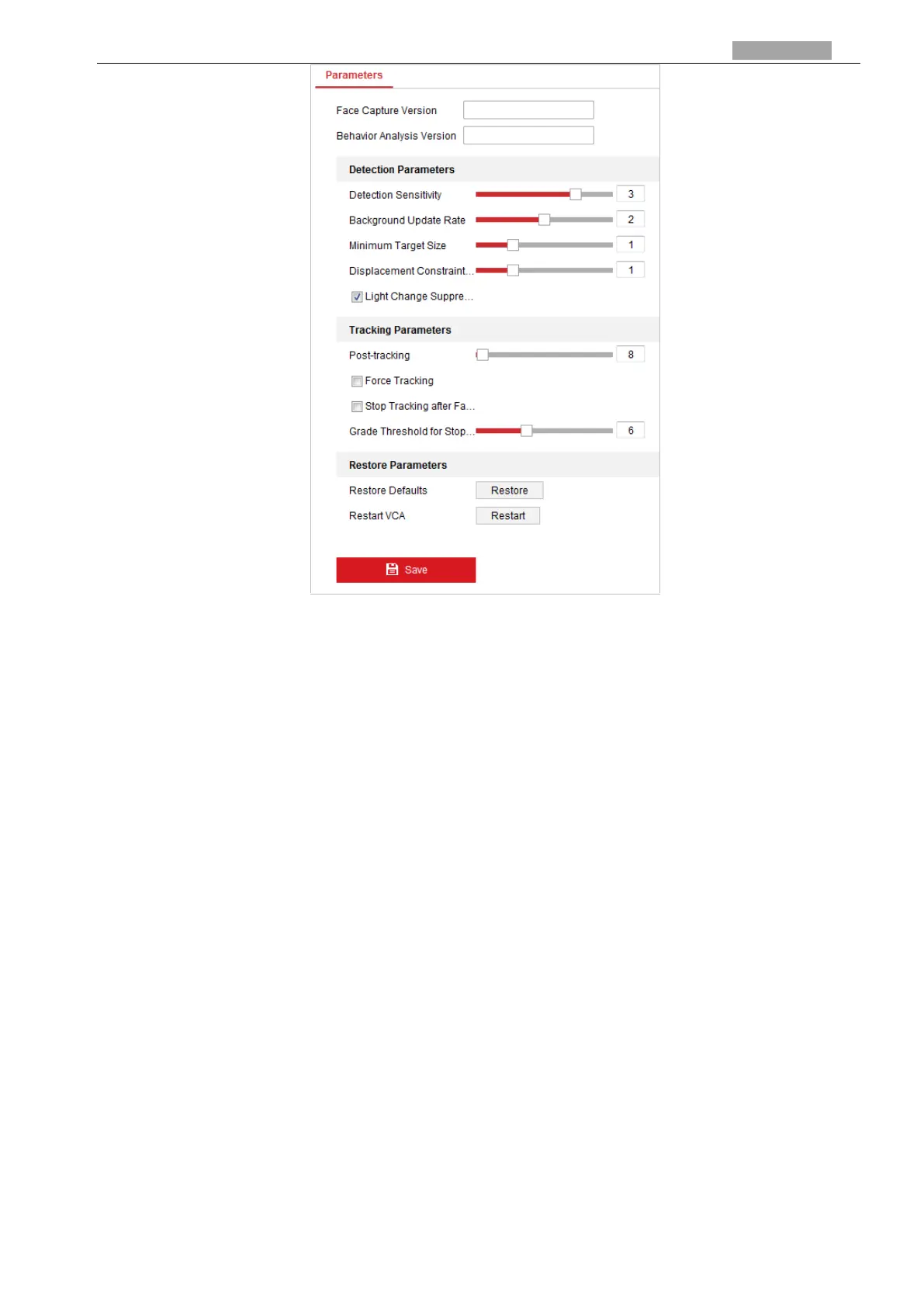

Figure 6-21 Advanced Configuration
2. Adjust the Detection Parameters. (When VCA resource is selected as Behavior
Analysis/Behavior Analysis + Face Capture.)
Detection Sensitivity: Range [0-4], the higher the sensitivity is, the easier the target will be
detected.
Background Update Rate: Range [0-4], if a detected target remains in the monitoring scene
for a certain time, the system will count the target as the background automatically. The
greater the value is, the faster the target will be counted as the background.
Minimum Target Size: Range [0-4], The system will filter out the object smaller than the
minimum target size.
Displacement Constraint for Target Generation: Range [0-4], the higher the value is, the
slower the target is generated, and the higher accuracy the analysis will get.
Light Change Suppression: Check the checkbox to suppress the impact caused by the
illumination change.
3. Adjust the Tracking Parameters. (When VCA resource is selected as Behavior Analysis/Behavior
Analysis + Face Capture.)
Post-tracking: Range [2-600], you can configure the tracking duration after the target is still.
Force Tracking: Check the checkbox to enable the function to prevent the object to be blocked.
After the function being enabled, the camera will continue locating and tracking the blocked
target.
Grade Threshold for Stopping Tracking: Range [1-15], the higher the value is, the network
camera stops tracking under higher condition.
Stop Tracking after Face Detected: You can set the tracking stopping threshold. The higher the
value is the, the easier the tracking can be stopped.
Restore Default: Click Restore to restore the parameters to the default.
