HIKVISION DS-K1T341B Series User Manual

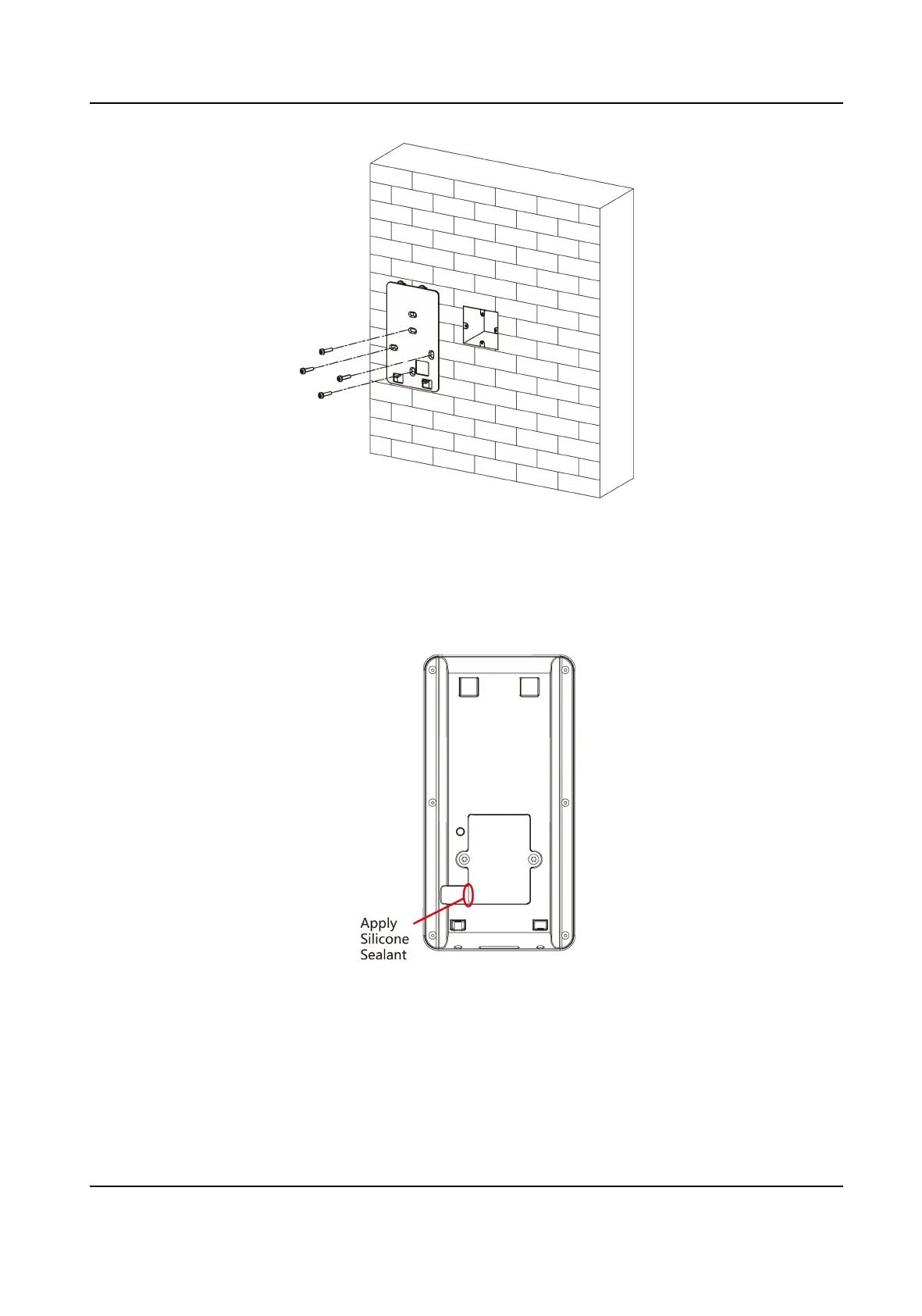

Figure 3-2 Install Mounng Plate
4. Remove the two screws on the rear panel and remove the sheet to display the wiring terminals.
5. Route the cable through the cable hole of the mounng plate, and connect to corresponding
external devices' cables.
6. Install the sheet back to the device with the two screws.
7. Apply Silicone sealant among the cable wiring area to keep the raindrop from entering.
Figure 3-3 Apply Silicone Sealant
8. Align the device with the mounng plate and hang the device on the mounng plate.
DS-K1T341B Series Face Recognion Terminal User Manual
5
