T
ype 1
Note
The
re
s
ys
tem con
trols the pow
er supply of the access con
trol s
ys
tem.

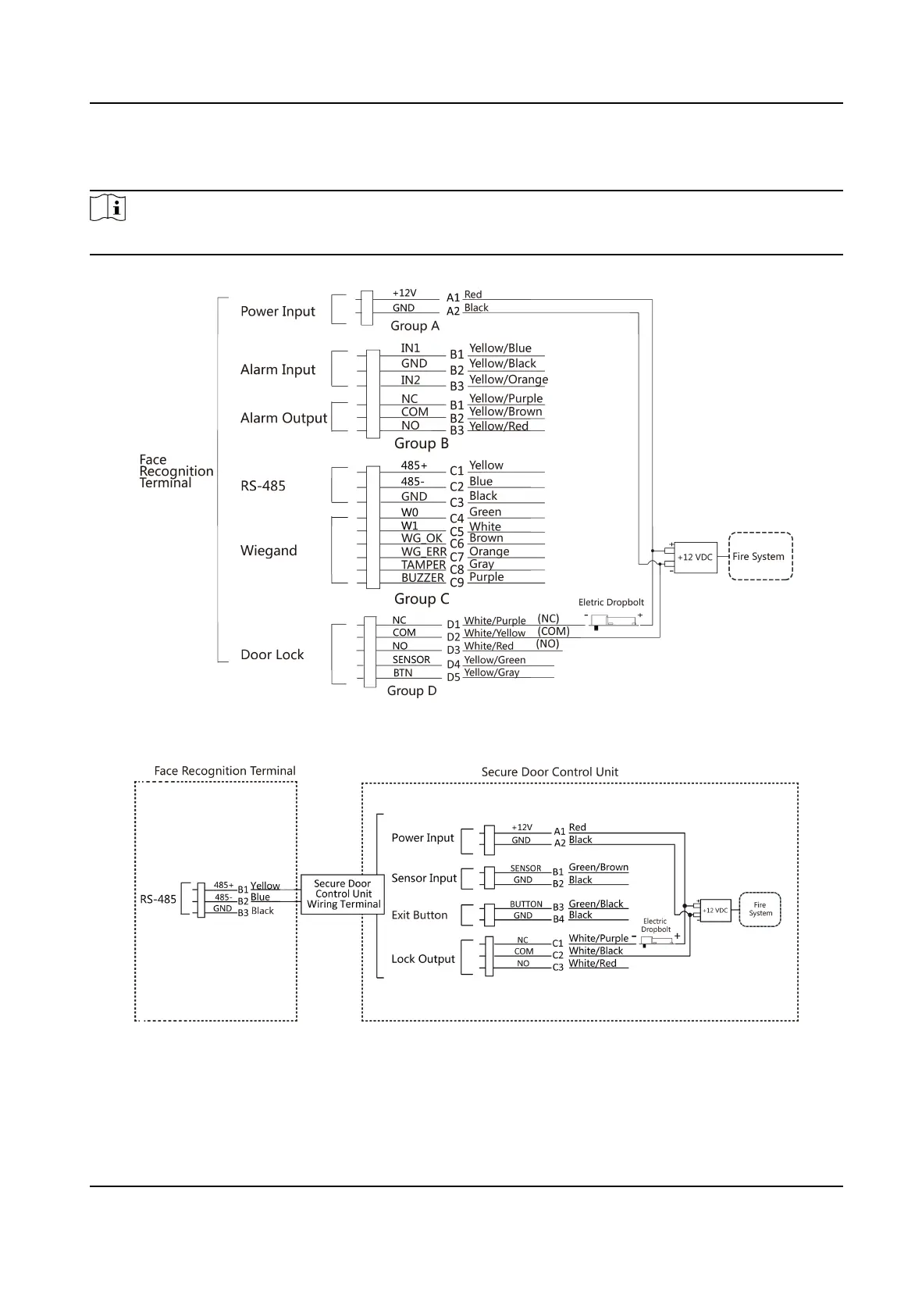

Figure 4-4 Wir
e Device
Figure 4-5 Wir
e Secure Door Contr
ol Unit
DS-K1T
A70 Series F
ace
R
ecognion
T
erminal User Manual
18
33
35
Table of Contents
default chapter
10
Table of Contents
10
Chapter 1 Overview
17
Overview
17
Features
17
Chapter 2 Appearance
19
Chapter 3 Installation
22
Installation Environment
22
Flush Mounting
22
Surface Mounting
25
Chapter 4 Wiring
29
Terminal Description
29
Wire Normal Device
32
Wire Secure Door Control Unit
33
Wire Fire Module
33
Wiring Diagram of Door Open When Powering off
33
Wiring Diagram of Door Locked When Powering off
36
Chapter 5 Activation
38
Activate Via Device
38
Activate Via SADP
40
Activate Device Via Client Software
41
Activate Via Web Browser
42
Chapter 6 Quick Operation
43
Select Language
43
Set Application Mode
45
Set Network Parameters
46
Set Administrator
46
Chapter 7 Basic Operation
49
Login
49
Login by Administrator
49
Login by Activation Password
52
Communication Settings
53
Set Wired Network Parameters
54
Set RS-485 Parameters
55
Set Wiegand Parameters
56
User Management
57
Add Administrator
57
Add Face Picture
58
Add Card
60
View Password
61
Set Authentication Mode
62
Search and Edit User
62
Data Management
63
Delete Data
63
Import Data
63
Export Data
64
Identity Authentication
64
Authenticate Via Single Credential
64
Authenticate Via Multiple Credential
65
Basic Settings
65
Set Biometric Parameters
68
Set Access Control Parameters
70
Time and Attendance Status Settings
71
Disable Attendance Mode Via Device
71
Set Manual Attendance Via Device
72
Set Auto Attendance Via Device
73
Set Manual and Auto Attendance Via Device
75
System Maintenance
76
Video Intercom
78
Call Client Software from Device
78
Call Center from Device
79
Call Device from Client Software
79
Call Room from Device
80
Call Mobile Client from Device
80
Temperature Measurement Settings
81
Chapter 8 Operation Via Web Browser
84
Login
84
Live View
84
Person Management
86
Search Event
87
Configuration
87
Set Local Parameters
87
View Device Information
88
Set Time
88
Set DST
89
View Open Source Software License
89
Upgrade and Maintenance
89
Log Query
91
Security Mode Settings
91
Certificate Management
92
Change Administrator's Password
93
View Device Arming/Disarming Information
93
Network Settings
93
Set Video and Audio Parameters
97
Customize Audio Content
98
Set Image Parameters
99
Set Supplement Light Brightness
101
Time and Attendance Settings
101
Set Video Intercom Parameters
104
Access Control Settings
106
Set Biometric Parameters
113
Set Notice Publication
116
Temperature Measurement Settings
117
Chapter 9 Client Software Configuration
120
Configuration Flow of Client Software
120
Device Management
120
Add Device
121
Reset Device Password
129
Group Management
130
Add Group
130
Import Resources to Group
131
Edit Resource Parameters
131
Remove Resources from Group
131
Person Management
132
Add Organization
132
Configure Basic Information
133
Issue a Card to One Person
133
Upload a Face Photo from Local PC
134
Take a Photo Via Client
135
Collect Face Via Access Control Device
136
Configure Access Control Information
137
Customize Person Information
139
Configure Resident Information
140
Configure Additional Information
140
Import and Export Person Identify Information
141
Import Person Information
141
Import Person Pictures
141
Export Person Information
142
Export Person Pictures
142
Delete Registered Pictures
143
Get Person Information from Access Control Device
143
Move Persons to Another Organization
144
Issue Cards to Persons in Batch
144
Report Card Loss
145
Set Card Issuing Parameters
145
Configure Schedule and Template
146
Add Holiday
146
Add Template
147
Set Access Group to Assign Access Authorization to Persons
149
Configure Advanced Functions
151
Configure Device Parameters
151
Configure Remaining Open/Closed
156
Configure Multi-Factor Authentication
158
Configure Card Reader Authentication Mode and Schedule
160
Configure First Person in
162
Configure Anti-Passback
163
Configure Device Parameters
164
Configure Linkage Actions for Access Control
170
Configure Client Actions for Access Event
170
Configure Device Actions for Access Event
171
Configure Device Actions for Card Swiping
172
Configure Device Actions for Person ID
174
Door Control
175
Control Door Status
175
Check Real-Time Access Records
176
Event Center
177
Enable Receiving Event from Devices
177
View Real-Time Events
178
Search Historical Events
180
Time and Attendance
183
Configure Attendance Parameters
183
Add General Timetable
190
Add Shift
193
Manage Shift Schedule
196
Manually Correct Check-In/Out Record
199
Add Leave and Business Trip
200
Calculate Attendance Data
201
Attendance Statistics
203
System Configuration
206
Set General Parameters
206
Set Picture Storage
207
Set Alarm Sound
208
Set Access Control and Video Intercom Parameters
208
Set File Saving Path
209
Set Email Parameters
209
Operation and Maintenance
210
Remote Configuration (Web)
210
View Device Information
211
Change Device Password
212
Time Management
212
System Maintenance
213
Configure RS-485 Parameters
214
Security Mode Settings
215
Network Parameters Settings
215
Report Strategy Settings
215
Network Center Parameters Settings
216
Configure SIP Parameters
216
Set Relay Parameters
216
Set Access Control Parameters
217
Set Face Recognition Terminal Parameters
217
Configure Face Picture Parameters
218
Configure Supplement Light Parameters
219
Set Device no
220
Configure Video and Audio Parameters
220
Configure Volume Input or Output
220
Operate Relay
220
View Relay Status
220
Appendix A. Tips When Collecting/Comparing Face Picture
222
Appendix B. Tips for Installation Environment
224
Appendix C. Dimension
225
Appendix D. Communication Matrix and Device Command
226
4
