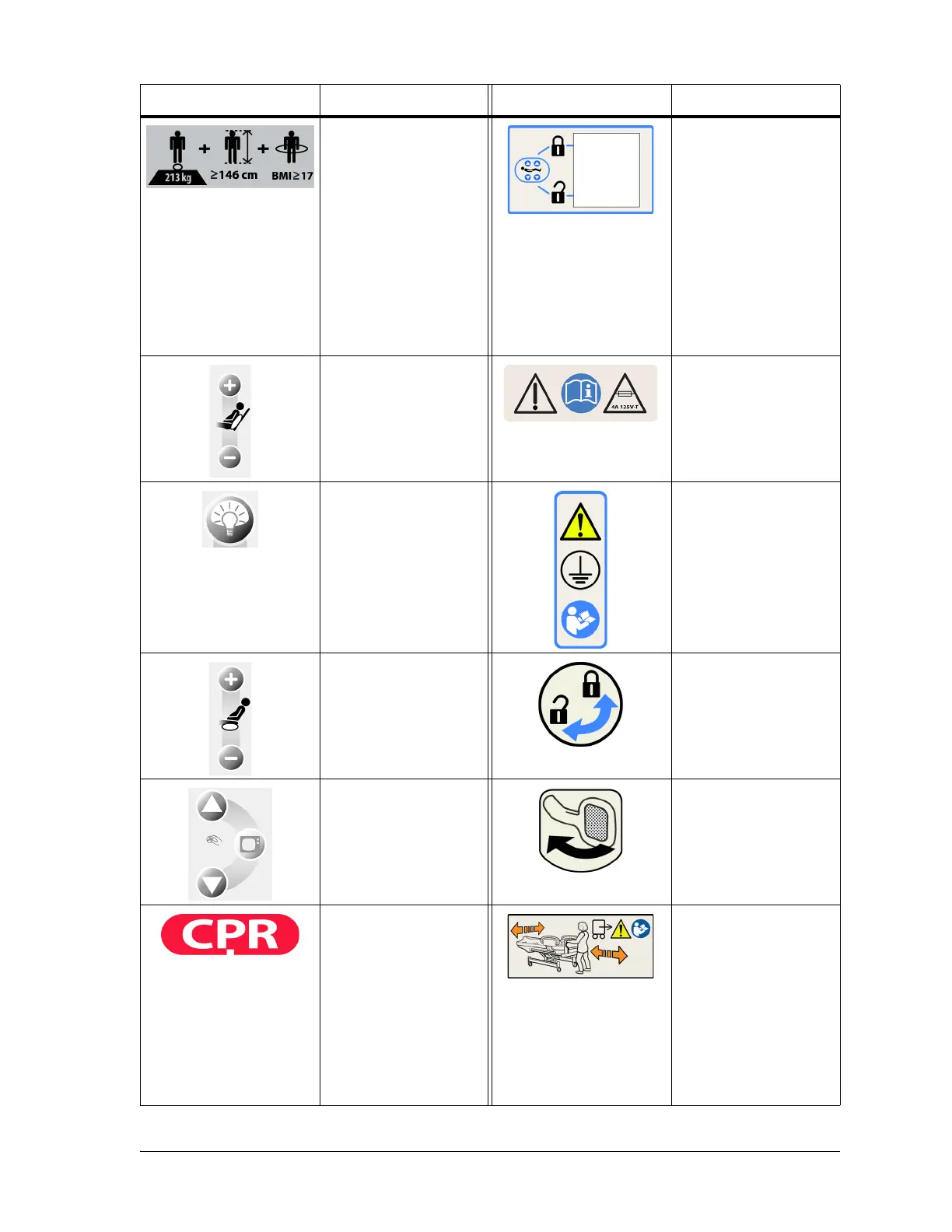

Symbols
8 Affinity® 4 Birthing Bed Instructions for Use (USR025 REV 13)
Medical Bed for Adults.
(P3700E Serial Numbers
after those that begin
with S361AA)
Lockout control label—
The switch in the up
position indicates the
lockout control is on.
The switch in the down
position indicates the
lockout control is off
(refer to the section
titled “Lockout
Controls” on page 11
for lockout status
information).
Back section mattress
(lumbar) control.
Caution: Identifying
power inlet fuse or a
battery power inlet
fuse. Consult
accompanying
documentation.
Room Light On/Off
control.
Warning: Protective
earth ground—Must
consult accompanying
documentation. Beds
with grounding post
only.
Seat section mattress
control (optional).
Lock and unlock
position of the calf
support.
TV On/Off/Audio
control (optional).
Calf support release
lever.
CPR function—
Identifies the release
lever that can be used
to manually drop the
inclined head section,
in order that
cardiopulmonary
resuscitation can be
performed without
delay.
Warning: Transport
label. Must consult
accompanying
documents.
Symbol Description Symbol Description
