Accessories
Affinity® 4 Birthing Bed Instructions for Use (USR025 REV 13) 31
CALF SUPPORTS—P3705, AND
P35745
The P3705 calf supports are permanently
attached to the foot support for easy
access. The removable P35745 calf
support (not shown) is fully padded with
telescoping height adjustment; it is
installed the same as the P7625C and
P7634C full leg supports (see page 32).
To help prevent personal injury or equipment damage, obey these warnings:
• Warning—Make sure the calf supports are securely locked in place before use.
• Warning—Keep hands clear of pinch and contact points while adjusting the calf supports.
To Adjust for Use
1. Fold in the hinged mattress.
2. Rotate the foot supports all the way upward, and outward.
3. Pull the release latch, and rotate the calf support to the upright position. The calf supports lock
when in the upright position.
4. Adjust the calf support using the release handle.
• To unlock the calf support, pull the release handle a 1/4 turn toward the foot end. To lock it,
push the release handle a 1/4 turn toward the head end.
Check for pressure points, and make appropriate adjustments. For TALL PATIENTS, angle the support
downward. For SHORT PATIENTS, angle the support upward.
The maximum safe working load is 60 lb (27 kg).
COMFORT PAD—P3612TPA
The comfort pad is placed on top of the mattress and fitted securely around the mattress corners. It rolls
up into a compact bundle for storage. This pad provides 1” (25.4 mm) of high density viscoelastic foam
and fits 4” and 5” mattresses on all Affinity® models.
DISPOSABLE FUNNEL DRAPE—P7834
The funnel drape tucks into the fluid basin when the end of the bed is removed. The drape should be
placed over the bottom sheet before the patient gets into bed, with the soft, absorbent surface next to
the patient, waterproof side down.

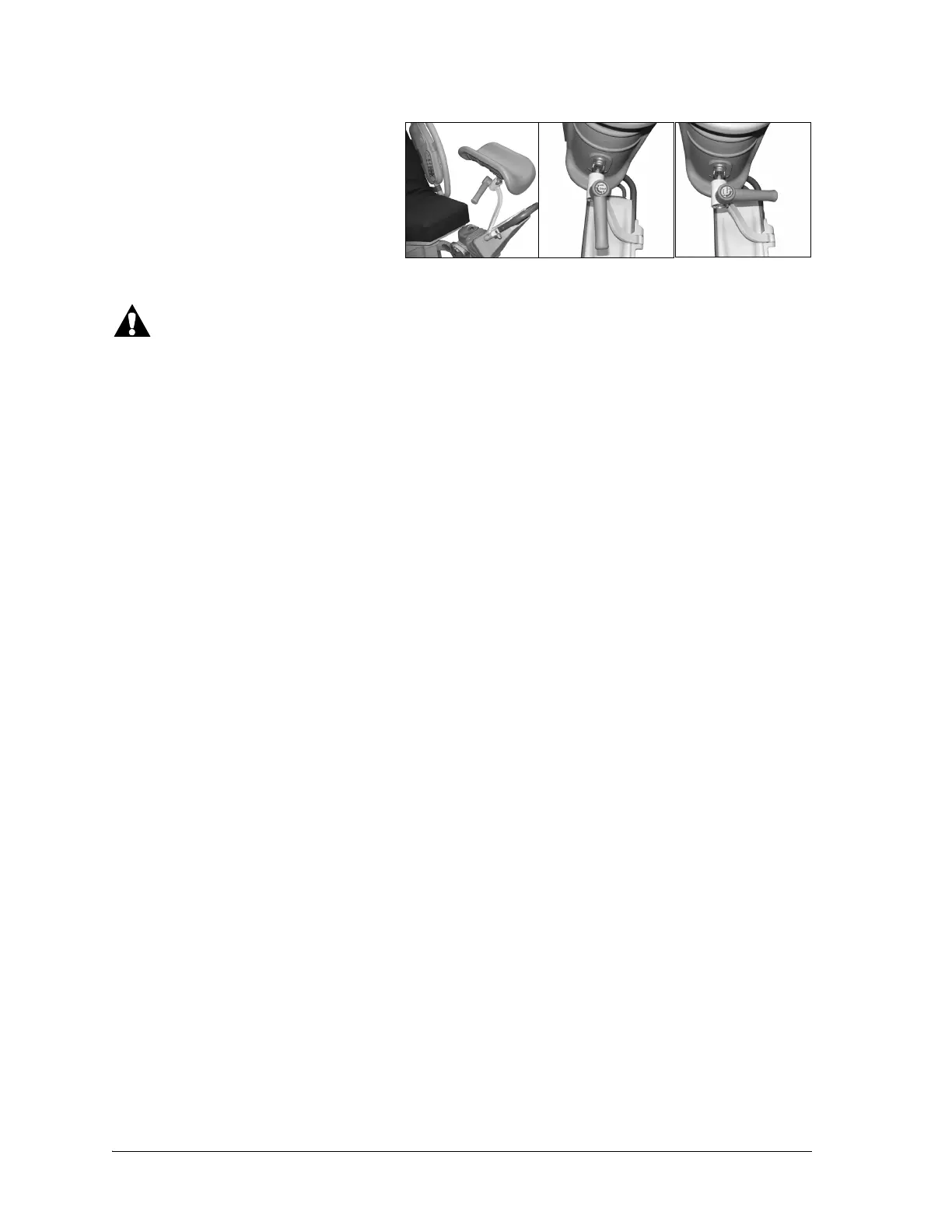

Release Handle (P3705A shown)
Unlocked Locked
To Next Page
