Bed Frame Features
Affinity® 4 Birthing Bed Instructions for Use (USR025 REV 13) 17

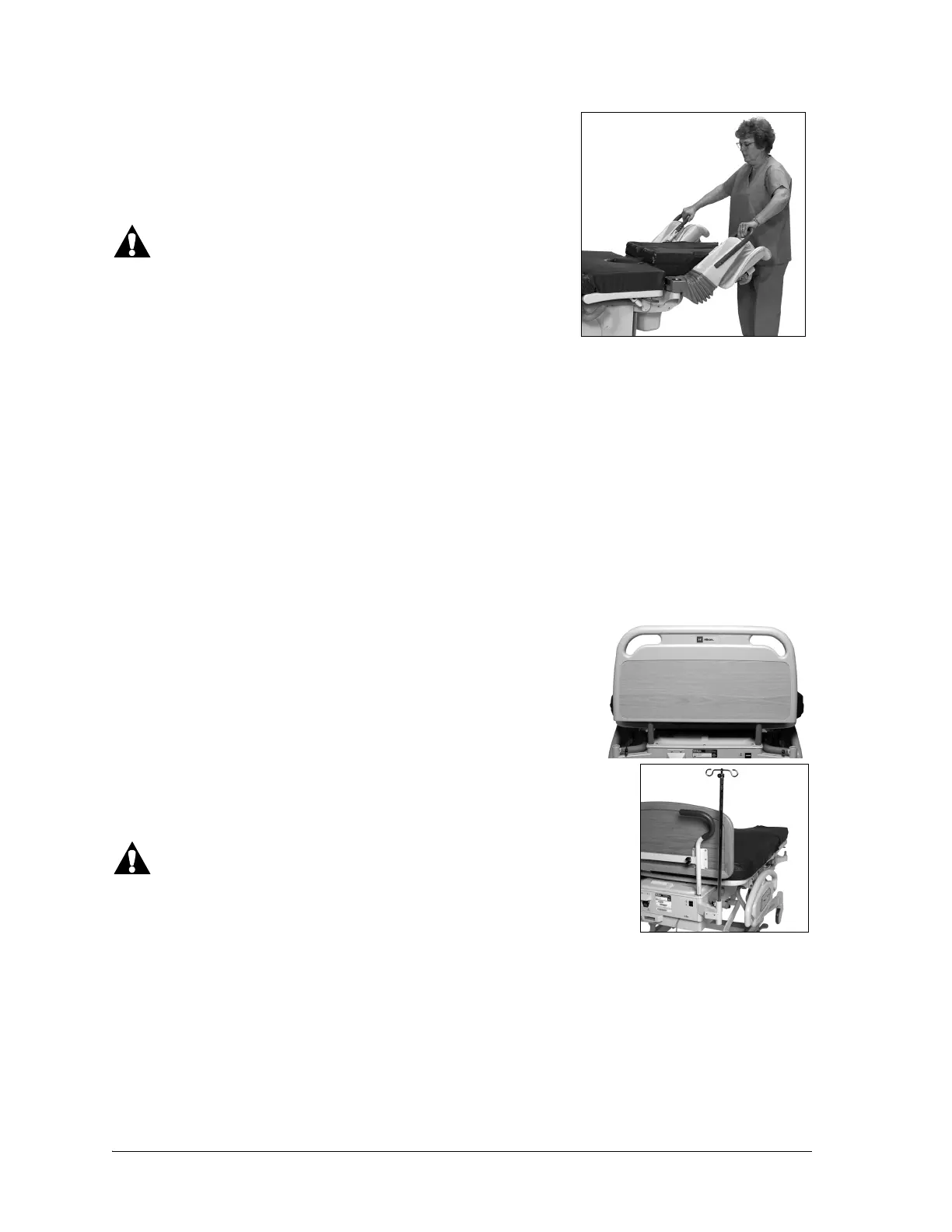

ONESTEP® FOOT SUPPORTS
The OneStep® Foot Supports can be simultaneously positioned up
or down, through use of the motor powered foot section yoke. This
foot section yoke controls the overall height up and down. Each
support can be independently positioned by using the mechanical
release latches at the end of the foot supports.
To help prevent injury and/or equipment damage, obey the
following warnings:
• Warning—When you adjust the foot supports, stay clear
of pinch and contact points.
• Warning—Make sure the foot supports are securely
locked in place before use.
To Adjust the Foot Supports
• To position the patient’s legs, squeeze the release lever and rotate the foot support. The foot
support rotates upward and outward from 0° to 85°.
• To return to the storage position, squeeze the release latch again, and return the supports to
the desired position.
The maximum safe working load is 150 lb (68 kg).
HEADBOARD
The headboard includes built-in handles which aid in steering control
and increase mobility. The headboard assembly is removable.
To remove—grasp the hand holds firmly, and lift up.
To install—align the headboard sockets with the posts on the bed
frame, and lower the headboard until it rest on the bed frame.
IV POLE
The bed comes equipped with one IV pole, stored at the head end of the bed
on the headboard. The IV pole sockets are located at each corner of the bed
at the head end.
To help prevent injury or equipment damage, obey these warnings:
• Warning—Do not exceed the 40 lb (18 kg) load capacity of the IV
pole.
• Warning—Do not exceed the 2.5 lb (1.1 kg) load capacity of the hook.
To install—remove the IV pole from the holders. Insert the pole into the desired socket, and turn
clockwise until it drops fully into the socket and locks into place.
The maximum safe working load is 25 lb (11 kg).
