Bed Frame Features
Affinity® 4 Birthing Bed Instructions for Use (USR025 REV 13) 15

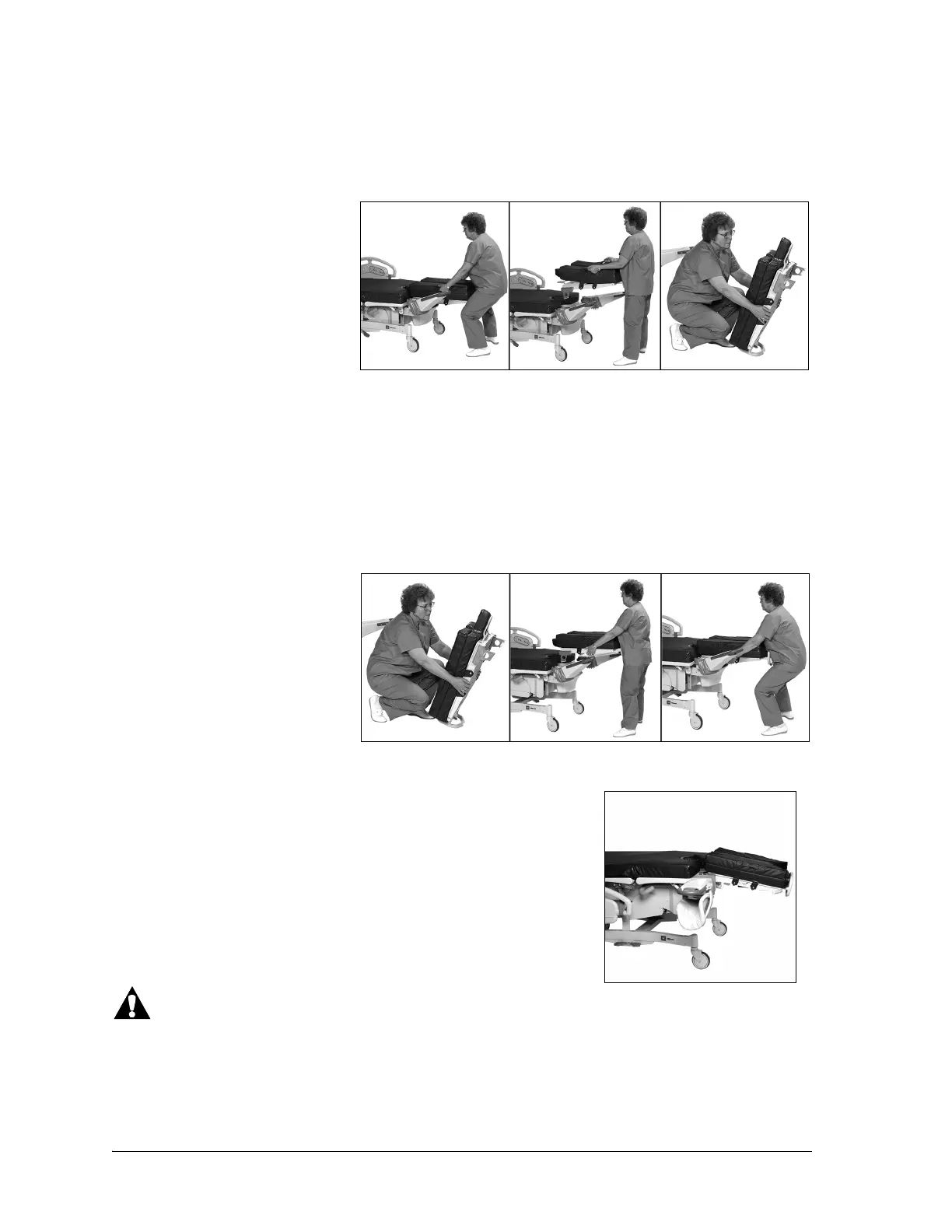

• Slide-Off Foot Section: Squeeze the release levers to disengage the foot section, and slide the
section toward you (bending your knees) while taking a step backward.
• Lift-Off Foot Section: With the knees bent, place it on the floor with the perineal stand down
to hold it upright.
If the foot section is well below the waist and cannot be adjusted:
• Turn the mattress wings
inward.
• Pivot the foot supports
laterally.
• Approach the foot section
from an angle (side or
front).
• Place one leg forward and
one leg back, bending the
knees slightly.
• Grasp the handles, and hold the foot section as close to the body as possible.
• Lift-Off Foot Section: Lift and slide the foot section toward you while taking a step backward.
• Slide-Off Foot Section: Squeeze the release levers to disengage it, and slide the foot section
toward you while taking a step backward.
• Turn the foot section so the stand is down and, with the knees bent, place it on the floor.
To Install
1. Grasp the foot section with
both hands.
2. Position the foot section onto
the mounting brackets located
on the bed frame.
3. Lift-Off Foot Section: While
holding the foot section level,
lift and slide it until the latches
securely engage and a level
surface is achieved.
4. Slide-Off Foot Section: While holding the foot section level, push
it until the latches securely engage and a level surface is achieved.
5. Pull on the foot section to ensure that it is locked into position.
If the foot section is not level, this is an indication that it is not
locked into position.
6. Lift the foot section to the level position and push until the latches
securely engage.
Warning—The foot section must be fully secured under the mattress
to provide safe support. Possible personal injury or equipment damage could occur.
The foot section must be locked into place. Pull to ensure that the latch is engaged.
Foot Section Not Locked Into
Position
