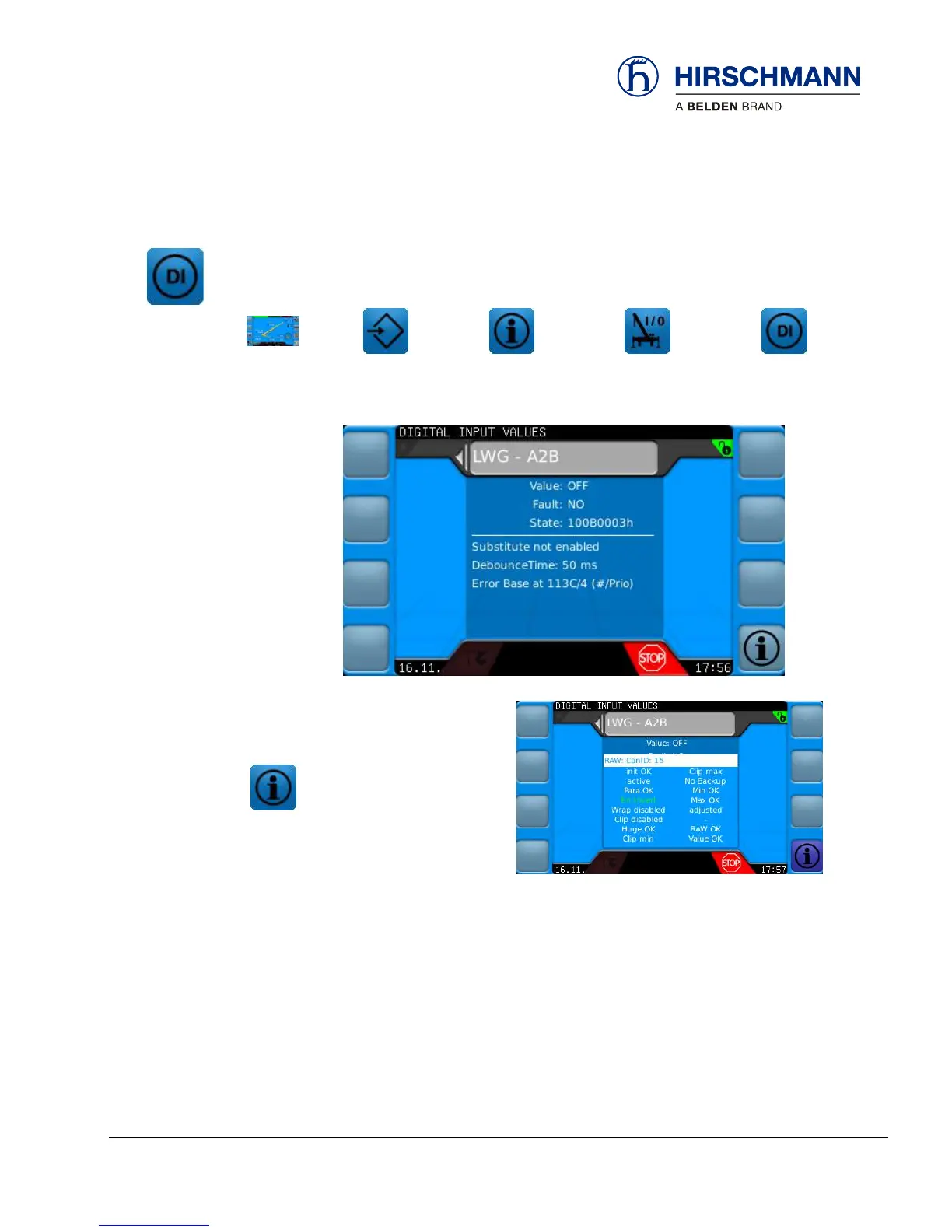

3.1.2.1.1 Digital Input Screen
The Digital Input Screen shows all of the configured digital inputs for the system, including the A2B
signal. These inputs are wired to the DIO Box; refer to your crane system wiring diagram for details.
Use the rotary knob to scroll between all available inputs.




MAIN
WORKING
SCREEN
OP-MODE
CONFIRM
INFORMATION
SELECTION
SENSOR
INFORMATION
DIGITAL
INPUTS
Additional Information
The following information can be found on this screen:
 Value Current Value of the Input (False = Low, True = High)
 Fault Indication whether an error has occurred
 State Current Status of value
 Substitute According to Project File Configuration
 Debounce Time According to Project File Configuration
 Error Base Base error priority of the error when error occurs
 Raw Source Available in Additional Information
