Hirschmann qSCALE maestro User Manual

WIKA Mobile Control LP
1540 Orchard Drive
Chambersburg, PA 17201
qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
Service : (717) 217-2250
Parts / Sales : (717) 217-2269
www.wika-mc.com
22 /76
HIRSCHMANN MCS

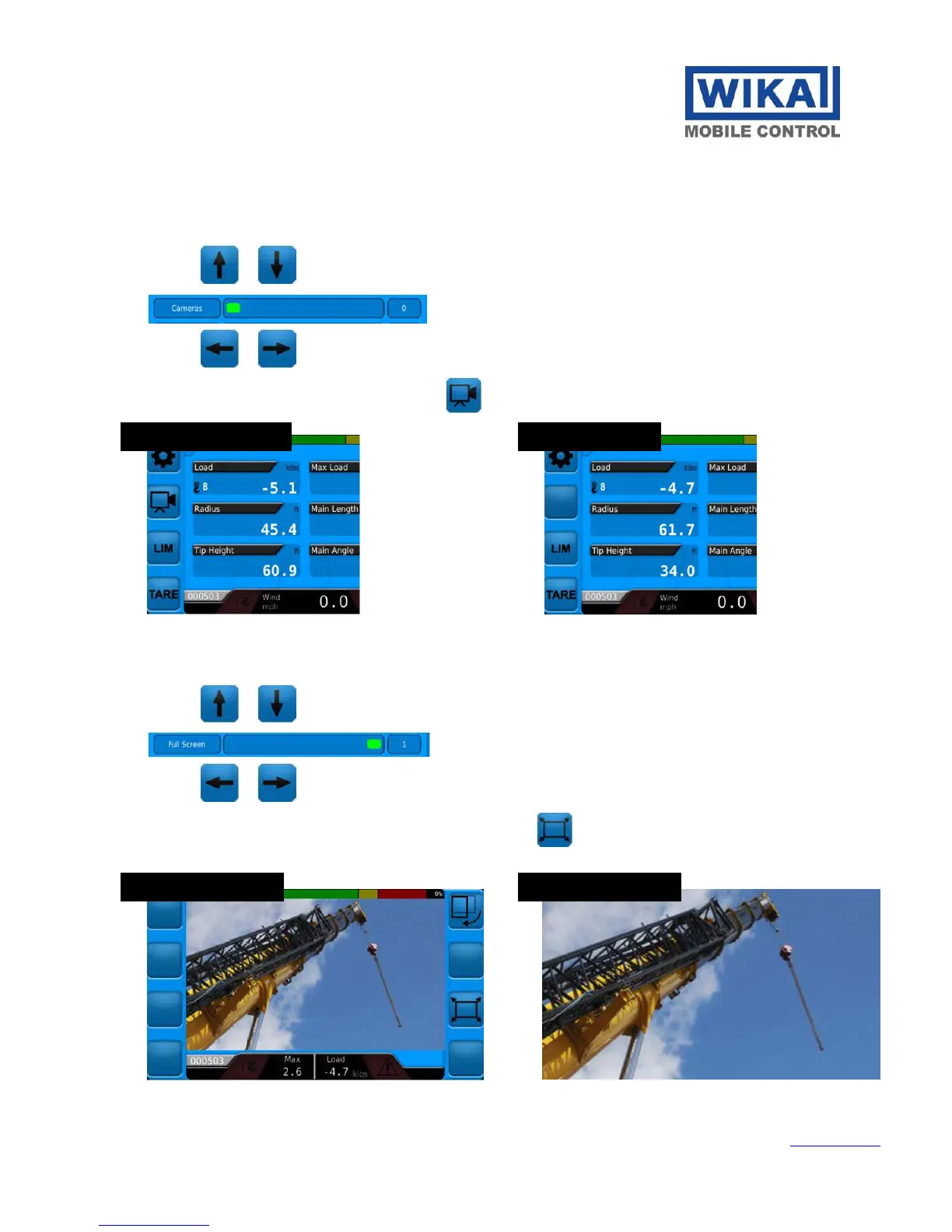

 Toggling Cameras

 Use the or keys to select the Camera option.

 Use the or keys to set the Camera option to 0 (off) or select the number of cameras to activate.
Setting the Camera option to 1 or more enables the function key from the Main Operating Screen.
Camera(s) On: Camera Off:
 Toggling Camera Full-Screen Style
 Use the or keys to select the Full Screen option.

 Use the or keys to set the Full Screen Style to 0 (partial full screen) or 1 (complete full screen).
Setting the Full Screen Style to 1 (complete full screen) causes the function key to fully fill the screen with the selected
camera feed covering the function keys and Information Bar
Full Screen 0: Full Screen 1:

Hirschmann qSCALE maestro Specifications

General

Brand	Hirschmann
Model	qSCALE maestro
Category	Touch Panel
Language	English
