Hirschmann qSCALE maestro - Junction Box Wiring Diagram

WIKA Mobile Control LP
1540 Orchard Drive
Chambersburg, PA 17201
qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
Service : (717) 217-2250
Parts / Sales : (717) 217-2269
www.wika-mc.com
65 /76
HIRSCHMANN MCS

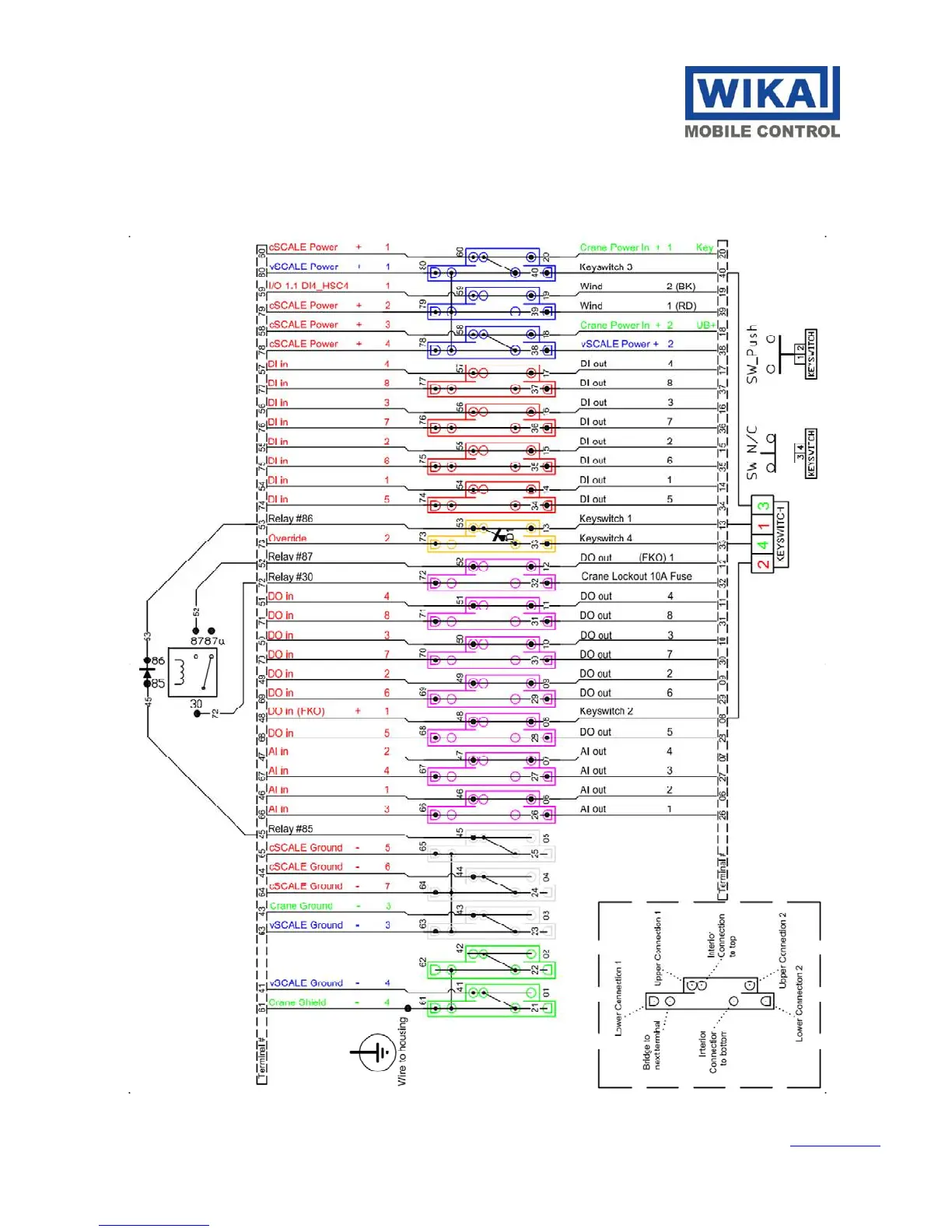

7.3 Junction Box Wiring Diagram
