WIKA Mobile Control LP
1540 Orchard Drive
Chambersburg, PA 17201
qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
Service : (717) 217-2250
Parts / Sales : (717) 217-2269
www.wika-mc.com
59
/76
HIRSCHMANN MCS

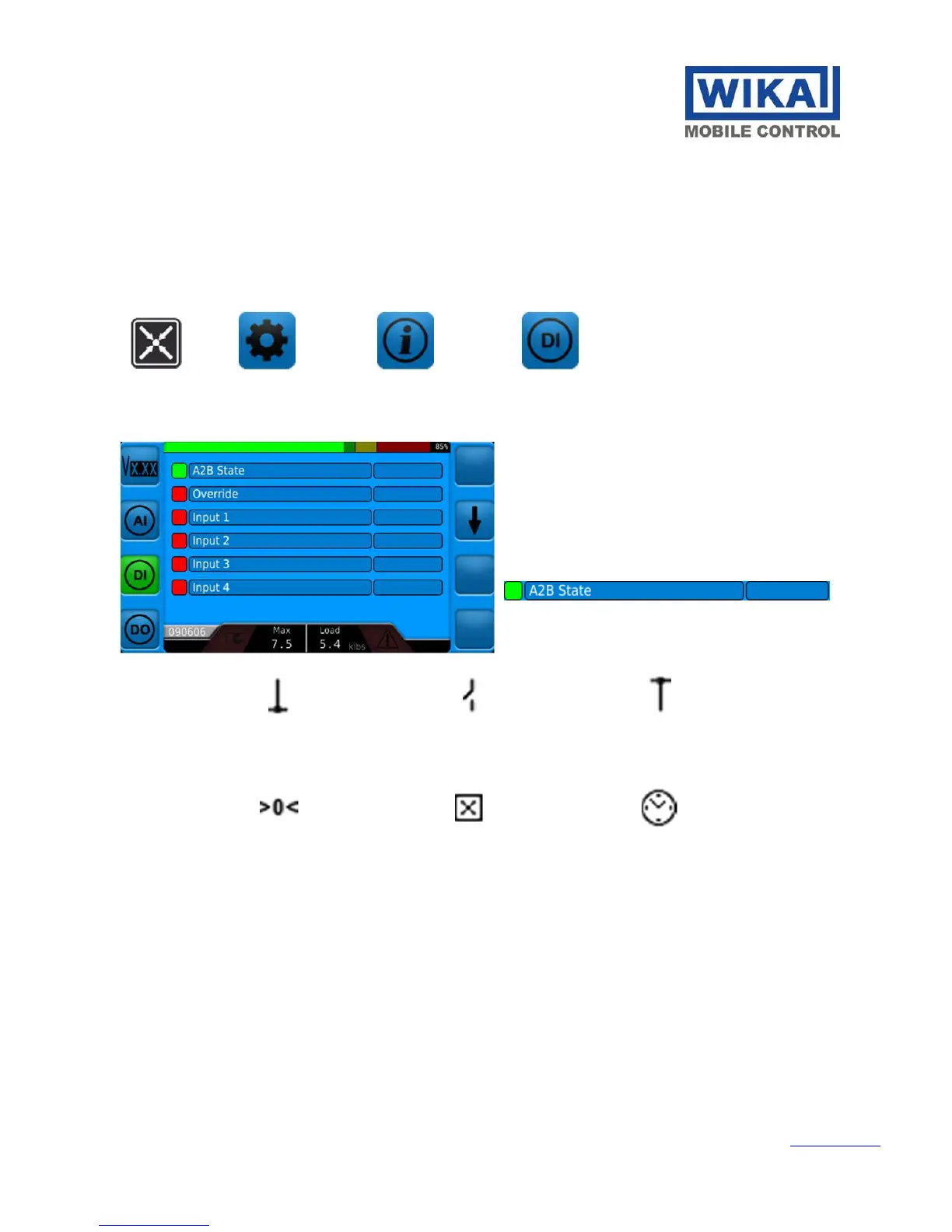

6.11.2 Readings of Digital Inputs
To determine whether there is a problem with a digital input, the system has a built in “Digital Input”
screen to make trouble-shooting easier.
HOME SETTINGS MACHINE
INFO
DIGITAL
INPUTS
The Digital Inputs screen shows the current readings
from each Digital Sensor.
The colored box on the left indicates the status of the
input.
Red for Low.
Green for High.
If any problems are detected with the input an error icon
will appear in the box to the right:
Short to Ground Open Circuit Short to Battery
Not Calibrated Deactivated Response Timeout
No Signal From Sensor
