5.2 Reading the Event Recorder
The user is able to download the stored event records via the vSCALE console to a USB drive. The USB drive must be for-
matted with a fat32 filesystem before downloading can be completed.
  

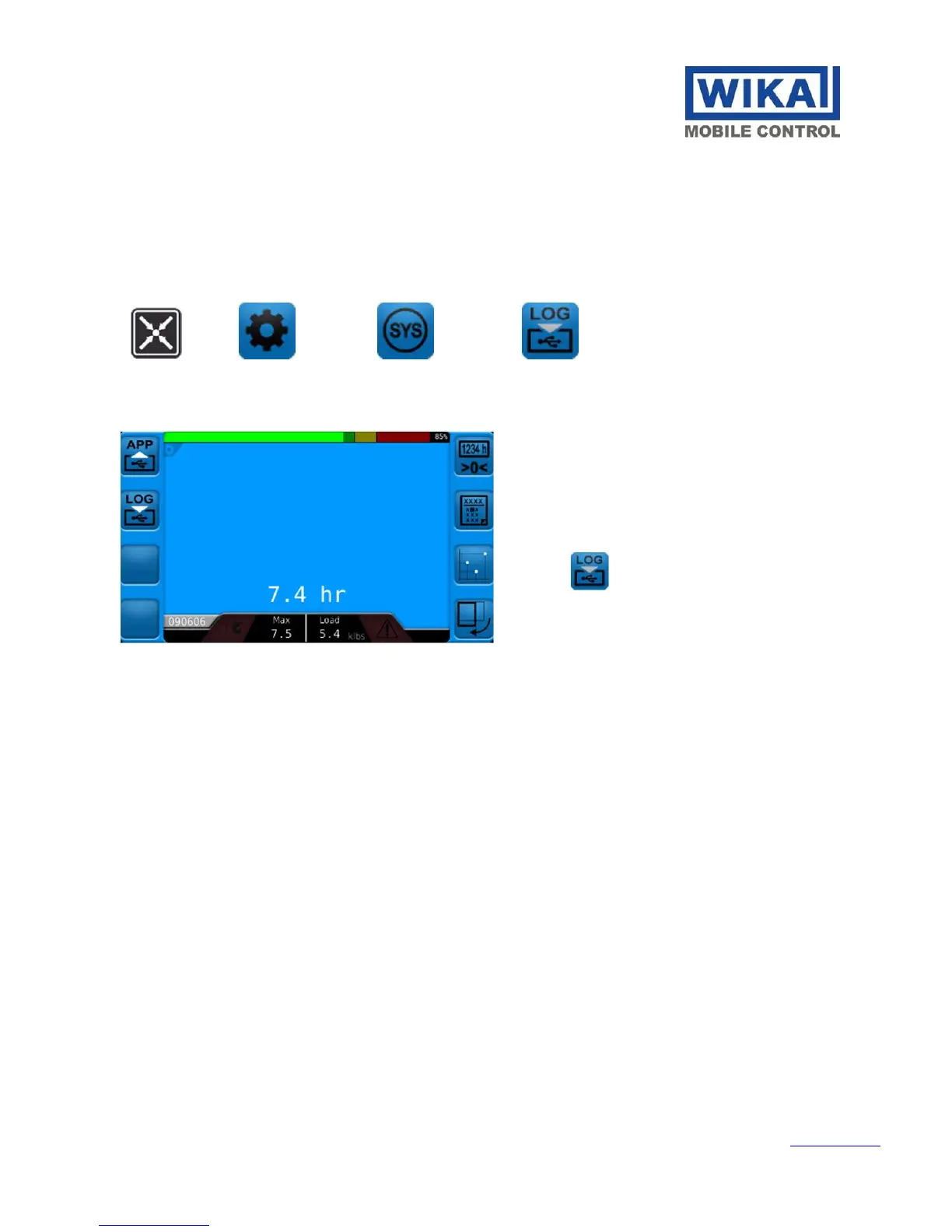

HOME SETTINGS SYSTEM
INFORMATION
LOG DATA
Obtain a blank FAT32 USB drive.
Insert the blank USB drive into the USB port on the front of
the vSCALE console.
Press the function button to download the record-
ed events to the USB drive.
