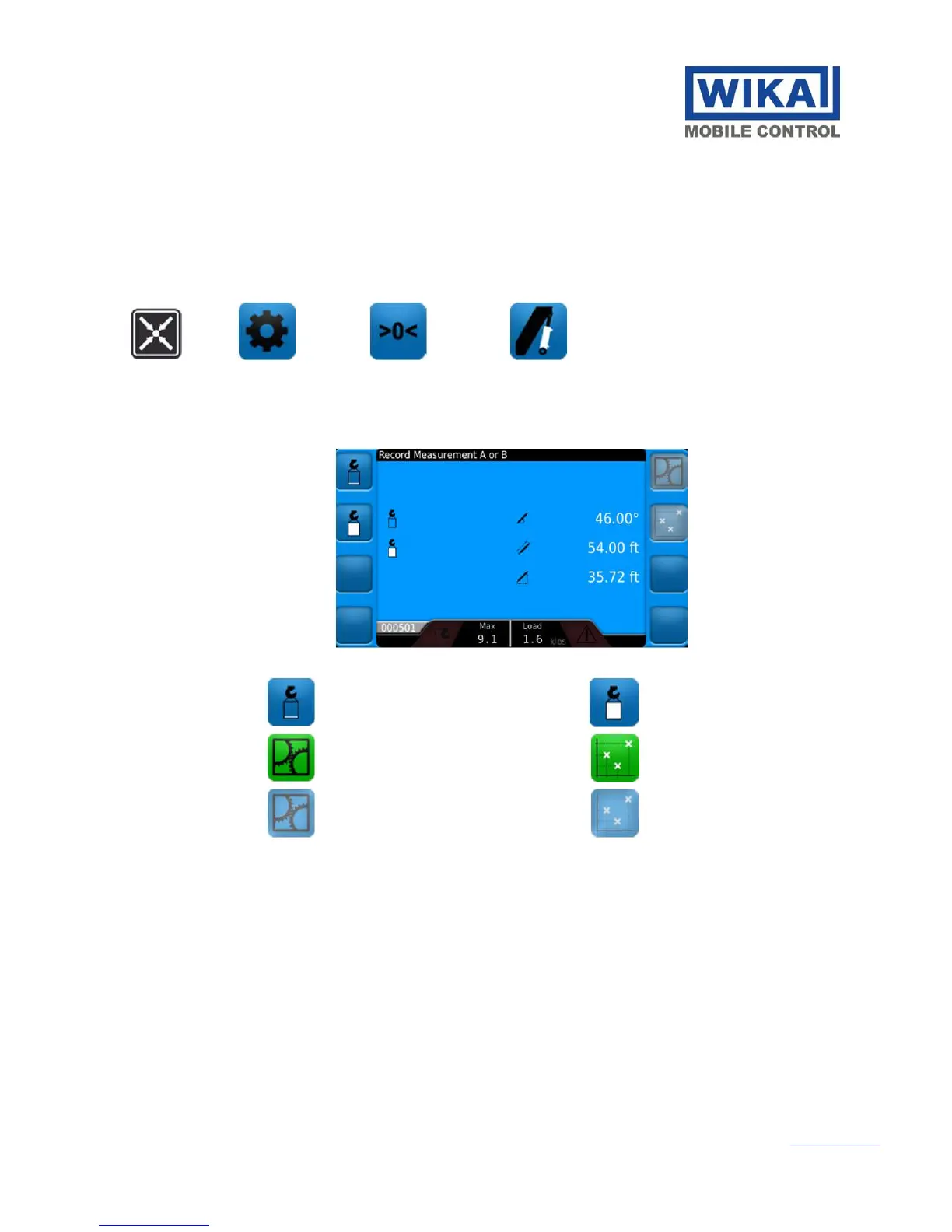

4.3.3 Luffing Cylinder Tuning
Description
Luffing Cylinder Tuning adjusts the lift cylinder rod and piston geometric data to correct system-
atic errors in the load display. The adjustment computed applies equally to all operating modes
at all length and angle points.
  
HOME SETTINGS SENSOR
CALIBRATION
LUFFING
CYLINDER
TUNING
Function Keys
Set Empty Load Weight
(Measurement A)
Set Fully Load Weight
(Measurement B)
Compute Factors Apply computed factors to
controller
Function disabled until both loads
measured
Function disabled until factors
computed
