WIKA Mobile Control LP
1540 Orchard Drive
Chambersburg, PA 17201
qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
Service : (717) 217-2250
Parts / Sales : (717) 217-2269
www.wika-mc.com
30
/76
HIRSCHMANN MCS
Before beginning perform the following
1) Configure the machine to a main boom operating mode.
2) Fully retract the boom.
3) Remove all weight from the main and auxiliary hoist hooks.
4) Configure the reeving to allow a pick of the largest known load available.

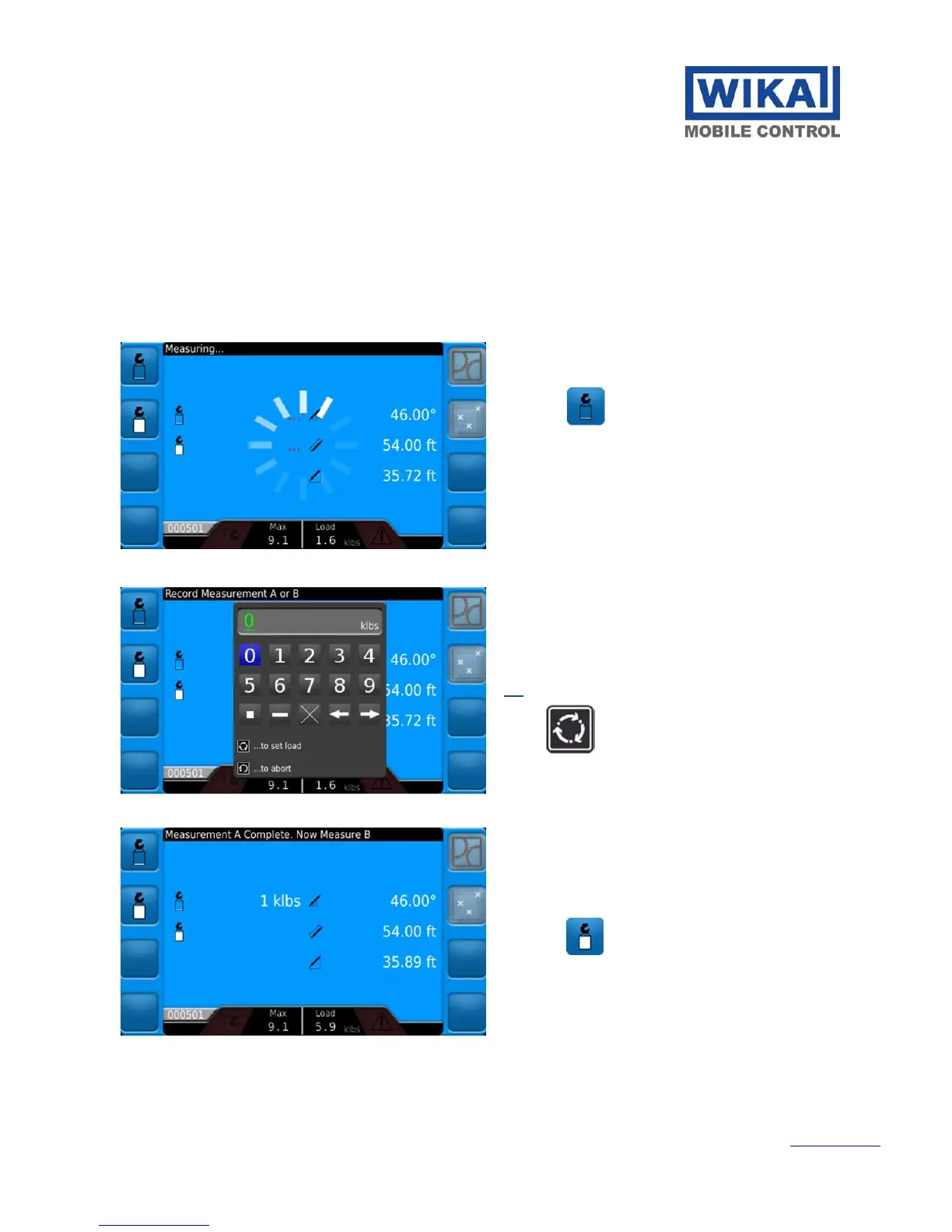

Remove any weight from the machine and fully retract the
boom.
Press the function key to begin setting the Empty
Load Weight
Allow a few moments for the measurement to complete.
The measurement will not complete if the piston pressure
is 0 or the rod and piston pressure are changing outside of
5 bar
Enter the weight currently attached to the hook.
If empty enter 0.
Use the rotary knob to select the numbers. (See Section
4.4 for detailed instructions.)
Press to confirm the weight as entered.
Pick a heavy and known weight.
Wait for the machine to settle.
Press the function key.
Allow a few moments for the measurement to complete.
The measurement will not complete if the piston pressure
is 0 or the rod and piston pressure are changing outside of
5 bar.
To Next Page
