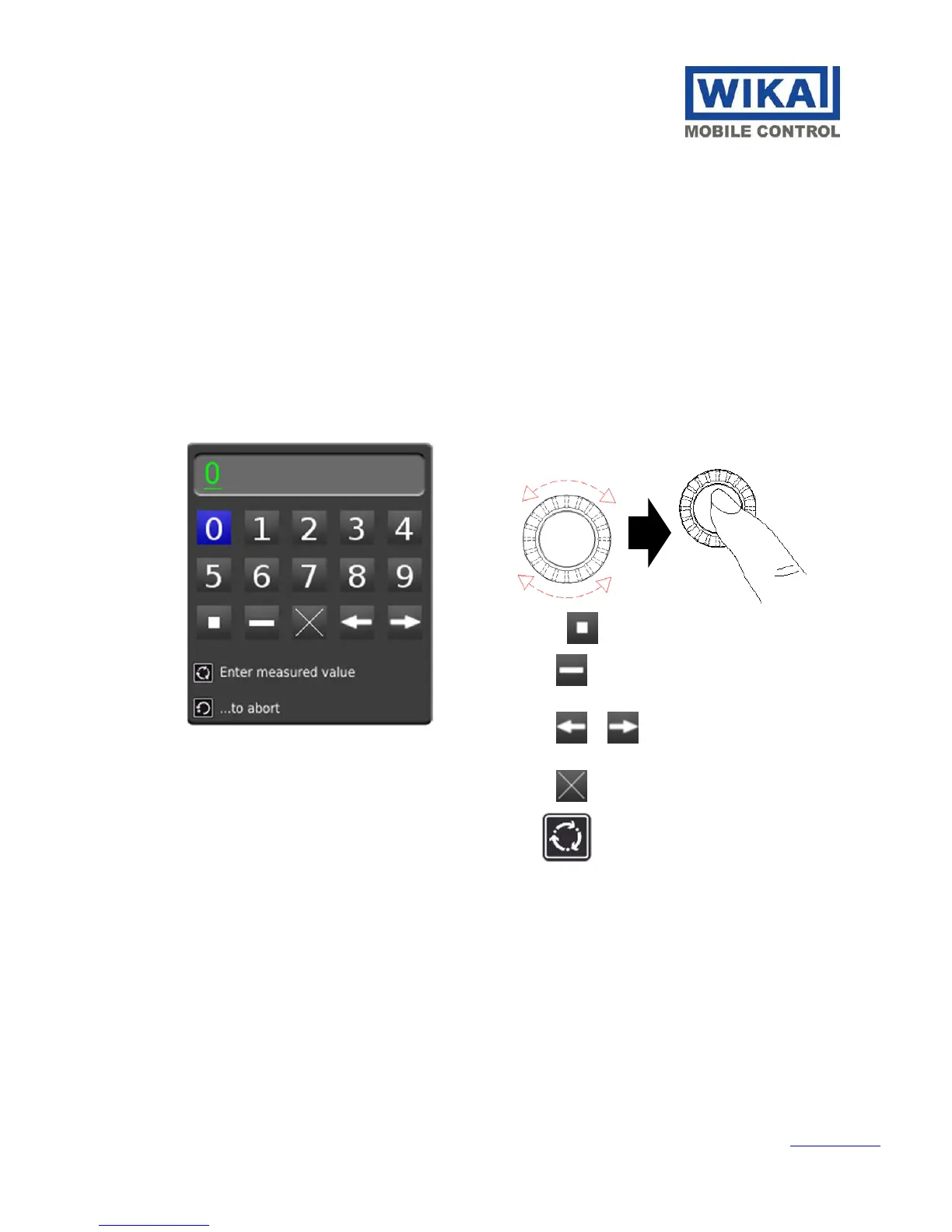

4.4 Entering Measurements
This section describes the process for entering numerical measurements into the dialog box while calibrating sensors.
Use the rotary knob to select the numbers.
Pressing the knob moves to the next digit and selects
right arrow.
Pressing the right arrow when the curser is to the right
of the last number confirms the entry
Press the
button to add a decimal point.
Use the
button to change the input between a nega-
tive or positive value.
Use the or buttons to select the number in the
chosen direction. (The selected digit turns green.)
Use the button to delete the currently selected digit.
Press to confirm the measurement value as en-
tered.
