Hirschmann qSCALE maestro User Manual

WIKA Mobile Control LP
1540 Orchard Drive
Chambersburg, PA 17201
qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
Service : (717) 217-2250
Parts / Sales : (717) 217-2269
www.wika-mc.com
28 /76
HIRSCHMANN MCS

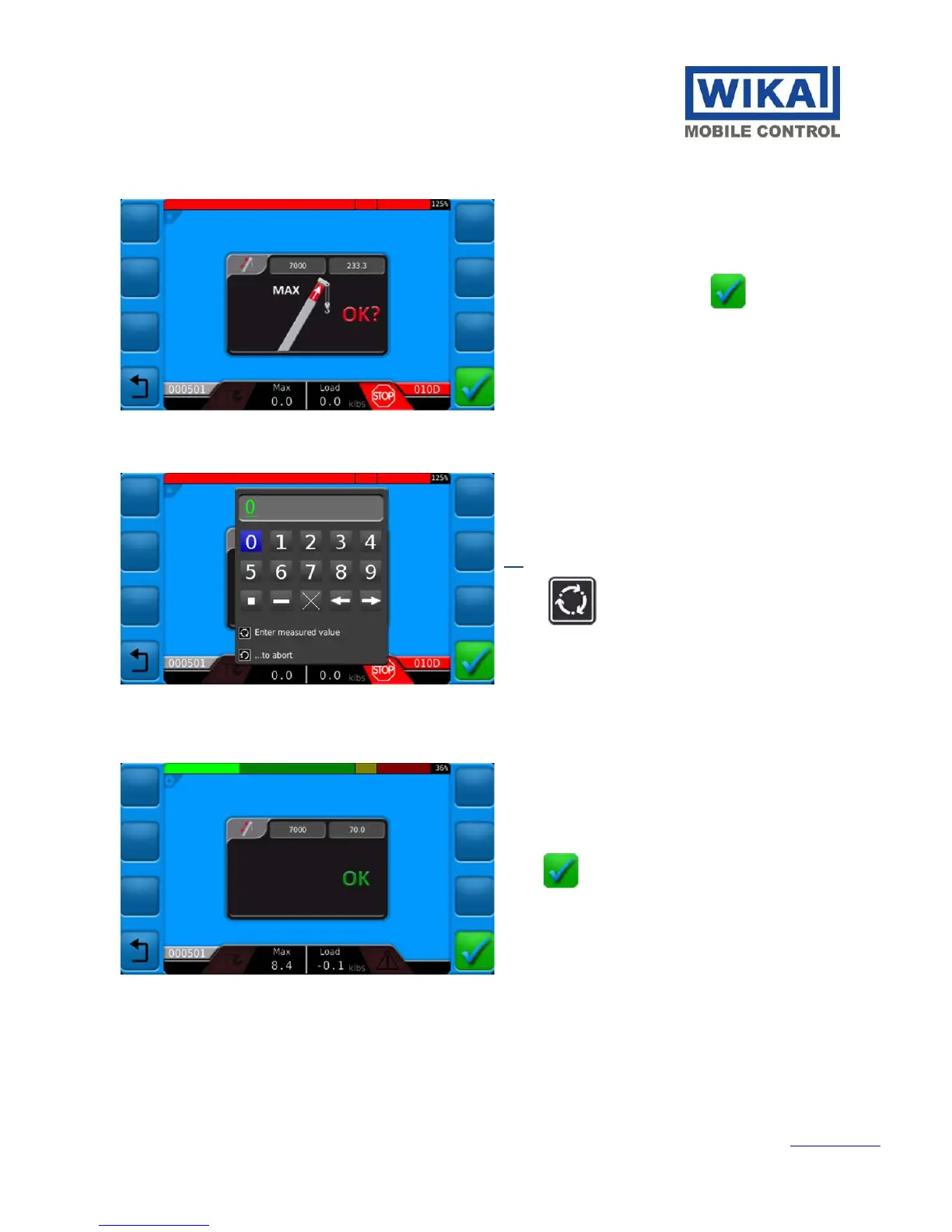

Fully extend the boom and press
Enter the Measured Length of the Boom
Use the rotary knob to select the numbers. (See Section
4.4 for detailed instructions.)
Press to confirm the measured boom length as
entered.
Calibration is complete.
Press to complete the boom angle calibration pro-
cedure
