3-15

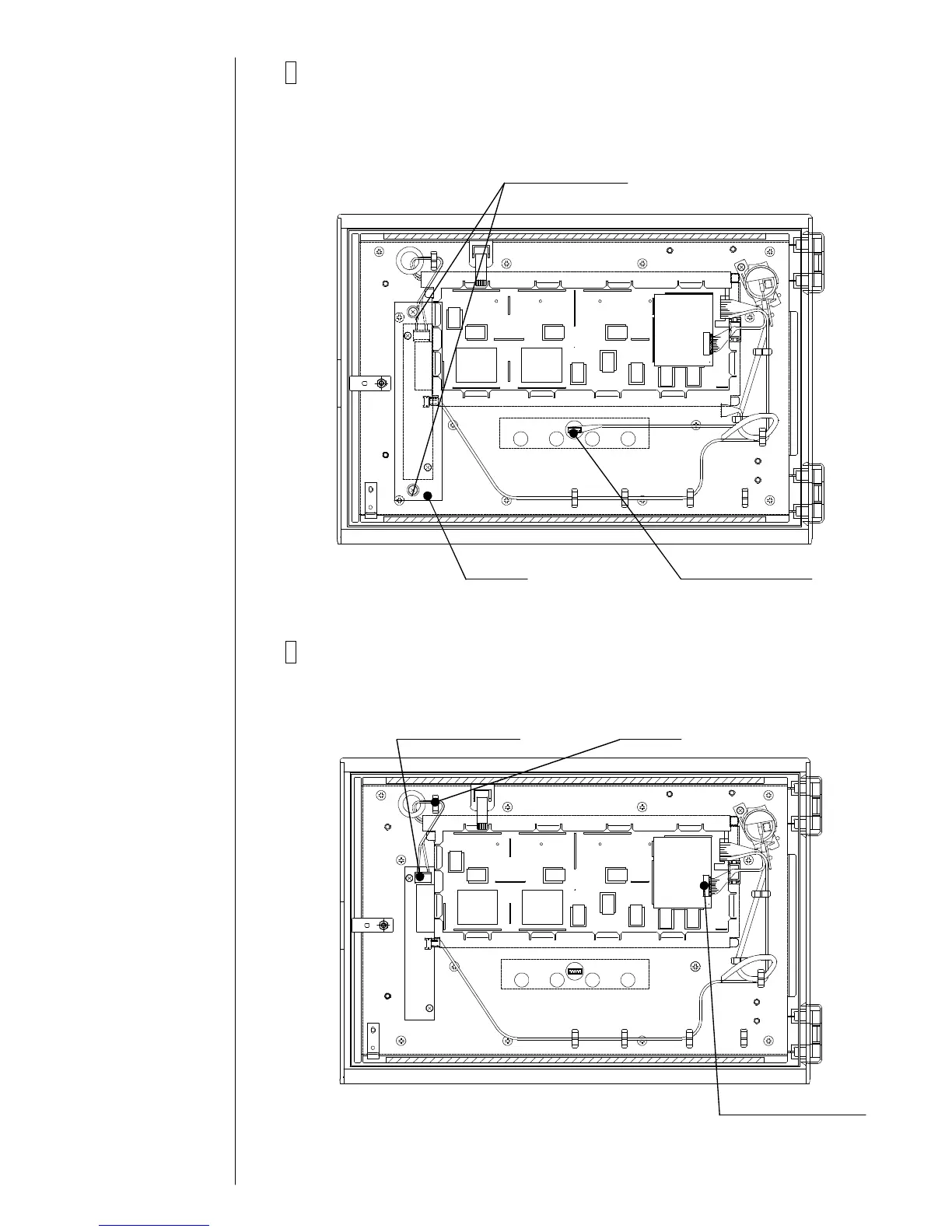

6Remove the fixing screws (2 pieces) of the cover and the cover.
and remove the connector for EZJ97 board.
7Remove the connector for LCD and the harness from the clamp
and the connector for LCD backlight.
Connector for
EZJ97 board
Cover
Fixing screws
(2pieces)
Connector for
LCD backlight
Connector for LCD
Clamp
