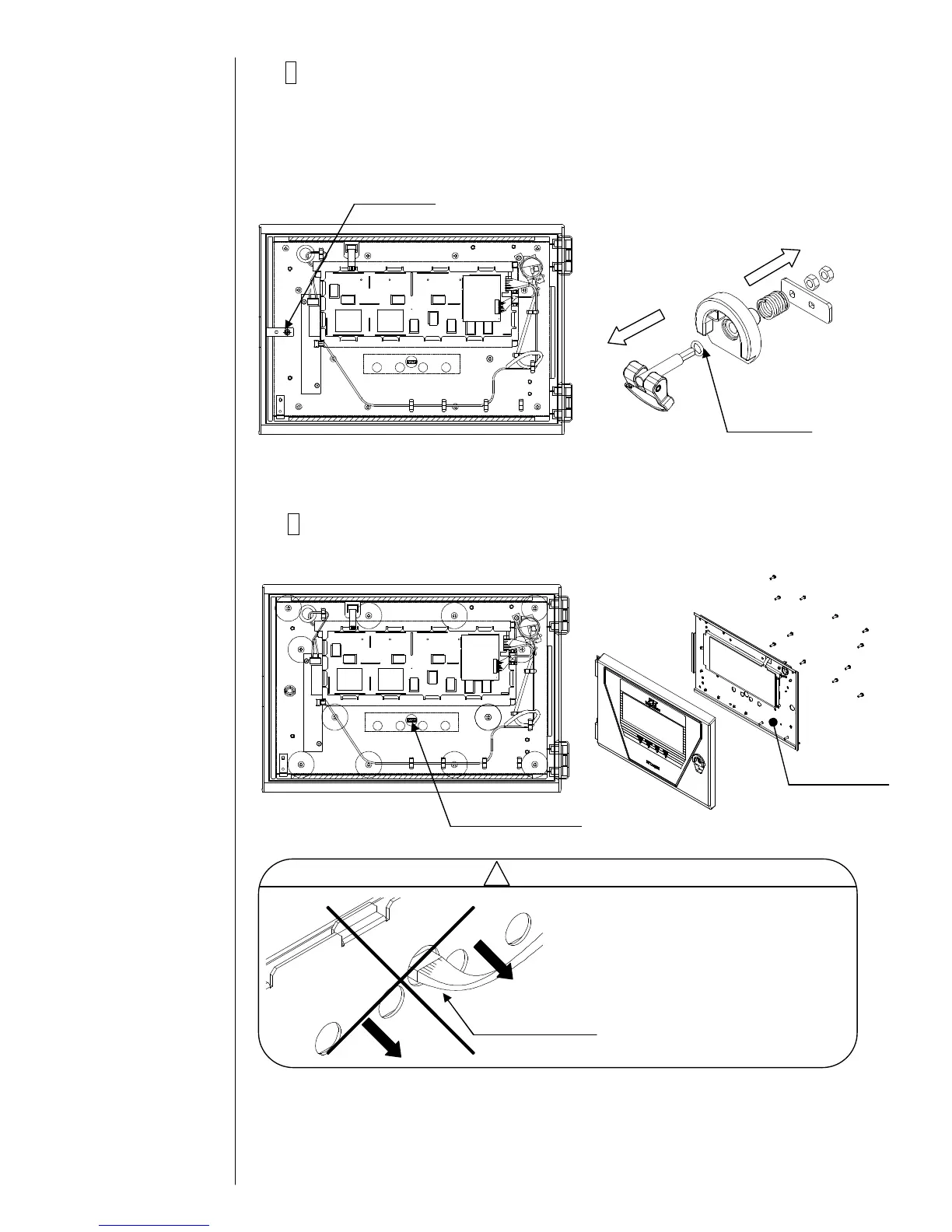

8Disassemble the door lock assembly as the diagram below indicates.
[Note] When disassembling the door lock assembly, do not lose
the O ring S6.
9Remove the fixing screws (12 pieces) of the LCD base and
remove the LCD base.
Door lock
assembly
【Door lock assembly】
O ring S6
LCD base
Connector for
EZJ97 board
Caution
!
Before removing the LCD base,
confirm to remove the connector
for EZJ97 board.
When the LCD base is removed
with the connector connected, the
harness might be damaged.
Connector for
EZJ97 board
