TROUBLESHOOTING

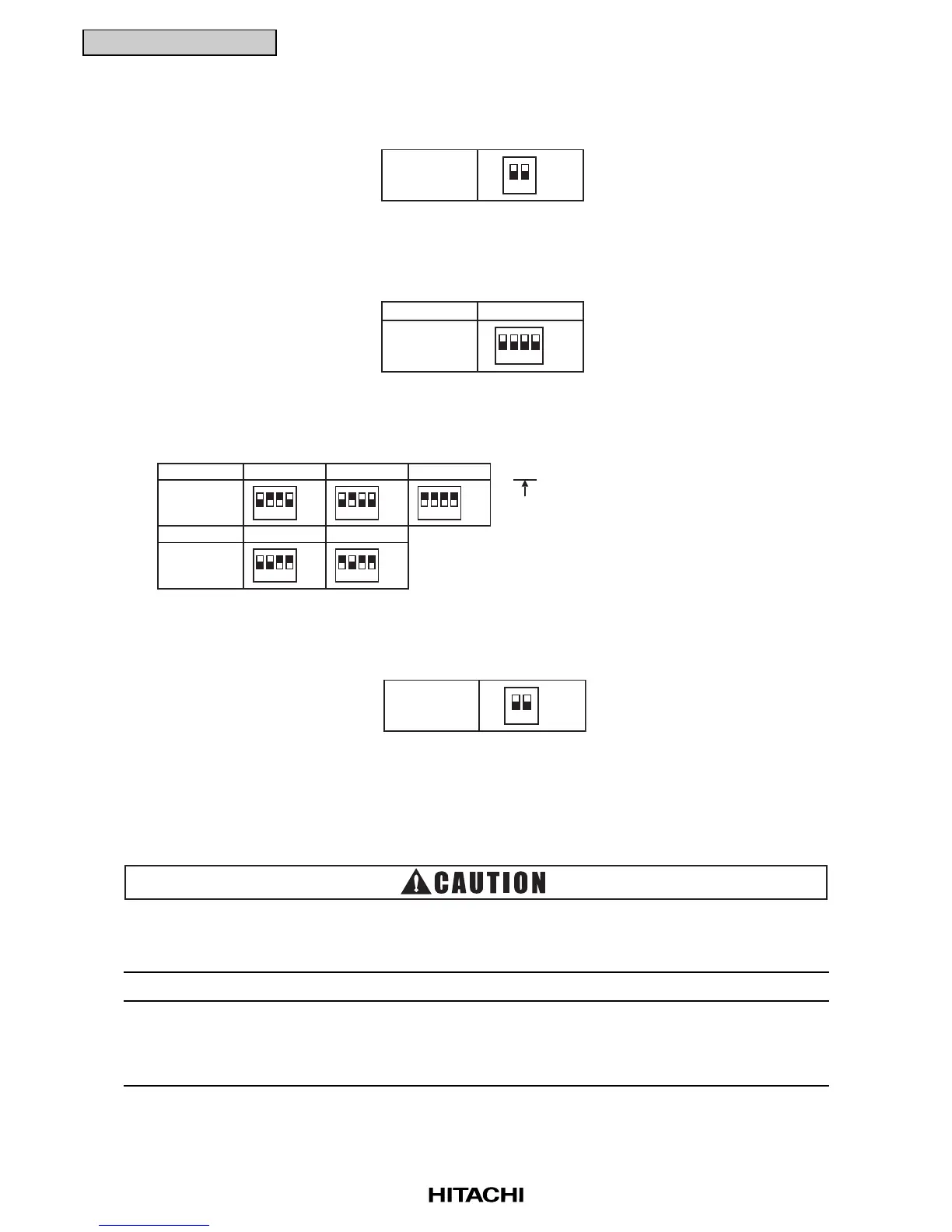

d. Capacity Adjustment Setting (DSW4: for RPF, RPFI, RPI-8,10 and RPC(Before Alteration))
No setting is required. Setting position before shipment is all OFF.
e. Refrigerant Cycle No. Setting (DSW5)
Setting is required. Setting position before shipment is all OFF.
f. Unit Code Setting (DSW6; Except for RCI and RPK Model)
No setting is required. Setting positions of the model code for indoor units are shown below.
g. Fuse Recover (DSW7) (for Auxiliary use)
No setting is required. Setting position before shipment is all OFF.
(2) Outdoor Unit
TURN OFF all power sources before setting. Without turning OFF, the switches do not work and the
contents of the setting are invalid. Mark of “■” indicates the position of dip switches. Set the dip
switches according to the figure below.
Check to ensure that the #8 pin of DSW5 is correctly set according to the power supply of the
unit. If the setting is different from the power supply of the unit, it may cause the unit stoppage
due to alarm or the breakdown of the compressor.
• By using switch DSW4, 7 and 8 the unit is started or stopped after 10 to 20 seconds after the switch is
operated.
• Make the outdoor unit No. clear to distinguish from other outdoor units for service and maintenance.
NOTE
12
ON
OFF
Setting
Pattern
1 234
ON
OFF
0.8 to 10
Horse-Power
Setting
Pattern
1 234
ON
OFF
1 234
ON
OFF
d
1 234
ON
OFF
e
1 234
ON
OFF
a
Model Code
RPI-0.8FSG1
Model Code
<Model Code>
(a) RPI-0.8FSG1 to RPI-10FSG1
(b) RCD-1.0FSG1 to RCD-5.0FSG1
(c) RPC-2.0FSG1 to RPC-5.0FSG1
(d) RPF-1.0FSG(E) and RPFI-1.0 FSG(E)
(e) RPF-1.5FSG(E) and RPFI-1.5FSG(E)
Setting
Position
1 234
ON
OFF
Model Code
Setting
Position
b c
12
ON
OFF
Setting
Pattern
