8 Electrical checks of main parts
Inverter
SMGB0136 rev.0 - 07/2021
159
8

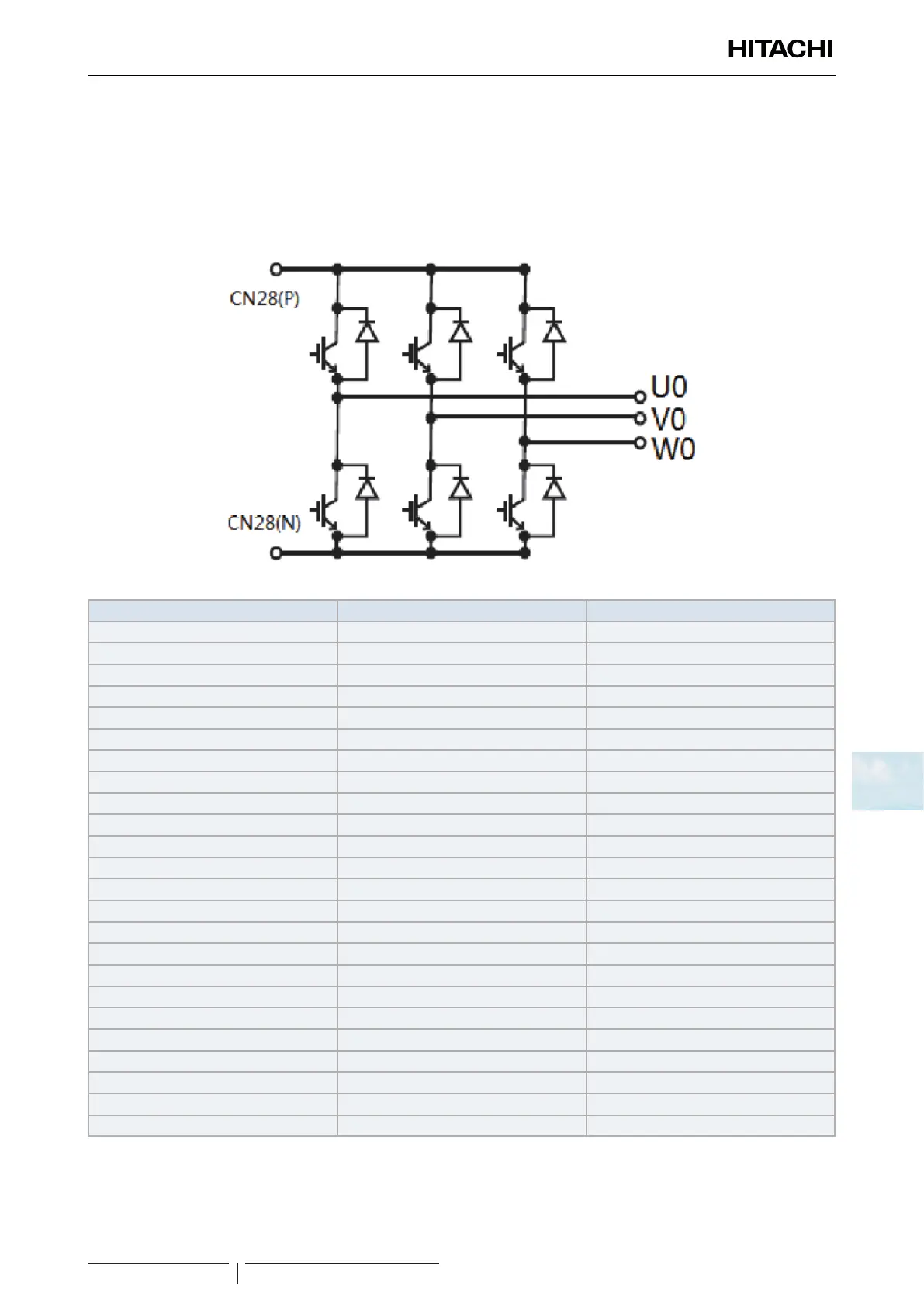

IPM Circuit of Driver Board (In case of using Digital Tester)
• The positive side (+) of tester: Red; The negative side (-) of tester: Black.
• Pre-charge circuit of the Inverter PCBA. If the positive side (+) of tester is connected to DCL1, and the negative side
(-) of tester is connected to CN28(P).
1 If the resistance is about 1k Ohm, it is OK.
2 If the resistance is about 0 Ohm or innity, it is damaged.
Test Point Analog Tester Result Digital Tester Result
(+)DCL2, (-)R More than 100k Ohm Overload
(-)DCL2, (+)R More than 1k Ohm 0.5V or smaller
(-)CN28(N), (+)R More than 100k Ohm Overload
(+)CN28(N), (-)R More than 1k Ohm 0.5V or smaller
(+)DCL2, (-)S More than 100k Ohm Overload
(-)DCL2, (+)S More than 1k Ohm 0.5V or smaller
(-)CN28(N), (+)S More than 100k Ohm Overload
(+)CN28(N), (-)S More than 1k Ohm 0.5V or smaller
(+)DCL2, (-)T More than 100k Ohm Overload
(-)DCL2, (+)T More than 1k Ohm 0.5V or smaller
(-)CN28(N), (+)T More than 100k Ohm Overload
(+)CN28(N), (-)T More than 1k Ohm 0.5V or smaller
(+)CN28(P), (-)U0 More than 100k Ohm Overload
(-)CN28(P), (+)U0 More than 1k Ohm 0.5V or smaller
(-)CN28(N), (+)U0 More than 100k Ohm Overload
(+)CN28(N), (-)U0 More than 1k Ohm 0.5V or smaller
(+)CN28(P), (-)V0 More than 100k Ohm Overload
(-)CN28(P), (+)V0 More than 1k Ohm 0.5V or smaller
(-)CN28(N), (+)V0 More than 100k Ohm Overload
(+)CN28(N), (-)V0 More than 1k Ohm 0.5V or smaller
(+)CN28(P), (-)W0 More than 100k Ohm Overload
(-)CN28(P), (+)W0 More than 1k Ohm 0.5V or smaller
(-)CN28(N), (+)W0 More than 100k Ohm Overload
(+)CN28(N), (-)W0 More than 1k Ohm 0.5V or smaller
