Hitachi UTOPIA RAS-4HVRP2E - Rear Suction Hood

2 Optional parts and installation
Optional parts and installation RAS-(4-6)H(V)(R/N)(C/P)2E
SMGB0136 rev.0 - 07/2021
37
2

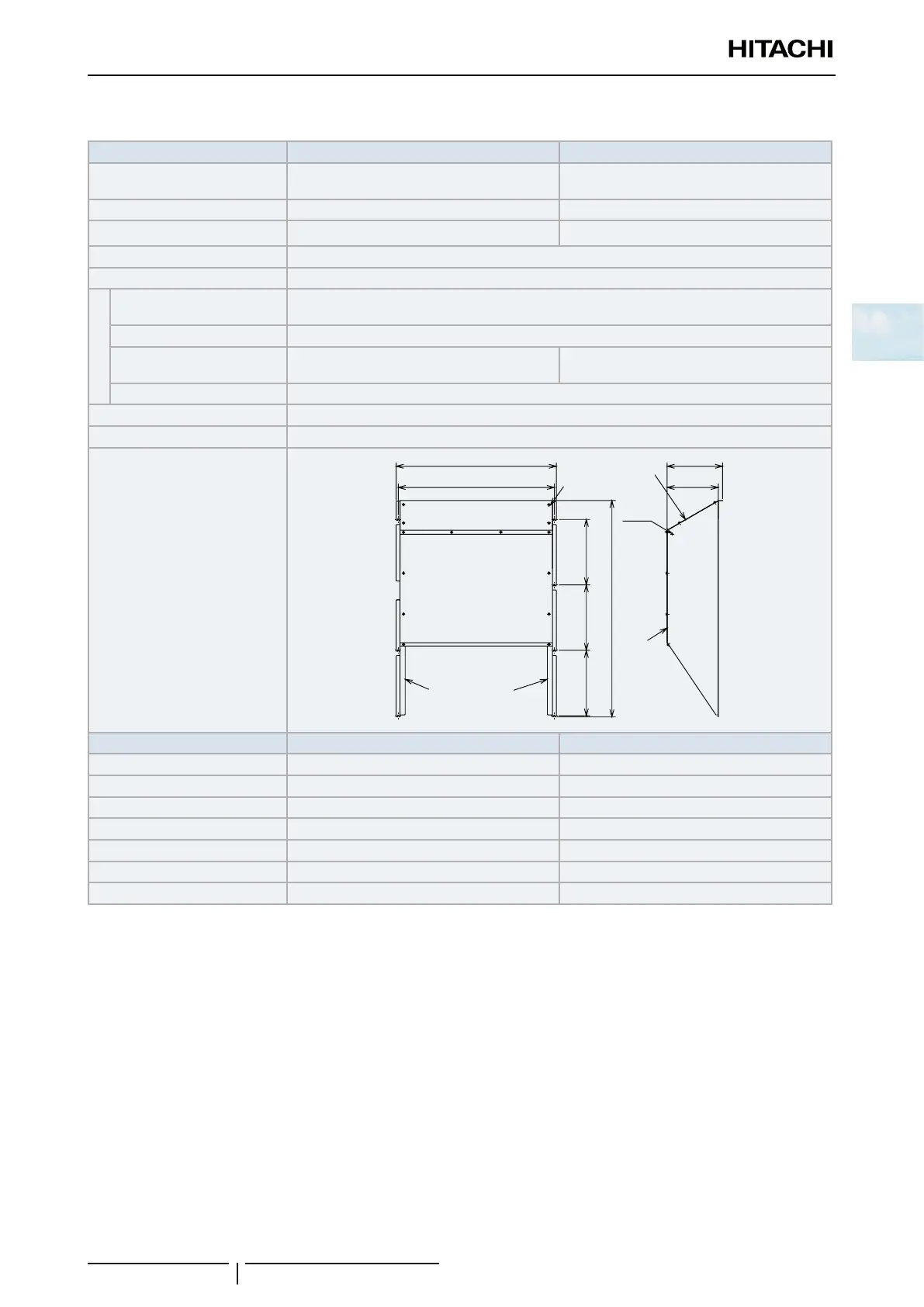

2.2.3.2 Rear suction hood
Product name ASG-SP10BE ASG-SP10BES2
Material Bonderized steel sheet
Stainless
(NSSC 180)
Color Gray (1.0Y8.5/0.5) —
Weight 11 kg 11 kg
Assembling Assembly on site
Components
Hood
For rear side air intake x 1
(Upper side x 1 lower side x 1)
Fixing screw 9 x [M5x12]
Hood xing screw (SUS) 14 x [M5x12] 16 x [M5x14]
Self-screw -
Installation restriction Installation with “Guard net” is not available
Safety wire rope ASG-SW20A (for overturning prevention (optional parts))
2 x 8
783
(763)
(320)(320) (320)
1058
250
271
5
21
4
3
6
Nº Name of parts Quantity
1 Right side plate 1
2 Left side plate 1
3 Upper front panel (Upside) 1
4 Upper front panel (Downside) 1
5 Fixing screw (Accessories) 1
6 Hole for safety wire rope to prevent overturning 10
7 Surface plate (Middle) 1
