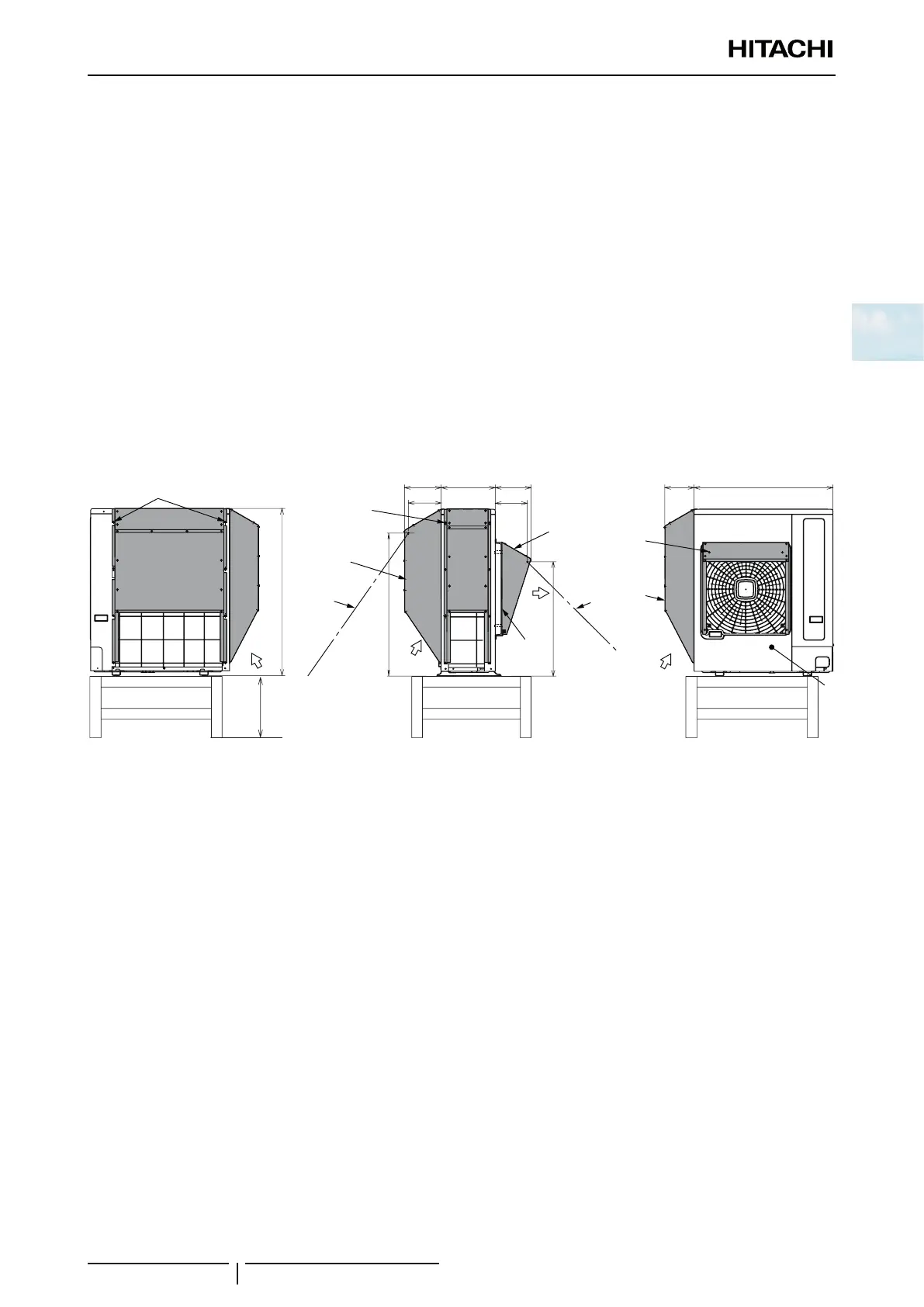

2.2.3.4 Assembly of snow protection hood
A. Rear side
B. Left side
C Front side
1 Fixing screw
2 Rear suction hood
3 Wire rope (optional for over turning protection)
4 Air discharge grille
5 Left suction hood
6 Air discharge hood
7 Outdoor unit
a > Maximum snowfall height
6
4
250 (370)
980
224
245
219
780
200 (950)
1140
3
1
3
5
7
1
1
2
B
A
C
a
? NOTE
The holes locations marked with a mark shall be made by using self screw (M4X13) and later shall be used SUS Screw for xing protec-
tion hood.
