Hitachi UTOPIA RAS-4HVRP2E - Left Suction Hood

2 Optional parts and installation
Optional parts and installation for RAS-3HVRC2
SMGB0136 rev.0 - 07/2021
32

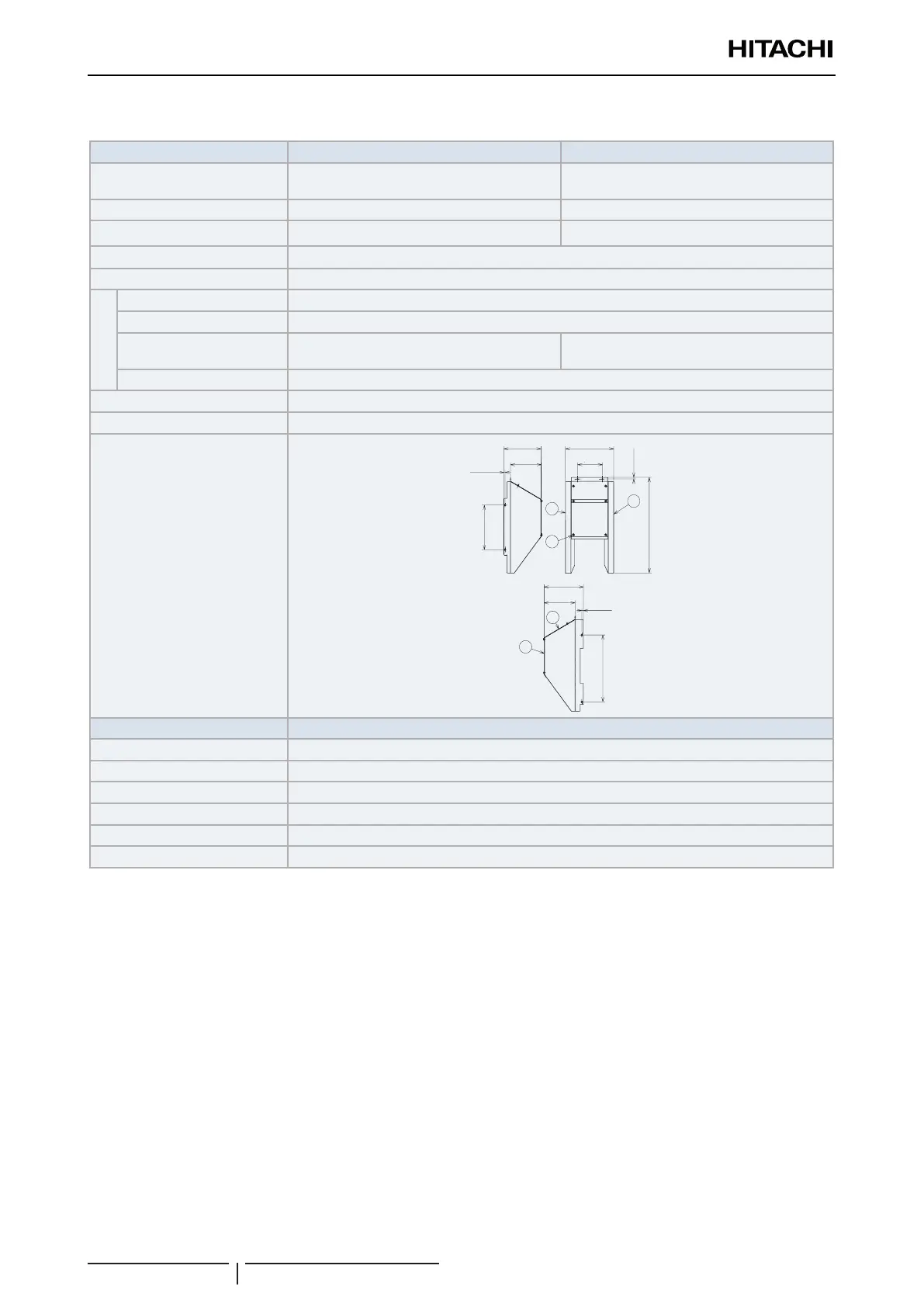

2.1.3.3 Left suction hood
Product name ASG-SP10LTB ASG-SP10LTBS
Material Bonderized steel sheet
Stainless
(NSSC 180)
Color Gray (1.0Y8.5/0.5) —
Weight 2.5 kg 2.5 kg
Assembling Assembly on site
Components
Hood For left side air intake x 1
Fixing screw 6 [M5x12]
Hood xing screw (SUS) 6 x [M5x12] 8 x [M5x14]
Self-screw 2 (M4x13)
Installation restriction Installation with “Guard net” is not available
Safety wire rope ASG-SW20A (for overturning prevention (optional parts))
2
1
3
4
5
240 312
253
200
200
(160)
(7.5)
(10)
(280)
(421)
(10)
(602)
Nº Name of parts
1 Right plate
2 Left plate
3 Upper front panel (Upside)
4 Upper front panel (Downside)
5 Fixing screw (accessory)
6 -
