9 Servicing
RAS-(4-6)H(V)(R/N)(C/P)2E
SMGB0136 rev.0 - 07/2021
208
1
2
2
! CAUTION
Toconnectwiringatreassembling,ensurethattheterminalnumbersandwiringmarkbandcodesarematched.Ifconnectionsarewrong,
thereisthepossibilityofwrongoperationandtocausedamagetoelectricalparts.
6 Connect all the wiring connected to the control PCB and x it as it was originally.
7 Close the electrical box according to the item “Opening/ClosingElectricalbox(Pplate)”.


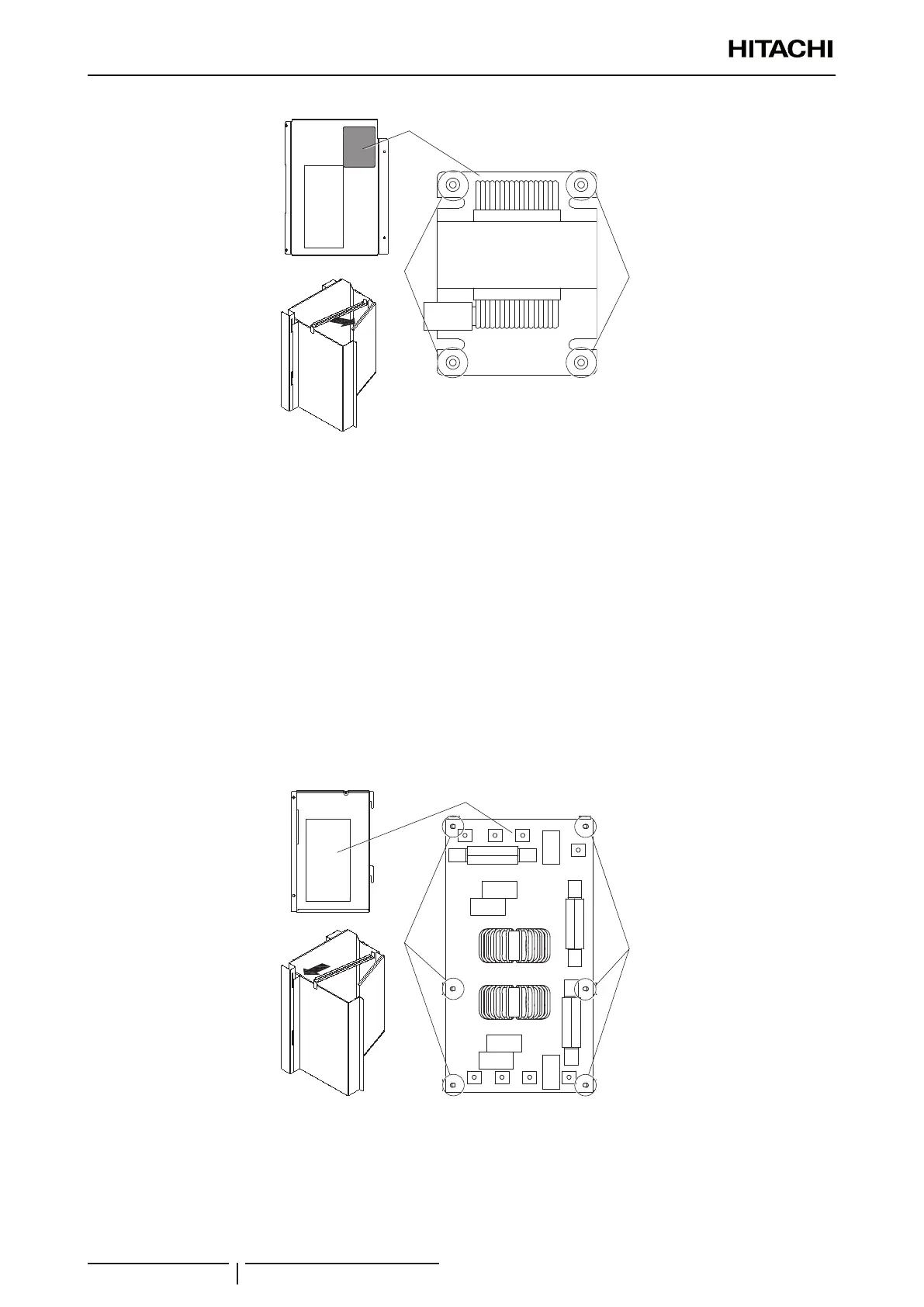

Disassembly / Assembly the Noise lter
1 Open the electrical box according to the item “Opening/ClosingElectricalbox(Pplate)”.
2 Disconnect the wirings of Noise lter:
- T1 - L1
- T2 - L2
- T3 - L3
- N - N
4 Remove the 6 xing holders -2- and disassembly the Noise lter -1-.
5 Assembly the new Noise lter -1- and x it with 6 holders -2-.
1
2
2
? NOTE
Toconnectwiringatreassembling,ensurethattheterminalnumbersandwiringmarkbandcodesarematched.Ifconnectionsarewrong,
thereisthepossibilityofwrongoperationandtocausedamagetoelectricalparts.
6 Connect all the wiring connected to the noise lter and x it as it was originally.
7 Close the electrical box according to the item “Opening/ClosingElectricalbox(Pplate)”.
