User manual C4 – C6
11

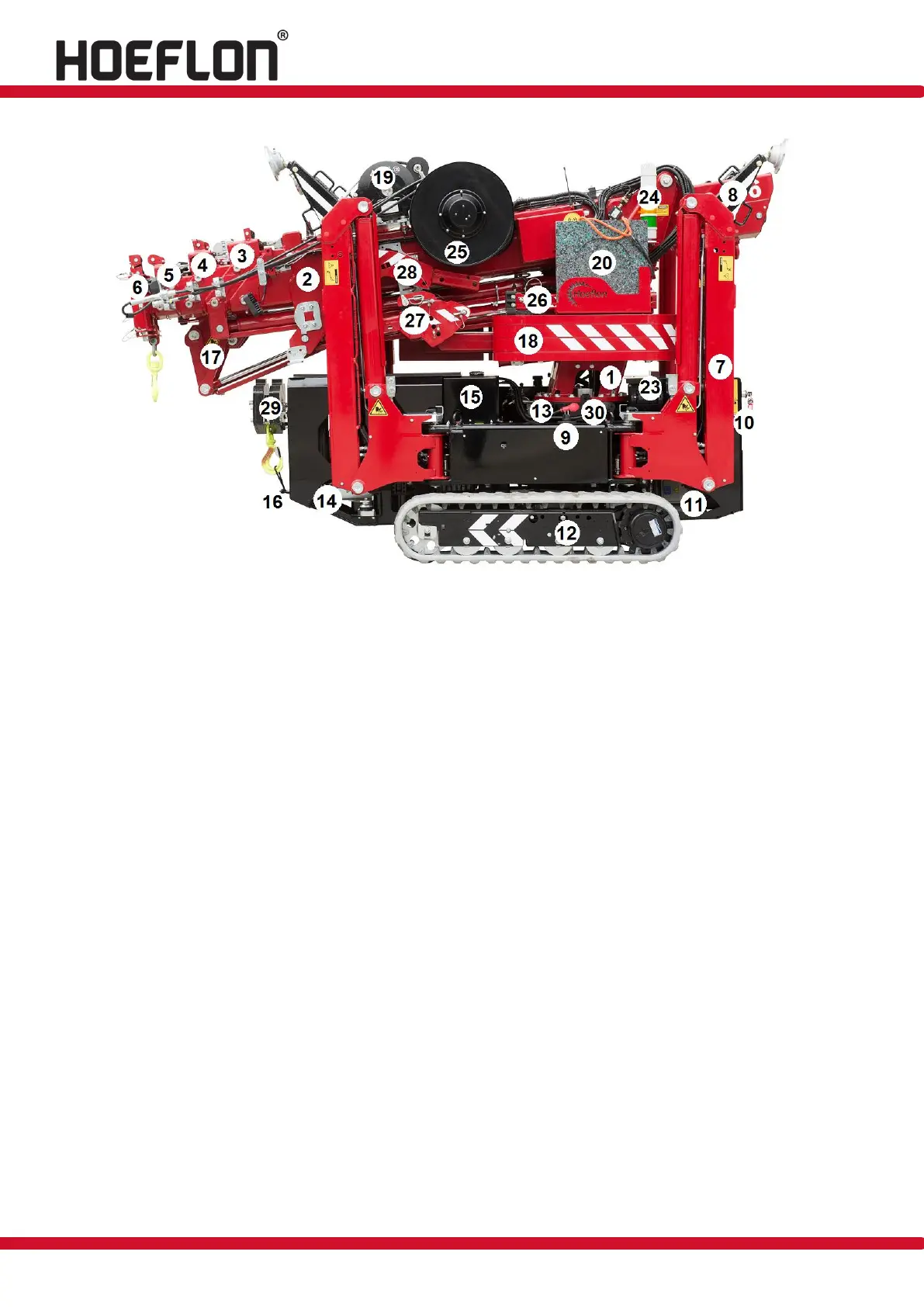

Figure 2: Left-side view C6
1 Crane column
17 Jib
2 Boom 1
18 Ballast (thinner on the C4)
3 Extension boom 1
19 Hoisting winch
4 Extension boom 2
20 Outrigger pads
5 Extension boom 3
21 Toolbox
6 Extension boom 4 (C6 only)
22 Hydraulic oil tank
7 Outrigger leg
23 Battery charger (for transmitter battery)
8 Outrigger leg extension
24 Signal column
9 230V connection
25 Hydraulic/electric reel
10 Electrical cabinet
26 Manual jib extension
11 Electric motor
27 30° section
12 Track undercarriage
28 Winch head
13 Turntable
29 Winch weight
14 Engine (Yanmar/Honda)
30 Start assistance terminals
15 Battery
31 Diesel fuel tank (for Yanmar engine)
16 Drawbar eye
