6.4.1. Sequence of operations for starting crane.
 Ensure that all the control levers are in the ‘0’ position.
 Ensure that the crane is collapsed and unloaded.
 Turn the key switch on the electrical cabinet to position 1
(see figure 30).
 Switch on the transmitter (figure 39), button .
 Push the button (figure 39, ) on the transmitter to
activate the receiver; the receiver is now activated.
 Start the Honda engine as follows:
o Open the fuel shut-off (see figure 32).
o Close the choke lever for a cold start (see figure
33). For a restart/warm engine the choke lever
may be left in the open position.
o Set the throttle control to 1/3 open (see figure 34).
o Set the ignition switch on the engine to the 1/ON
position (see figure 35).
o Start the engine by pressing the button on
the transmitter.
o The Honda engine can also be started using the
ignition switch on the engine itself (see figure 35).
o Use the pull cord (see figure 36) if the electric start
does not function.
o Once the engine is running and if you had the choke
in the CLOSED position for a cold start, gradually move
the choke to the OPEN position as the engine warms up
(see figure 33).
 Start the Yanmar engine as follows:
o For a cold start, the engine must first be preheated. Hold the button pressed on
the transmitter (see figure 39).
o Once the preheat is complete, start the Yanmar engine using the transmitter (see figure
39, button ).

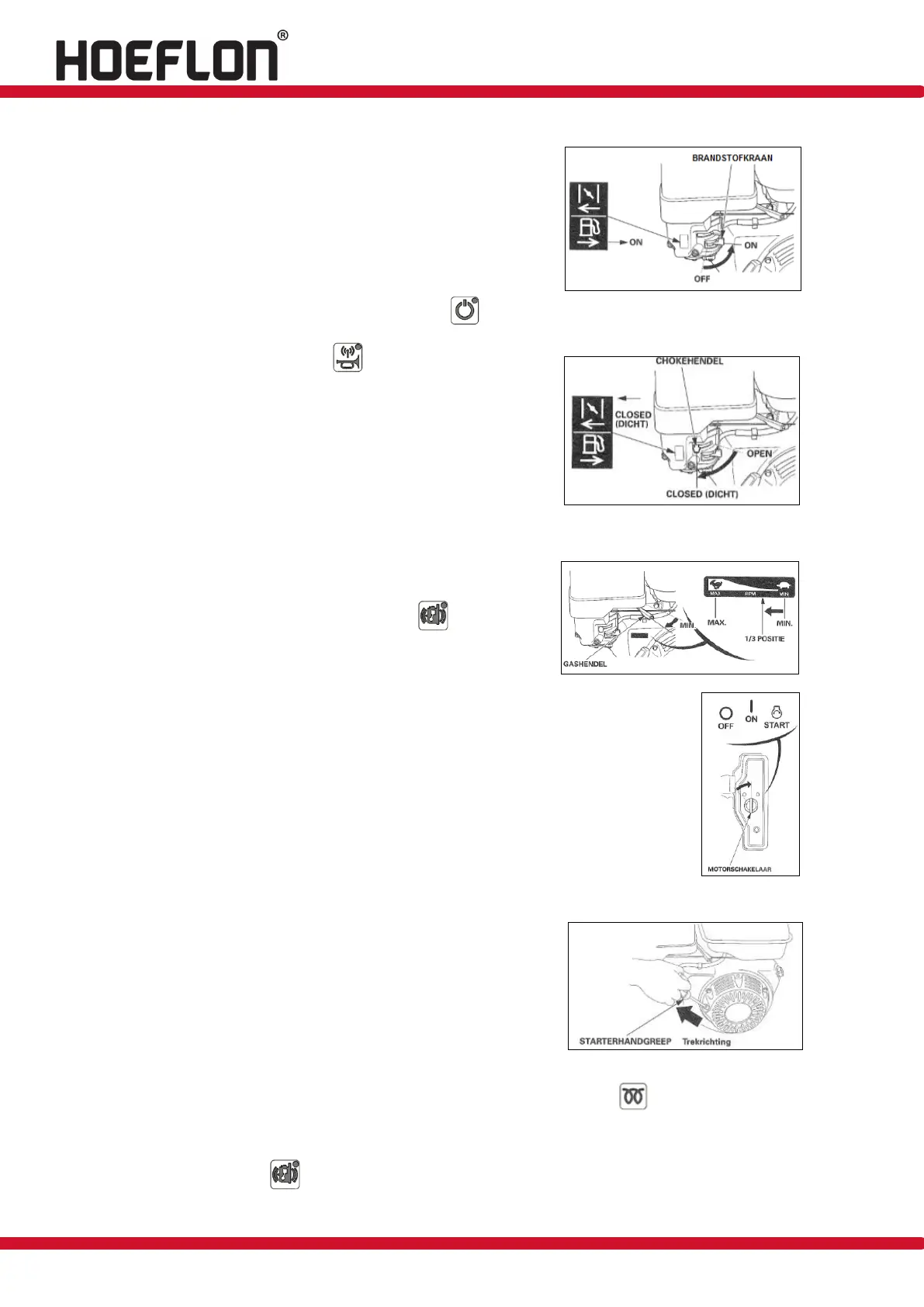

Figure: 32
Figure: 33
Figure: 34
Figure: 36
Figure: 35
