User manual C4 – C6
92

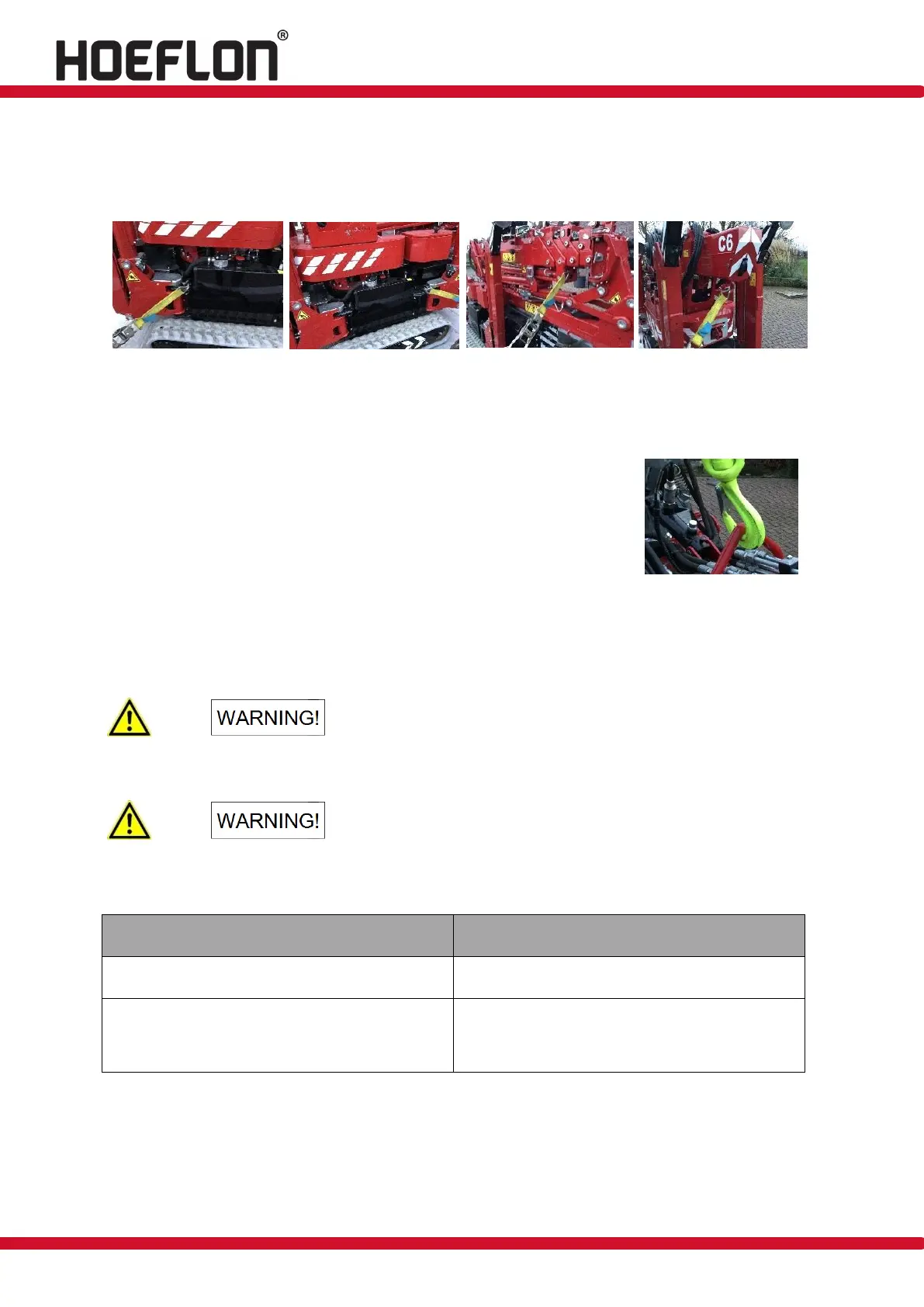

Secure the machine by attaching four lashing straps to the holes in the outrigger leg hinge
plates. The machine can also be secured by attachment to the crane column (see figures 117,
118, 119 and 120).
Figure: 117 Figure: 118 Figure: 119 Figure: 120
Make sure the outriggers are fully retracted and locked in position and that the crane is fully
collapsed.
There must not be any load on the compact crane.
Lift the compact crane using lifting straps or chain slings with a
capacity of at least 3000 kg. Fasten these to the lifting point on the
boom (see figure 112).
Figure: 121
8.1.2. Securing
Overloaded eyes can cause damage to the machine.
Therefore always heed the following instructions.
Folding a lashing strap double also doubles the
applied tension.
Lashing points on undercarriage
Lashing points on superstructure
Front max. 1500 kg per eye
Rear max. 2500 kg per eye
Towards the front and sides, lash down at least 0.5x the machine's weight; towards the rear
lash down at least 1x the machine's weight.
It is recommended that the space between the headboard of the transport vehicle and the
front of both tracks be filled, in connection with braking forces. Otherwise, use lashing
provisions that can hold at least 1.5x the machine's weight at the rear.
