User manual C4 – C6
59

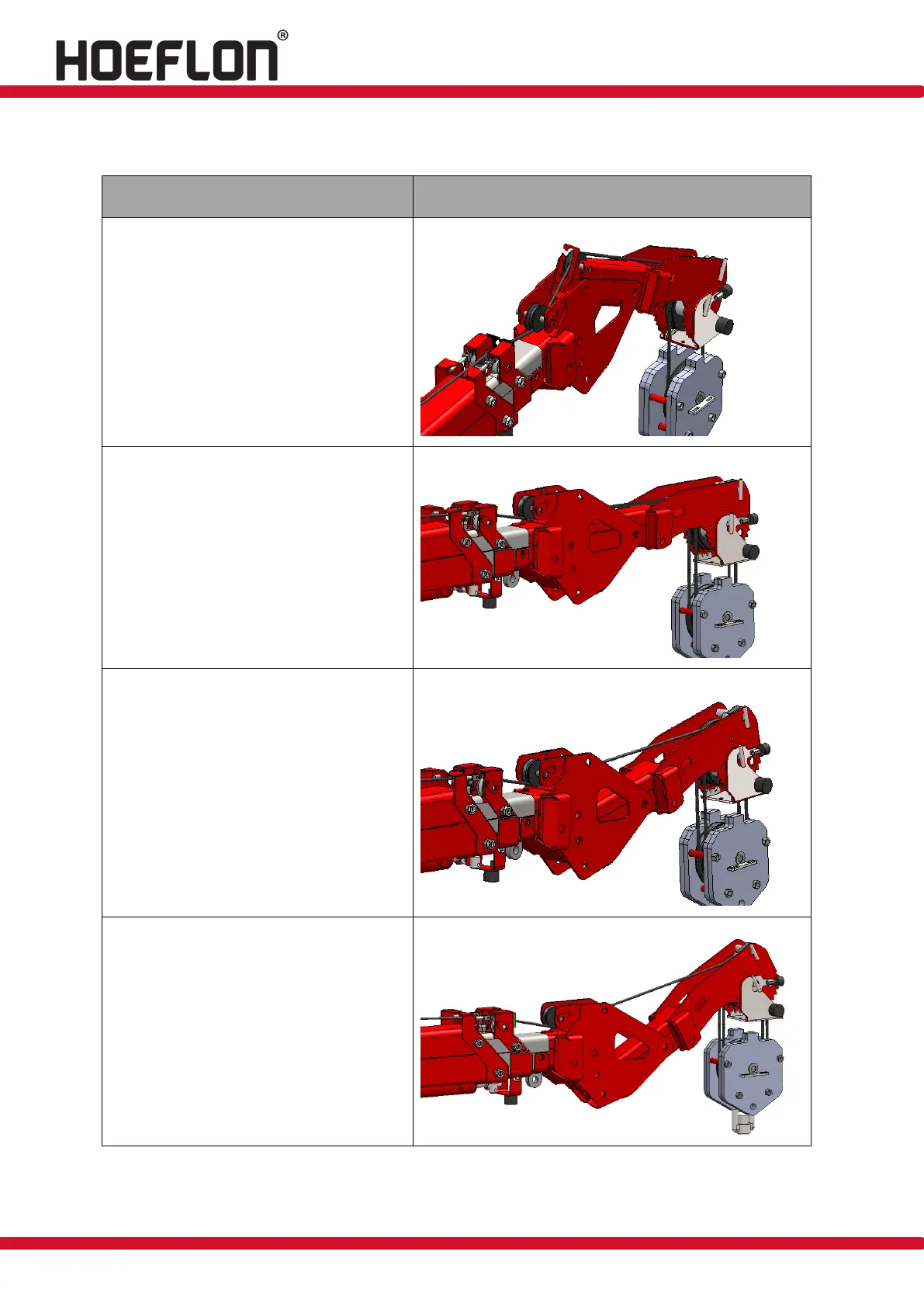

6.7.5. Positions of winch head in 30° section when used with jib
Jib
Winch head in top hole.
See the adjacent figure for the cable
routing.
Cable under auxiliary pulley of the 30°
section and over auxiliary pulley at rear of
winch head, to large cable sheave in
winch head.
Winch head in 2
nd
hole.
See the adjacent figure for the cable
routing.
Cable under auxiliary pulley of the 30°
section through to large cable sheave in
winch head.
Winch head in 3
rd
hole.
See the adjacent figure for the cable
routing.
Cable under auxiliary pulley of the 30°
section through to large cable sheave in
winch head.
Winch head in bottom hole.
See the adjacent figure for the cable
routing.
Cable under auxiliary pulley of the 30°
section through to large cable sheave in
winch head.
