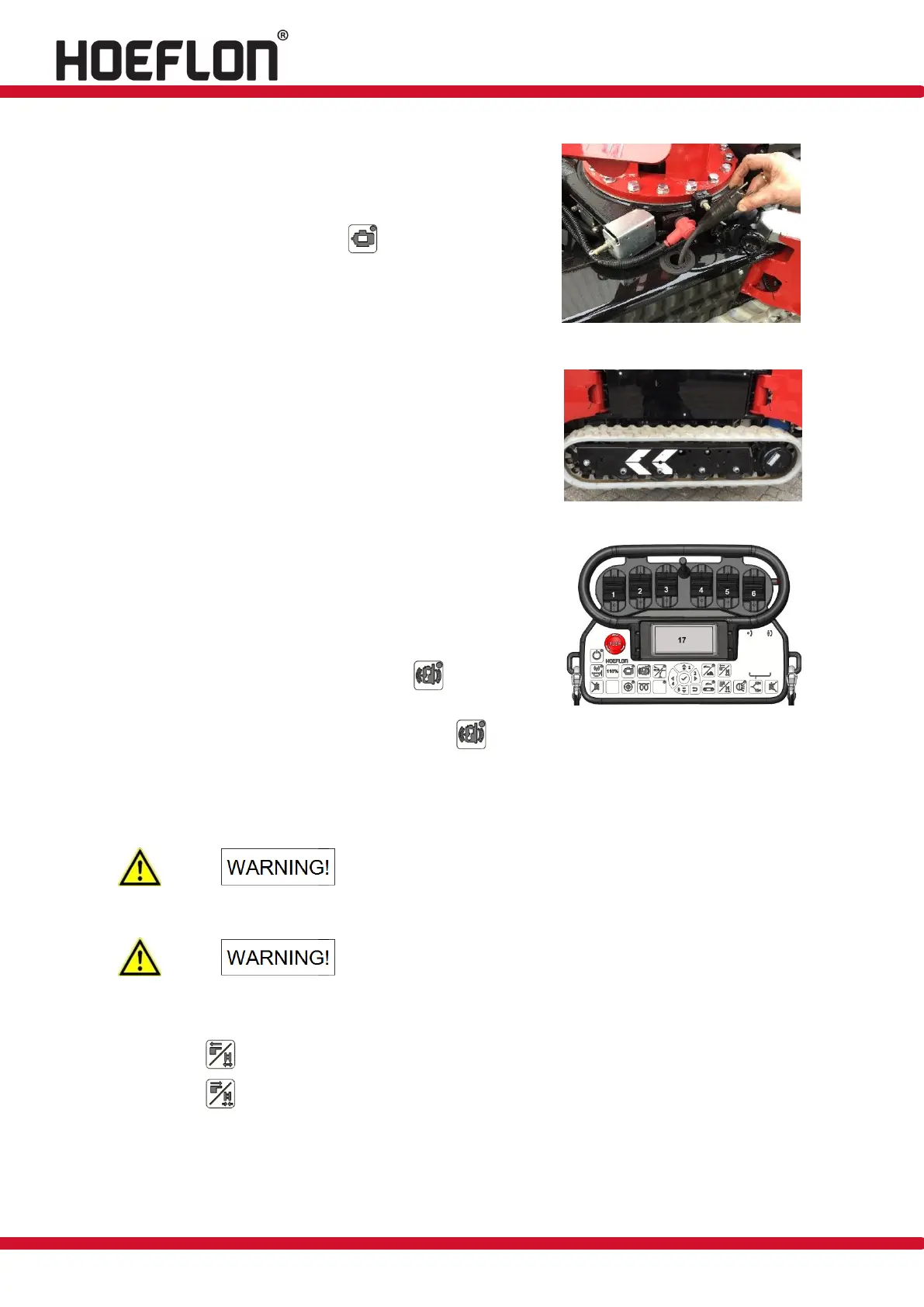

User manual C4 – C6
42
 Start the electric motor as follows:
o Connect a power cable to the socket provided for
this purpose (see figure 37).
o Switch on the electric motor on the remote control
(see figure 39, button ).
o Use a power supply cable with a conductor cross
section of at least 2.5 mm
2
, and for optimal
operation use a cable with a maximum length of
25 m.
 Operate levers 3 and 4 on the transmitter at the same time
to drive in the direction indicated by the arrow and
operate just one lever to steer.
 The driving direction is indicated by an arrow on the
crawler track undercarriage (see figure 38).
 Use the throttle control (see figure 34) to increase the
speed of the Honda engine. The Yanmar runs at a standard
speed or, optionally, the speed is controlled by an actuator.
With an actuator the speed is automatically increased
when a function is operated.
 Stop the compact crane by releasing the levers; they return
to the centre position automatically.
 Stop the Honda engine by putting the throttle control in
the MIN position and then pressing the button on the
transmitter (see figure 39).
 Stop the Yanmar engine from the transmitter (see figure 39).
6.4.2. Setting track width
Make sure the compact crane is standing on the
outriggers so that the crawler tracks are able to move
freely.
Avoid contact with the outrigger legs due to risk of
entrapment!
 First raise the crane on the outriggers.
 Press the button on the transmitter (figure 39) to extend the tracks.
 Press the button on the transmitter (figure 39) to retract the tracks.
 Use only the maximum and minimum settings when configuring the crawler track width.
Figure: 37
Figure: 38
Figure: 39
