6.5.3. Nodding outrigger legs option.
Nodding outrigger leg
 The nodding outrigger leg option is operated by removing the locking pin from the nodding
tube (see figure 44).
 Then the nodding section is manually pulled out all the way to the end stop (see figure 45).
 Next the nodding section can be lowered (see figure 46).
 Now the locking pin must be fitted again (see figure 47).

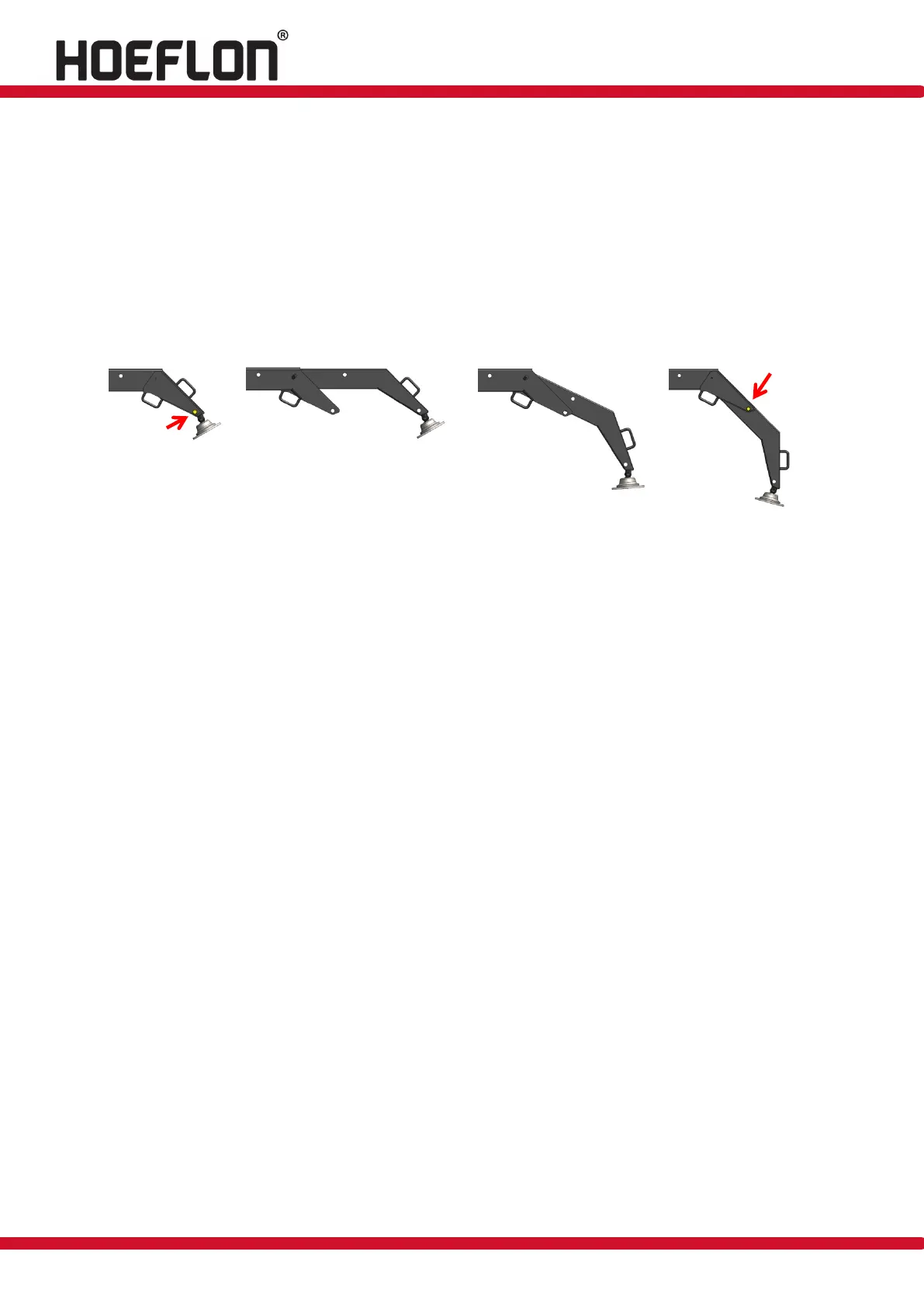

Figure: 44 Figure: 45
Figure: 46 Figure: 47
