User manual C4 – C6
49

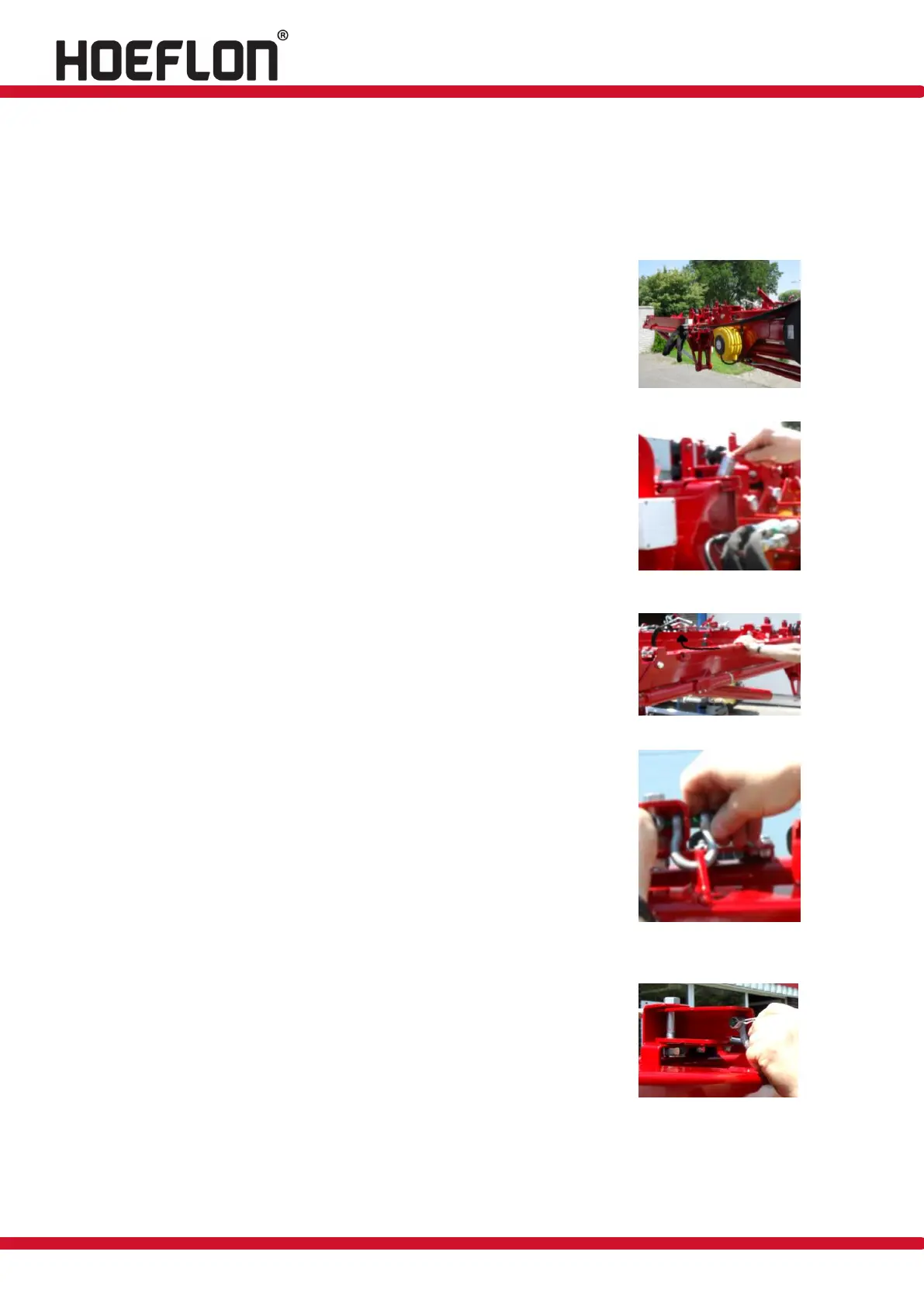

6.6. Attachment/Removal
6.6.1. Jib
Removing the jib:
Position the boom and jib as shown in figure 49. Make sure the
boom is positioned slightly above horizontal. This makes the jib
easier to turn.
Figure: 49
Remove the two pins from the left-hand side of the hinged
section of the jib (see figure 50).
Figure: 50
Rotate the jib 180° (see figure 51).
Figure: 51
Secure the D-shackle on the main boom to the eye on the jib
(figure 52). Raise the jib when you do this, until it can be secured
in the D-shackle. Secure the D-shackle (see figure 53).
The jib is now suspended in the D-shackle and can be moved
easily.
Figure: 52
Remove the two pins from the right-hand side of the hinged
section of the jib. Lower the jib when you do this so that it is
easier to remove the pins.
Figure: 53
