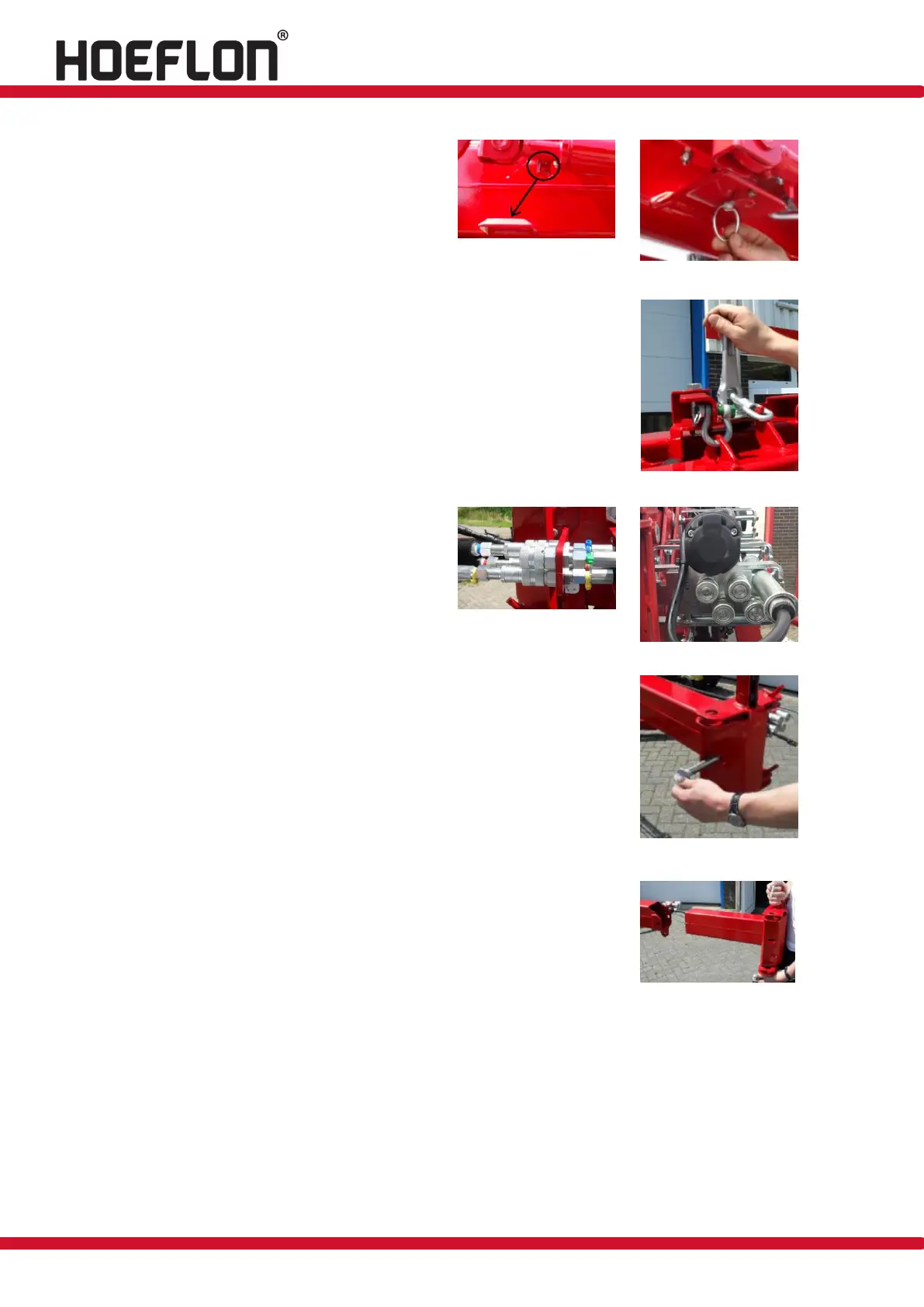

Use the shaft on the underside of the
boom to guide the jib into the appropriate
section of the main boom (figure 54) and
secure it in position (figure 55).
Figure: 54
Figure: 55
Secure the lever on the hook on the jib and lock it into place (figure
56).
Figure: 56
Disconnect the hydraulic hoses (figure 57)
and the power plug (figure 58). Secure the
loose hoses to the jib.
Figure: 57
Figure: 58
The fixed section of the jib can be removed from the main boom, if
necessary, by removing the pin (figure 59) and manually pulling the
section out of the main boom (figure 60). It is also possible to work
with the compact crane if the fixed section of the jib is still in the
boom.
Figure: 59
To install the jib, perform the steps in reverse order.
Do not forget to secure the pins!
Figure: 60
