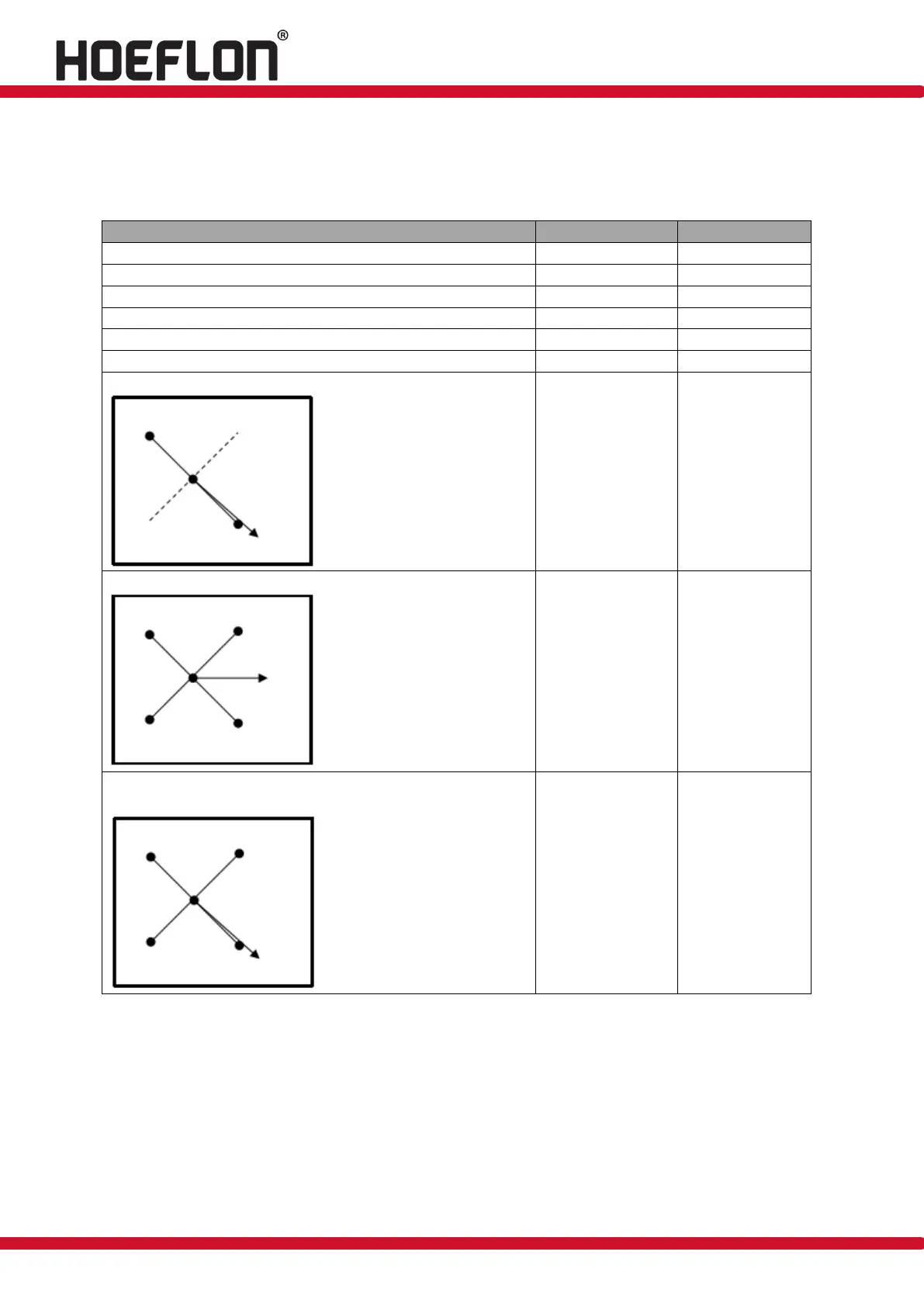

9.3. Outrigger force
Maximum outrigger force C4 and C6
Crane type
C4
C6
Outrigger radius
2400 mm
2400 mm
Outrigger angle
4x 48.5 degrees
4x 48.5 degrees
Outrigger length
Extended
Extended
Ballast weight
Extended
Extended
Maximum lifting capacity
2350 kg
3000 kg
Net weight
2000 kg
2850 kg
Maximum outrigger force in the most unfavourable position
2450 kg
3300 kg
Minimum outrigger force
1600 kg
2150 kg
Maximum outrigger force with outriggers in square
configuration
1900 kg
2600 kg
