User manual C4 – C6
57

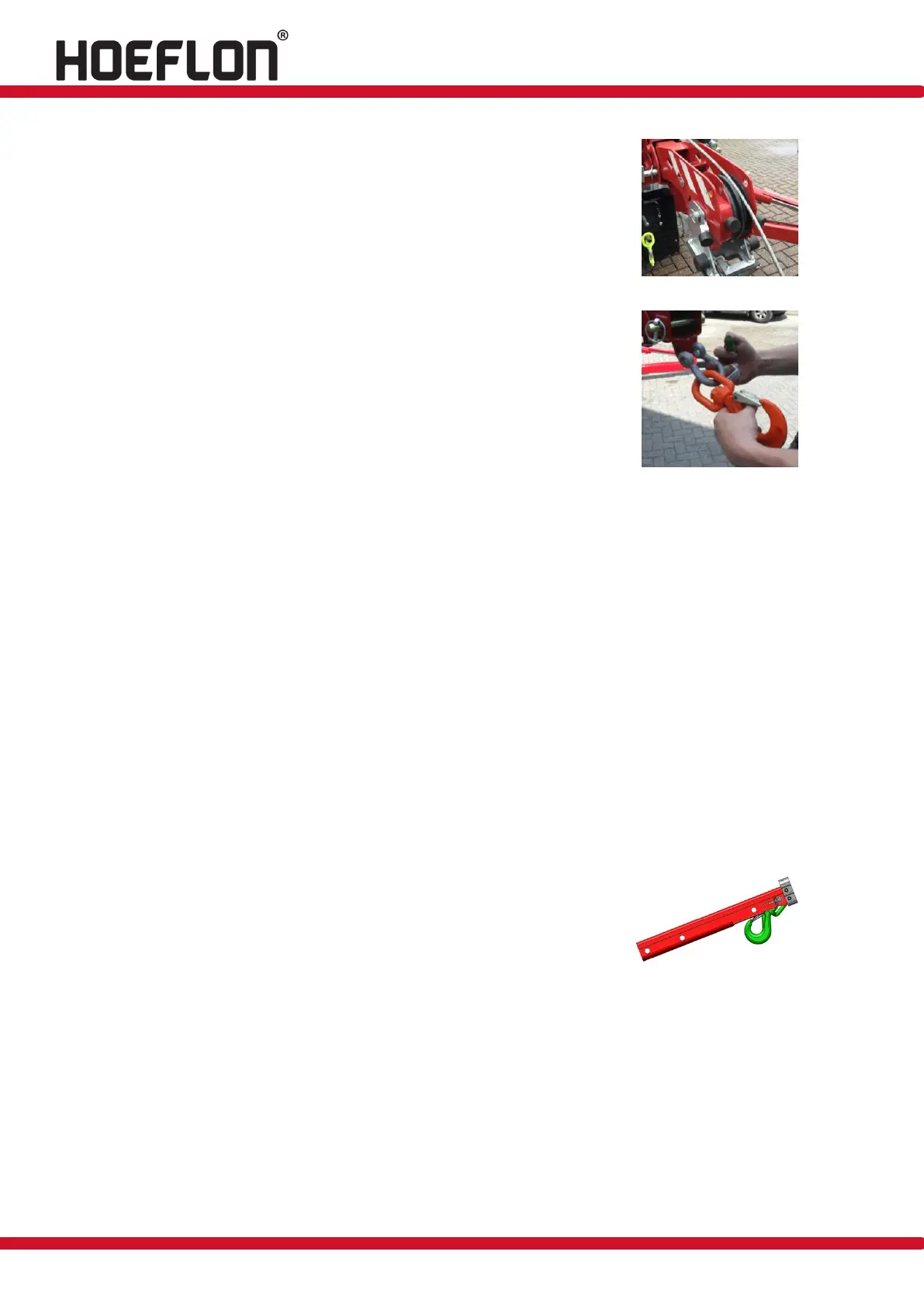

 Pull the cable over the winch head (see figure 76) and follow the steps
described above.
 To remove the winch cable, perform the steps in reverse order. Make
sure that the winch cable is rolled tightly by holding the cable firmly
while rolling.
Figure: 76
 After removing the winch, connect a hook to a D-shackle if required
(see figure 77). Insert pin and lock in position.
 For operation of the crane and winch, see sections 6.3 and 6.5.
Figure: 77
6.7.3. Order of operations winch head and manual jib extension plus additional 30 degree
adjustable section.
Preparation
 Make sure the machine is supported on the outriggers, with the tracks just above the ground.
 Make sure the jib is correctly attached to the boom, as described for use of the jib.
 Make sure the attachments have been removed from the boom or jib and stored and secured
in place.
 Make sure the boom and/or jib are horizontal and retracted,
Attaching 30 degree adjustable section
 Remove the 30 degree adjustable section from the boom; fit the retainer back in place. If it will
be used in the boom, mount the boom adapter.
 Mount the 30 degree adjustable section to the boom or jib and lock it with the locking pin.
Secure the pin.
Attaching manual jib extension
 Remove the manual jib extension (figure 78) from the ballast.
 Place the manual jib extension in the jib tube and lock it with the
pin.
 Or place the boom adapter so the manual jib extension can be
placed directly in the boom and lock it with the locking pin.
Figure: 78
Attaching manual jib extension along with 30 degree adjustable section.
 Attach the manual jib extension to the 30 degree section with the two pins and secure them.
