User manual C4 – C6
32

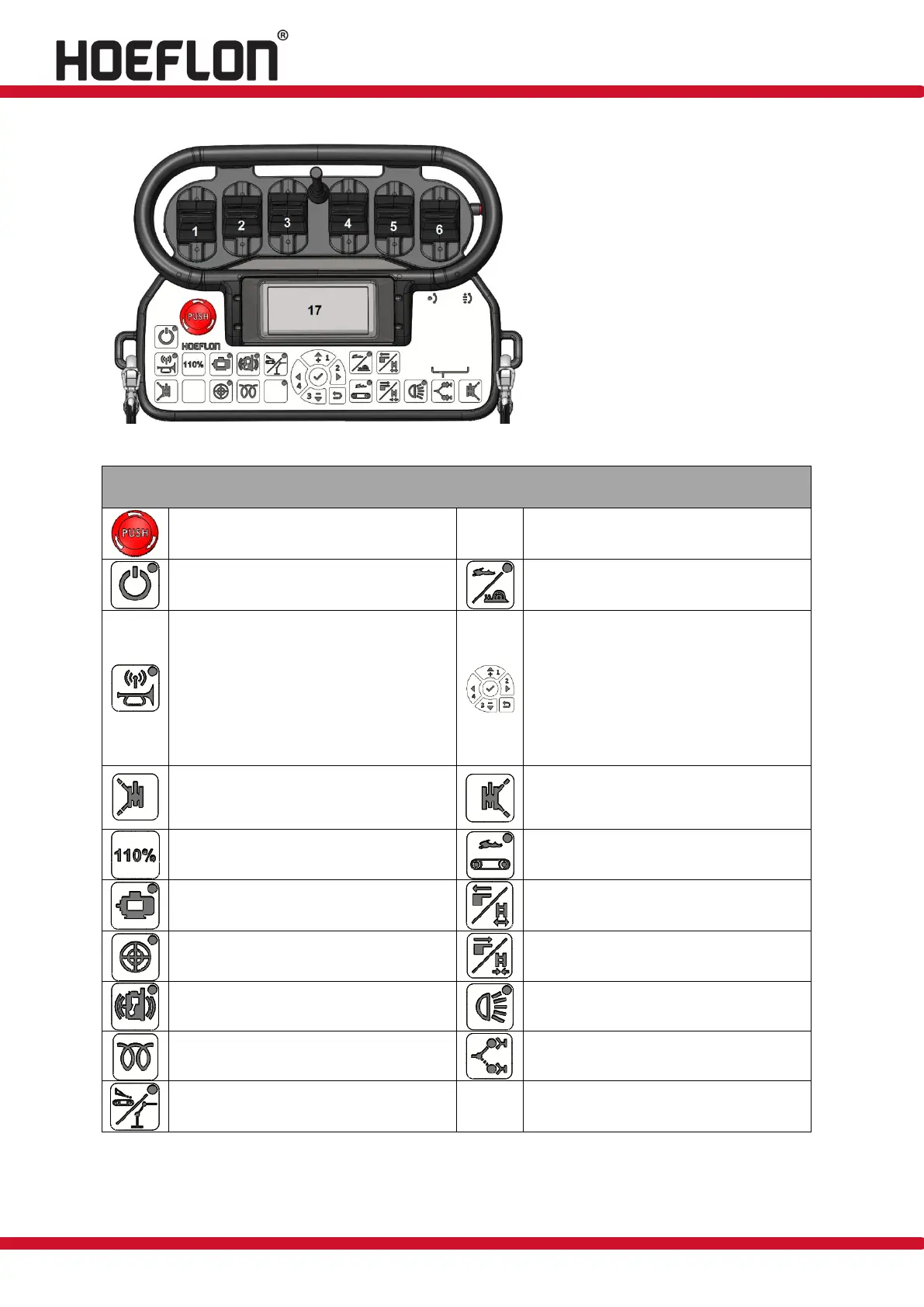

Figure: 19
Buttons
Emergency stop
17
Display
On/off button transmitter
Engage 2nd operating speed
Activate receiver and horn
Control panel display:
✓ Confirmation button
 Up arrow
 Right arrow
 Down arrow
 Left arrow
 Back button
Release left outriggers for swinging
in/extending together with lever 1
(front outrigger) and 2 (rear outrigger)
Release right outriggers for swinging
in/extending together with lever 5
(rear outrigger) and 6 (front outrigger)
Increase crane capacity to 110% for 30
seconds
Engage 3rd driving speed (only with
pick-and-carry option)
On/off button electric motor
Tracks (ignition in position 1)
extend ballast (ignition in position 2)
Not used
Tracks (ignition in position 1)
retract ballast (ignition in position 2)
On/off button Yanmar diesel engine
Worklight (optional)
Preheat button Yanmar diesel engine
Not used
Crane/drive selector (only with pick-
and-carry option)
